5905-01-231-5147
Nonprecision Wire Wound Variable Resistor
5905012315147 012315147 BB6-4111
A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION. View more Nonprecision Wire Wound Variable Resistor
May 2023
6
Marketplace 5905-01-231-5147
Request a Quotation from participating marketplace vendors
Related Documents 5905-01-231-5147 3+ Documents (More...)
BUY NE FedMall Updated Every Day 5905-01-231-5147 RQST NE Updated Every Day 5905-01-231-5147 RQST
Updated Every Day 5905-01-231-5147 RQST NE Related Documents 5905-01-231-5147 3+ Documents ( More...
Nonprecision Wire Wound Variable Resistor United States (US) 4. 5905-01-231-5147 Marketplace Restrictions
Approved Sources Datasheet Management BUY NE FedMall Updated Every Day 5905-01-231-5147 RQST NE Updated
Updated Every Day 5306-14-231-5147 RQST Updated https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-01-231-5147
Nonprecision Wire Wound Variable Resistor Updated Every Day 5905-01-231-5147 RQST NE Updated https
Restrictions 5905-01-231-5147
5905-01-231-5147 is a Nonprecision Wire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5905-01-231-5147
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-231-5147
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
Approved Sources 5905-01-231-5147
- Part Number
- Manufacturer
- Status
- BB6-4111
- Manufacturer
- 77776 - Rex Rheostat And Co Inc (Obsolete)
- Original Design
- Original Design
Datasheet 5905-01-231-5147
- Characteristic
- Specifications
- FIIG
- Specifications
- A002A0
- Electrical Resistance Per Section [CQCC]
- 70.0 Ohms All Sections
- Actuator Travel Control Feature [CRSX]
- Stops
- Actuator Type [AEFD]
- Slider
- Ambient Temp In Deg Celsius Per Section At Full Rated Power [CSDH]
- 25.0 All Sections
- Ambient Temp In Deg Celsius Per Section At Zero Percent Rated Power [CQGN]
- 280.0 All Sections
- Body Height [ADAU]
- 5.600 Inches Nominal
- Body Length [ADAQ]
- 21.800 Inches Nominal

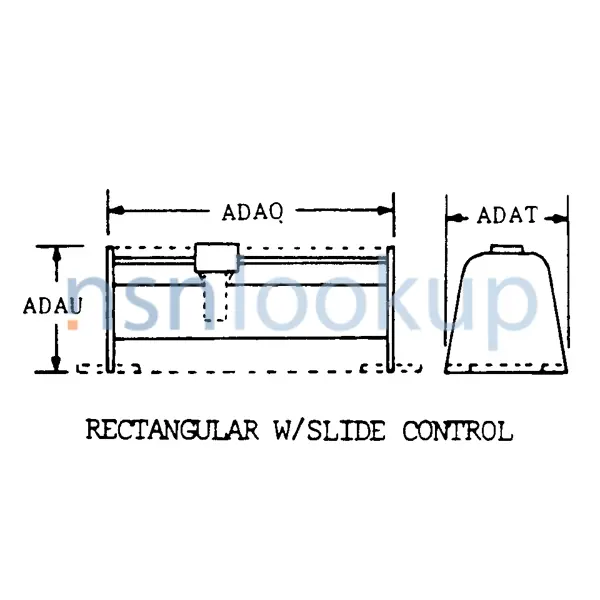

- Body Style [AAQL]
- Rectangular W/Slide Control
- Body Width [ADAT]
- 7.250 Inches Nominal
- Cubic Measure [CBME]
- 885.080 Cubic Inches
- End Item Identification [AGAV]
- An/Tsc-99
- Mounting Facility Quantity [AKPV]
- 4
- Mounting Method [AXGY]
- Slot
- Mounting Slot Width [ABTD]
- 0.250 Inches Nominal
- Overall Height [ABKW]
- 5.600 Inches Nominal
- Overall Length [ABHP]
- 21.800 Inches Nominal
- Overall Width [ABMK]
- 7.250 Inches Nominal
- Longitudinal Actuator Effective Electrical Stroke Length [AEFW]
- 20.500 Inches Nominal
- Longitudinal Actuator Travel [AEFT]
- 20.500 Inches Nominal
- Power Dissipation Rating Per Section In Watts [CRGD]
- 2000.0 Free Air All Sections
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance Per Section In Percent [CRSS]
- -10.0 To 10.0 All Sections
- Section Quantity [AAPN]
- 2
- Terminal Location [APXH]
- Front-Rear
- Terminal Type And Quantity [TTQY]
- 8 Binding Post
DLA Procurement Analysis 5905-01-231-5147
Management Data 5905-01-231-5147
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5905-01-231-5147
Freight Information 5905-01-231-5147
5905-01-231-5147 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-01-231-5147 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-01-231-5147 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-01-231-5147 is not classified as a special type of cargo when transported by water. 5905-01-231-5147 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-01-231-5147
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5905-01-231-5147 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
