5905-01-203-8072
Motor Driven Variable Resistor
5905012038072 012038072 70301-02109-102 U-307133
A resistor, whose resistance value is controlled by an electric motor, which is coupled to the resistor shaft by a friction type clutch. View more Motor Driven Variable Resistor
Managed by United States
NSN Created on 20 Mar 1985
Data Last Changed
November 2023
November 2023
NATO Update Count
24
24
NATO Data Quality
Marketplace 5905-01-203-8072
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
70301-02109-102 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS
U307133 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS
U-307133 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS
70301-02109-102 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS
U-307133 RESISTOR,VARIABLE,MOTOR DRIVEN 2 EA NS
70301-02109-102 RESISTOR,VARIABLE,MOTOR DRIVEN 3 EA NS
Updated 20 Days Ago
U-307133 RESISTOR 1 EA NS
70301-02109-102 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS
5905-01-203-8072 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS
U-307133 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS
70301-02109-102 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS
Updated Every Day 5905-01-203-8072 RQST NE
Updated Every Day 5905-01-203-8072 RQST
Updated Every Day 5905-01-203-8072 RQST NE
Related Documents 5905-01-203-8072 5+ Documents (More...)
70301-02109-102 U-307133 A resistor, whose resistance value is controlled by an electric motor, which
U-307133 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS Request Quotation 70301-02109-102 RESISTOR,VARIABLE,MOTOR
U-307133 RESISTOR,VARIABLE,MOTOR DRIVEN 2 EA NS Request Quotation 70301-02109-102 RESISTOR,VARIABLE,MOTOR
U-307133 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS Request Quotation 70301-02109-102 RESISTOR,VARIABLE,MOTOR
U-307133 RESISTOR,VARIABLE,MOTOR DRIVEN 2 EA NS Request Quotation 70301-02109-102 RESISTOR,VARIABLE,MOTOR
01-102-9028Motor Driven Variable Resistor5905011029028 011029028 Cancelled - Replaced by NSN 5905-01-203-8072
Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 70301-02109-102
RESISTOR,VARIABLE,MOTOR DRIVEN RQST NS Request Quotation Subscribe to View Vendor Details... 70301-02109-102
Quotation from participating marketplace vendors Request Subscribe to View Vendor Details... 70301-02109-102
RESISTOR,VARIABLE,MOTOR DRIVEN RQST NS Request Quotation Subscribe to View Vendor Details... 70301-02109-102
142834888307133 NumberManufacturerStatus307133 F8224 https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-01-203-8072
Motor Driven Variable Resistor 5905012038072 U-307133 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS Request
Quotation 70301-02109-102 RESISTOR,VARIABLE,MOTOR U-307133 RESISTOR 1 EA NS Request Quotation Subscribe
Motor Driven Variable Resistor 5905012038072 U-307133 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS Request
Quotation 70301-02109-102 RESISTOR,VARIABLE,MOTOR U-307133 RESISTOR 1 EA NS Request Quotation Subscribe
NVDiscontinued Without ReplacementDefense Logistics https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-01-203-8072
Motor Driven Variable Resistor 5905012038072 U-307133 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS Request
Quotation 70301-02109-102 RESISTOR,VARIABLE,MOTOR U-307133 RESISTOR 1 EA NS Request Quotation Subscribe
Motor Driven Variable Resistor 5905012038072 U-307133 RESISTOR,VARIABLE,MOTOR DRIVEN 1 EA NS Request
Quotation 70301-02109-102 RESISTOR,VARIABLE,MOTOR U-307133 RESISTOR 1 EA NS Request Quotation Subscribe
01-389- 3968Gasket5330013893968 013893968 307133 https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-01-203-8072
Restrictions 5905-01-203-8072
5905-01-203-8072 is a Motor Driven Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5905-01-203-8072
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-203-8072
- US Army (A918)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CT
- US Coast Guard (C911)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- C007
- Supplementary Receivers:
- XH
- US Air Force (FXGX)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- FXTX
- US Navy (N9BN)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- Poland (WP01)
- Effective Date:
- 1 May 2007
- Brazil (YA01)
- Effective Date:
- 1 Oct 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Dec 2007
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Mar 2014
- Greece (ZU01)
- Effective Date:
- 1 Jul 2005
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Nov 2012
Approved Sources 5905-01-203-8072
- Part Number
- Manufacturer
- Status
- 70301-02109-102
- Manufacturer
- 78286 - Sikorsky Aircraft Corporation (Active)
- Source Control
- Source Control
- U-307133
- 54395 - Electromech Technologies Llc (Active)
- Primary Buy
- Primary Buy
- U-307133
- 82686 - Transicoil Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-01-203-8072
- Characteristic
- Specifications
- FIIG
- Specifications
- A502H0
- Section Quantity [AAPN]
- 2
- Resistance Element Type Per Section [CYEG]
- All Sections Wire Wound
- Electrical Resistance Per Section [CQCC]
- 2.55 Kilohms All Sections
- Power Dissipation Rating Per Section In Watts [CRGD]
- 1.0 Free Air All Sections

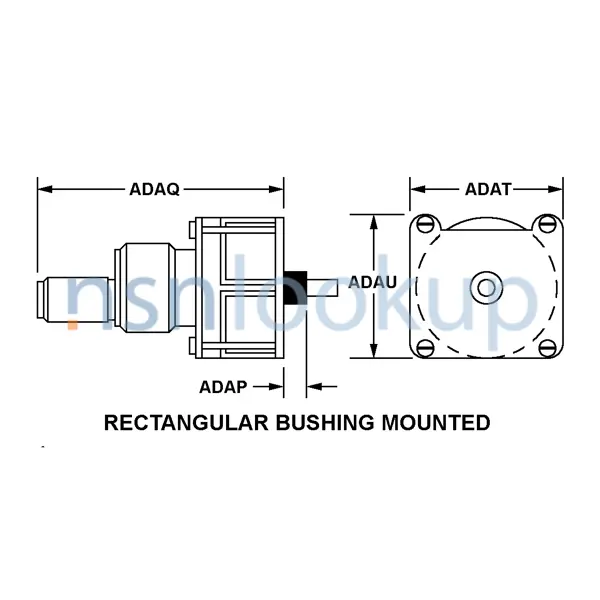

- Body Style [AAQL]
- Rectangular Bushing Mounted
- Body Length [ADAQ]
- 4.390 Inches Maximum
- Body Width [ADAT]
- 2.140 Inches Maximum
- Body Height [ADAU]
- 2.450 Inches Maximum
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Facility Quantity [AKPV]
- 4
- Mounting Hole Diameter [ABTB]
- 0.180 Inches Nominal
- Motor Voltage Type And Rating In Volts [CYEH]
- 28.0 Dc
Weapon Systems (WSDC) 5905-01-203-8072
DLA Procurement Analysis 5905-01-203-8072
- Last Stock Position:
- 5 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5905-01-203-8072
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- BK
- Rotary Wing Aircraft
CH-47
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5905-01-203-8072
Freight Information 5905-01-203-8072
5905-01-203-8072 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-01-203-8072 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-01-203-8072 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-01-203-8072 is not classified as a special type of cargo when transported by water. 5905-01-203-8072 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-01-203-8072
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 7.0" H x 4.0" W x 4.0" L
- --
- --
- --
- Any Suitable Process
- 7.0" H x 4.0" W x 4.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- Special requirements
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- 32
- ASTM - D5118, Fiberboard Box
Procurement History 5905-01-203-8072 20 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7L122P7775
- 25 Jul 2022
- Subscribe
- 65
- Subscribe
- Subscribe
- Subscribe
- SPE7M522P4588P00001
- 23 Mar 2022
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7M522P4272
- 09 Mar 2022
- Subscribe
- 52
- Subscribe
- Subscribe
- Subscribe
- SPE7L321P4120
- 22 Apr 2021
- Subscribe
- 7
- Subscribe
- Subscribe
- Subscribe
- SPE7M518PF708P00001
- 06 Sep 2018
- Subscribe
- 30
- Subscribe
- Subscribe
- Subscribe
- SPE7M518PF350
- 28 Aug 2018
- Subscribe
- 72
- Subscribe
- Subscribe
- Subscribe
- SPE7M118P4742
- 05 Jul 2018
- Subscribe
- 70
- Subscribe
- Subscribe
- Subscribe
- SPE7M518P1198
- 23 Oct 2017
- Subscribe
- 14
- Subscribe
- Subscribe
- Subscribe
- SPE7M518P0306
- 03 Oct 2017
- Subscribe
- 14
- Subscribe
- Subscribe
- Subscribe
- SPE7M517P8147
- 04 May 2017
- Subscribe
- 15
- Subscribe
- Subscribe
- Subscribe
- SPE7M517C0031
- 23 Feb 2017
- Subscribe
- 25
- Subscribe
- Subscribe
- Subscribe
- SPE7M516C0031P00001
- 27 Apr 2016
- Subscribe
- 50
- Subscribe
- Subscribe
- Subscribe
- SPE7M516M2012
- 21 Nov 2015
- Subscribe
- 17
- Subscribe
- Subscribe
- Subscribe
- SPE7M515MC311
- 10 Sep 2015
- Subscribe
- 17
- Subscribe
- Subscribe
- Subscribe
- SPE7M515M9857
- 30 Jun 2015
- Subscribe
- 18
- Subscribe
- Subscribe
- Subscribe
- SPE7M515M8155P00001
- 13 May 2015
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE7M115M0743
- 21 Oct 2014
- Subscribe
- 11
- Subscribe
- Subscribe
- Subscribe
- SPE7M914M3486
- 09 Jul 2014
- Subscribe
- 16
- Subscribe
- Subscribe
- Subscribe
- SPE7M114C0008
- 24 Jan 2014
- Subscribe
- 50
- Subscribe
- Subscribe
- Subscribe
- SPM7M913M2257
- 17 Apr 2013
- Subscribe
- 25
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5905-01-203-8072 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
