5905-01-182-0129
Wire Wound Fixed Resistor Network
5905011820129 011820129 GL34-GA A51V29140-1
An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of high resistance wire (or ribbon), usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED. View more Wire Wound Fixed Resistor Network
August 2023
5
Marketplace 5905-01-182-0129
Request a Quotation from participating marketplace vendors
Related Documents 5905-01-182-0129 1+ Documents (More...)
(Identification) 1/2 NSN 5905-01-182-0129 (Identification) 2/2 - - 1.
United States (US) 4. 5905-01-182-0129 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 5905-01-182-0129
5905-01-182-0129 is a Wire Wound Fixed Resistor Network that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5905-01-182-0129
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-182-0129
- National Security Agency (DGX1)
- Effective Date:
- 1 Sep 2008
Approved Sources 5905-01-182-0129
- Part Number
- Manufacturer
- Status
- A51V29140-1
- Manufacturer
- 79RG9 - Northrop Grumman Systems Corporation (Active)
- Source Control
- Source Control
- GL34-GA
- 07062 - Julie Research Laboratories Inc (Active)
- Primary Buy
- Primary Buy
- A51V29140-1
- 61174 - Northrop Grumman Systems Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- A51V29140-1
- 26512 - Northrop Grumman Systems Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-01-182-0129
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 2.000 Kilohms
- Electrical Resistance [AAPP]
- 2.500 Kilohms
- Electrical Resistance [AAPP]
- 500.000 Ohms
- End Item Identification [AGAV]
- An/Usm 247 (Vast)
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 125.0
- Body Diameter [ABPM]
- 0.300 Inches Nominal
- Body Length [ADAQ]
- 0.650 Inches Nominal
- Inclosure Method [AAQZ]
- Encapsulated
- Power Dissipation Rating In Watts [AEFB]
- 0.250 Each Resistor
- Resistance Tolerance In Percent [AAPQ]
- -0.020/+0.020
- Schematic Diagram Designator [AEBZ]
- Series Network
- Special Features [FEAT]
- Temp Coef Not To Exceed Plus 20 Ppm

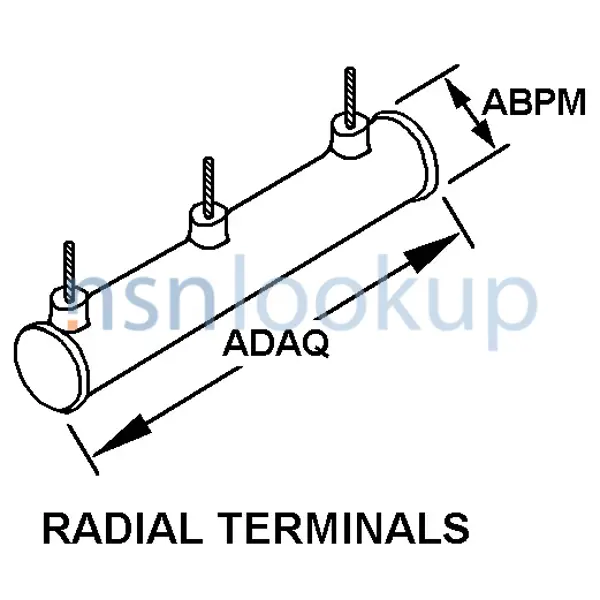

- Style Designator [STYL]
- Radial Terminals
- Temp Range Of Temp Coefficient In Deg Celsius [AAQH]
- +55.0/+125.0 Temp Range Of First Temp Coefficient
- Terminal Quantity [AARA]
- 4
- Terminal Type [AARB]
- Wire Lead
DLA Procurement Analysis 5905-01-182-0129
Management Data 5905-01-182-0129
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- V
- Discontinued Without Replacement
- V
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 2
- Electrostatic Discharge (ESD)/Electromagnetic (EM) Sensitive Item
NATO Stock Numbers Related to 5905-01-182-0129
Freight Information 5905-01-182-0129
5905-01-182-0129 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-01-182-0129 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5905-01-182-0129 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-01-182-0129 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5905-01-182-0129 is not classified as a special type of cargo when transported by water. 5905-01-182-0129 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-01-182-0129
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5905-01-182-0129 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
