5905-01-118-7890
Nonprecision Nonwire Wound Variable Resistor
5905011187890 011187890 410010
A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION. View more Nonprecision Nonwire Wound Variable Resistor
November 2023
7
Marketplace 5905-01-118-7890
Request a Quotation from participating marketplace vendors
Related Documents 5905-01-118-7890 5+ Documents (More...)
(Identification) 1/2 NSN 5905-01-118-7890 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5905-01-118-7890 RQST Updated Every Day 5905-01-118-7890 RQST NE Related
231121495LB1-410010 Managed by Greece NSN Created on 17 Mar 1993 Data Last Changed January 2023 NATO
5905011187890 011187890,410010 5995-410010 D0894 - Rohde & Schwarz Gmbh & Co. https//www.nsnlookup.com
410010-001 FTAA47P11 A motor which is designed for operation from an alternating current source.
how to enable JavaScript in your web browser . 2835-25-146-5494Munnstykke2835251465494 251465494 410010
1TE 10 41 00 10 410010 DIN20021-1TE10 A flexible, tubular item having a nonmetallic tube inner conveying
JavaScript in your web browser . 6105-14-473-2239Alternating Current Motor6105144732239 144732239 410010
A A A A -410010 C3069 ) Canceled/Obsolete RNCC 5 RNVC 9 DAC 3 MTV 5995-410010 D9477 - Baainbw Verteidigungsgerate-Normen
(Active) Canceled/Obsolete RNCC 5 RNVC 9 DAC 3 5995-410010 D0894 - Rohde & Schwarz Gmbh & Co.
Restrictions 5905-01-118-7890
5905-01-118-7890 is a Nonprecision Nonwire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a confirmed Commerce Control List Item (CCLI). This item is not suspected to be hazardous. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.
Import and Export 5905-01-118-7890
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-118-7890
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 2002
Approved Sources 5905-01-118-7890
- Part Number
- Manufacturer
- Status
- 410010
- Manufacturer
- 07239 - Avo Intl (Active)
- Primary Buy
- Primary Buy
Datasheet 5905-01-118-7890
- Characteristic
- Specifications
- FIIG
- Specifications
- A002A0
- Section Quantity [AAPN]
- 1
- Electrical Resistance Per Section [CQCC]
- 1.8 Ohms Single Section
- Power Dissipation Rating Per Section In Watts [CRGD]
- 750.0 Free Air Single Section
- Ambient Temp In Deg Celsius Per Section At Full Rated Power [CSDH]
- 70.0 Single Section

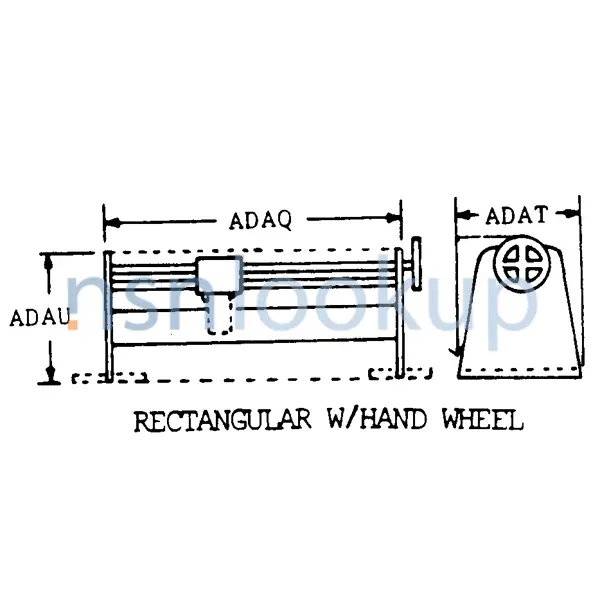

- Body Style [AAQL]
- Rectangular W/Hand Wheel
- Body Length [ADAQ]
- 14.750 Inches Nominal
- Body Width [ADAT]
- 4.250 Inches Nominal
- Body Height [ADAU]
- 5.500 Inches Nominal
- Actuator Type [AEFD]
- Single Shaft
- Shaft Style [AEDX]
- Round, Threaded
- Mounting Method [AXGY]
- Unthreaded Hole
- Mounting Facility Quantity [AKPV]
- 4
- Mounting Hole Diameter [ABTB]
- 0.250 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 3 Binding Post
- Terminal Location [APXH]
- Longitudinally Positioned On The Circumference
- Reliability Indicator [AARG]
- Not Established
- Special Features [FEAT]
- Shaft Knob,Linear Motion Shaft
- Fragility Factor [AFJN]
- Rugged
Weapon Systems (WSDC) 5905-01-118-7890
DLA Procurement Analysis 5905-01-118-7890
- Last Stock Position:
- 4 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5905-01-118-7890
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- EH
- ELECTRONIC COMPONENTS
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- 3
- Calibration Required
NATO Stock Numbers Related to 5905-01-118-7890
Freight Information 5905-01-118-7890
5905-01-118-7890 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-01-118-7890 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-01-118-7890 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-01-118-7890 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 5905-01-118-7890 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-01-118-7890
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5905-01-118-7890 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
