5905-01-118-7277
Nonprecision Wire Wound Variable Resistor
5905011187277 011187277 5229-60-4 625419-4 625418-4-1 625418-3-1 625419-3 10127368
A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION. View more Nonprecision Wire Wound Variable Resistor
November 2023
18
Marketplace 5905-01-118-7277
Request a Quotation from participating marketplace vendors
Related Documents 5905-01-118-7277 4+ Documents (More...)
RQST NE Updated Every Day 5905-01-118-7277 RQST Updated Every Day 5905-01-118-7277 RQST NE Related
Documents 5905-01-118-7277 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905
Resistor Account Upgrade 5905-01-118-7277Nonprecision Wire Wound Variable Resistor5905011187277 011187277
625418 -4-1 5229-60-4 625419-4 625418-3-1 625419-3 10127368 A resistor in which a sliding or rolling
625418 -4-1 5229-60-4 625419 -4 625418-3-1 625419-3 10127368 A resistor in which a sliding or rolling
Secondary Buy RNCC 5 RNVC 2 DAC 5 625419 https https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-01-118-7277
625419 -4 625418-3-1 625419-3 10127368 A resistor in which a sliding or rolling contact Fluid Flow
625418-3-1 625419-3 10127368 A resistor in which a sliding or rolling contact Active) https//www.nsnlookup.com
Restrictions 5905-01-118-7277
5905-01-118-7277 is a Nonprecision Wire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.
Import and Export 5905-01-118-7277
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-118-7277
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- Finland (WF01)
- Effective Date:
- 1 Apr 2011
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5905-01-118-7277
- Part Number
- Manufacturer
- Status
- 625418-4-1
- Manufacturer
- 07217 - Honeywell Limited (Active)
- Primary Buy
- Primary Buy
- 5229-60-4
- 73138 - Bi Technologies Corporation (Active)
- Secondary Buy
- Secondary Buy
- 625419-4
- 07217 - Honeywell Limited (Active)
- Secondary Buy
- Secondary Buy
- 625418-4-1
- 73138 - Bi Technologies Corporation (Active)
- Secondary Buy
- Secondary Buy
- 625418-4-1
- 98247 - Canadian Commercial Corporation (Active)
- Secondary Buy
- Secondary Buy
- 625418-3-1
- 07217 - Honeywell Limited (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 625419-3
- 07217 - Honeywell Limited (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10127368
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5905-01-118-7277
- Characteristic
- Specifications
- FIIG
- Specifications
- A002A0
- Effective Electrical Rotation In Deg Angular Rotation [AEFH]
- 270.0 Nominal
- Electrical Resistance Per Section [CQCC]
- 1.0 Kilohms All Sections
- Actuator Type [AEFD]
- Dual Concentric
- Actuator Travel Control Feature [CRSX]
- Stops
- Body Length [ADAQ]
- 3.000 Inches Maximum
- Body Style [AAQL]
- Cylindrical Bushing Mounted
- First Flat Length [ABNB]
- 0.350 Inches Nominal
- Flat Height [ABNC]
- 0.102 Inches Minimum And 0.106 Inches Maximum
- End Item Identification [AGAV]
- F-18 Aircraft
- Mounting Bushing Length [ADAP]
- 0.280 Inches Minimum And 0.290 Inches Maximum
- Mounting Method [AXGY]
- Standard Bushing
- Nonturn Device Location [AEFN]
- At 3 Oclock
- Nonturn Device Radius [AEFP]
- 0.422 Inches Minimum And 0.452 Inches Maximum
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance Per Section In Percent [CRSS]
- -5.0 To 5.0 All Sections
- Rotary Actuator Travel In Angular Deg [CQCK]
- 270.0 Nominal
- Screw Thread Quantity Per Inch [AJYQ]
- 32.0
- Screw Thread Series Designator [AJYP]
- Unef
- Screw Thread Diameter [AJYN]
- 0.375 Inches Nominal
- Second Flat Height [CXJQ]
- 0.214 Inches Minimum And 0.218 Inches Maximum
- Second Flat Length [ABNE]
- 0.470 Inches Maximum
- Section Quantity [AAPN]
- 4
- Shaft Diameter [ABWV]
- 0.248 Inches Minimum And 0.250 Inches Maximum
- Shaft Length [ABXF]
- 1.130 Inches Minimum And 1.170 Inches Maximum
- Shaft Style [AEDX]

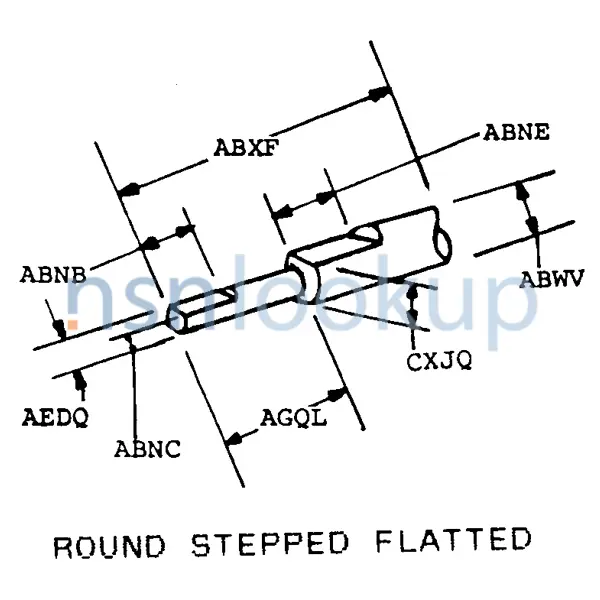

- Round Stepped Flatted
