5905-01-049-2153

Precision Wire Wound Variable Resistor

5905010492153 010492153 2001847501 216-48104-101 190-6

A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity) of the output is equal to or less than plus or munus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE, For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION. View more Precision Wire Wound Variable Resistor

5905-01-049-2153 RESISTOR,VARIABLE,WIRE WOUND,PRECISION 5905010492153 010492153

Managed by United States
NSN Created on 13 Oct 1977
Data Last Changed
June 2023
NATO Update Count
9
NATO Data Quality
AAQL Style 54B for 5905-01-049-2153 1/2
NSN 5905-01-049-2153 (Identification) 1/2
AEDX Style 8C for 5905-01-049-2153 2/2
NSN 5905-01-049-2153 (Identification) 2/2

5905-01-049-2153 Stock and Availability Marketplace 5905-01-049-2153

5905-01-049-2153 Related Documents Related Documents 5905-01-049-2153 1+ Documents (More...)

2001847501 216-48104-101 190-6 A resistor in which a sliding or rolling contact moves over an exposed
(Identification) 1/2 NSN 5905-01-049-2153 (Identification) 2/2 - - 1.
United States (US) 4. 5905-01-049-2153 Marketplace Restrictions Approved Sources Datasheet Management

5905-01-049-2153 Demil Restrictions 5905-01-049-2153

DEMIL: A | DEMILI: | CRITICALITY: X | HMIC: N | PMIC: U | EDC: B | ADPEC:

5905-01-049-2153 is a Precision Wire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown. This item is sensitive to Electrostatic Discharge.

5905-01-049-2153 HTS and ScheduleB Import and Export 5905-01-049-2153

5905-01-049-2153 End Users End Users 5905-01-049-2153

US Air Force (FXGX)
Effective Date:
1 Apr 2006
Former MOE Rule:
FXTX
US Navy (N9BN)
Effective Date:
1 Apr 2006
Former MOE Rule:
N9ND
Supplementary Collaborators:
KE
Portugal (ZP01)
Effective Date:
1 Apr 1991
Greece (ZU01)
Effective Date:
1 Apr 2008

5905-01-049-2153 Manufacturers Approved Sources 5905-01-049-2153

5905-01-049-2153 Technical Data Datasheet 5905-01-049-2153

Characteristic
Specifications
FIIG
A002A0
Electrical Resistance Per Section [CQCC]
5.0 Kilohms All Sections
Actuator Type [AEFD]
Single Shaft
Ambient Temp In Deg Celsius Per Section At Full Rated Power [CSDH]
125.0 All Sections
Body Height [ADAU]
1.930 Inches Maximum
Body Length [ADAQ]
6.110 Inches Nominal

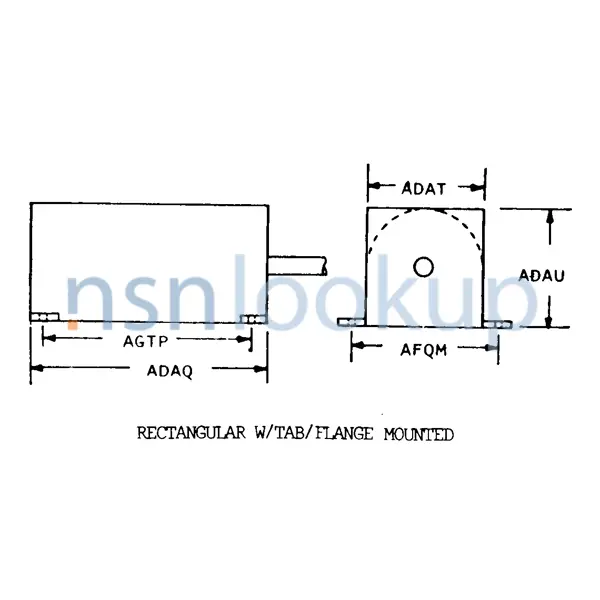

Body Style [AAQL]
Rectangular W/Tab/Flange Mounted
Body Width [ADAT]
0.500 Inches Nominal
Distance Between Mounting Hole Centers [AFQM]
1.440 Inches Nominal
Fixed Tap Quantity Per Section [CRJS]
1 All Sections
Fragility Factor [AFJN]
Moderately Rugged
Function Characteristic Per Section [CSBX]
All Sections Linear
Function Conformity Per Section [CRGM]
All Sections Independent Linearity
Function Conformity Tolerance Per Section [CQFL]
-1.00/+1.00 All Sections
Mounting Facility Quantity [AKPV]
4
Mounting Hole Diameter [ABTB]
0.200 Inches Minimum
Mounting Method [AXGY]
Unthreaded Hole
Lateral Distance Between Mounting Hole Centers [AGTP]
5.550 Inches Nominal
Longitudinal Actuator Effective Electrical Stroke Length [AEFW]
3.930 Inches Nominal
Longitudinal Actuator Travel [AEFT]
3.99 Inches Nominal
Power Dissipation Rating Per Section In Watts [CRGD]
0.1 Free Air All Sections
Reliability Indicator [AARG]
Not Established
Resistance Tolerance Per Section In Percent [CRSS]
-10.0/+10.0 All Sections
Section Quantity [AAPN]
2
Shaft Diameter [ABWV]
0.190 Inches Nominal
Shaft Length [ABXF]
1.540 Inches Nominal
Shaft Style [AEDX]
Round, Threaded
Tap Location From Ccw Terminal Per Section In Ohms [CSBW]
1250.0 All Sections
Tap Location Tolerance Per Section [CRKS]
-1.0/+1.0 Ohms All Sections
Terminal Location [APXH]
Rear End
Terminal Type And Quantity [TTQY]
8 Wire Lead
Thread Length [AASA]
0.900 Inches Nominal
