5905-01-006-1761
Precision Wire Wound Variable Resistor
5905010061761 010061761 1476-0468-4
A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity) of the output is equal to or less than plus or munus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE, For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION. View more Precision Wire Wound Variable Resistor
January 2023
7
Marketplace 5905-01-006-1761
Request a Quotation from participating marketplace vendors
Related Documents 5905-01-006-1761 1+ Documents (More...)
/fsg-59/fsc-5905/us
5905-01-006-1761 1+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-01-006-1761
/fsg-59/fsc-5905/us 5905-01-006-1761 /fsg-59/fsc-5905/us 5905-01-006-1761 RQST NE Updated Every Day
Restrictions 5905-01-006-1761
5905-01-006-1761 is a Precision Wire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-01-006-1761
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-006-1761
- Saudi Arabia (YS01)
- Effective Date:
- 1 Feb 2015
Approved Sources 5905-01-006-1761
- Part Number
- Manufacturer
- Status
- 1476-0468-4
- Manufacturer
- 32908 - Malwin Electronics Corp. (Active)
- Primary Buy
- Primary Buy
Datasheet 5905-01-006-1761
- Characteristic
- Specifications
- FIIG
- Specifications
- A002A0
- Effective Electrical Rotation In Deg Angular Rotation [AEFH]
- 3600.0 Nominal
- Electrical Resistance Per Section [CQCC]
- 2.0 Kilohms Single Section
- Actuator Travel Control Feature [CRSX]
- Clutch
- Actuator Type [AEFD]
- Single Shaft
- Ambient Temp In Deg Celsius Per Section At Full Rated Power [CSDH]
- 70.0 Single Section
- Ambient Temp In Deg Celsius Per Section At Zero Percent Rated Power [CQGN]
- 125.0 Single Section
- Body Diameter [ABPM]
- 0.875 Inches Maximum
- Body Length [ADAQ]
- 1.580 Inches Maximum
- Body Style [AAQL]
- Cylindrical Servo Mounted
- Fixed Tap Quantity Per Section [CRJS]
- 1 Single Section
- Function Characteristic Per Section [CSBX]
- Single Section Linear
- Function Conformity Per Section [CRGM]
- Single Section Independent Linearity
- Function Conformity Tolerance Per Section [CQFL]
- -0.05/+0.05 Single Section
- Mounting Lip Depth [AEDA]
- 0.0620 Inches Nominal
- Mounting Lip Diameter [AECZ]
- 0.8750 Inches Nominal
- Mounting Method [AXGY]
- Clamp Ring
- Power Dissipation Rating Per Section In Watts [CRGD]
- 2.5 Free Air Single Section
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance Per Section In Percent [CRSS]
- -10.0/+10.0 Single Section
- Rotary Actuator Travel In Angular Deg [CQCK]
- 3600.0 Nominal
- Section Quantity [AAPN]
- 1
- Shaft Diameter [ABWV]
- 0.1245 Inches Minimum And 0.1248 Inches Maximum
- Shaft Length [ABXF]
- 1.594 Inches Minimum And 1.656 Inches Maximum
- Shaft Style [AEDX]

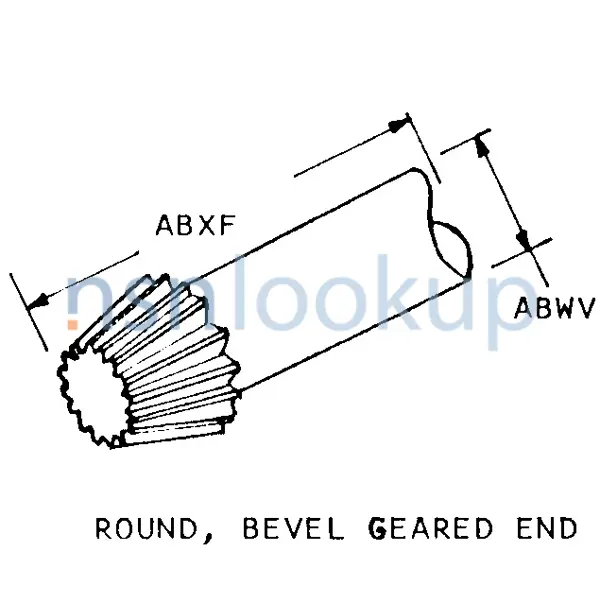

- Round, Bevel Geared End
- Pilot Diameter [AAVL]
- 0.6245 Inches Minimum And 0.6250 Inches Maximum
- Pilot Length [AAVM]
- 0.0620 Inches Nominal
- Undercut Diameter [ABPA]
- 0.791 Inches Nominal
- Undercut Width [ABPC]
- 0.0620 Inches Nominal
- Tap Location From Ccw Terminal Per Section In Ohms [CSBW]
- 1000.0 Single Section
- Terminal Location [APXH]
- Longitudinally Positioned On The Circumference
- Terminal Type And Quantity [TTQY]
- 4 Turret
