5905-01-005-1272
Nonprecision Nonwire Wound Variable Resistor
5905010051272 010051272 3650S440-103
A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION. View more Nonprecision Nonwire Wound Variable Resistor
January 2023
14
Marketplace 5905-01-005-1272
Request a Quotation from participating marketplace vendors
Related Documents 5905-01-005-1272 1+ Documents (More...)
010051272,3650S440-103 RQST NE Updated Every Day 5905-01-005-1272 RQST Updated Every Day 5905-01-005
Updated Every Day 5905-01-005 Updated Every Day 5905-01-005-1272 Every Day 5905-01-005-1272 Restrictions
Restrictions 5905-01-005-1272
5905-01-005-1272 is a Nonprecision Nonwire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-01-005-1272
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-01-005-1272
- Turkey (ZW01)
- Effective Date:
- 1 Dec 1995
Approved Sources 5905-01-005-1272
- Part Number
- Manufacturer
- Status
- 3650S440-103
- Manufacturer
- 80294 - Bourns Instruments Inc (Obsolete)
- Original Design
- Original Design
Datasheet 5905-01-005-1272
- Characteristic
- Specifications
- FIIG
- Specifications
- A002A0
- Electrical Resistance Per Section [CQCC]
- 10.000 Kilohms Single Section
- Actuator Type [AEFD]
- Integral Knob With Counter
- Body Diameter [ABPM]
- 1.375 Inches Nominal
- Body Length [ADAQ]
- 2.045 Inches Nominal

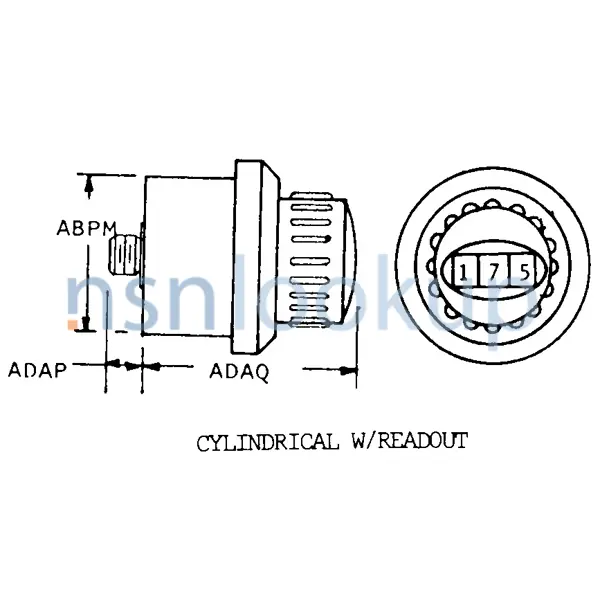

- Body Style [AAQL]
- Cylindrical W/Readout
- Mounting Bushing Length [ADAP]
- 0.380 Inches Nominal
- Mounting Method [AXGY]
- Standard Bushing And Clamp Ring
- Reliability Indicator [AARG]
- Not Established
- Screw Thread Quantity Per Inch [AJYQ]
- 32.0
- Screw Thread Series Designator [AJYP]
- Unef
- Screw Thread Diameter [AJYN]
- 0.375 Inches Nominal
- Section Quantity [AAPN]
- 1
- Overall Diameter [ADAV]
- 1.250 Inches Nominal
- Overall Length [ABHP]
- 2.470 Inches Nominal
- Terminal Location [APXH]
- Rear End
- Terminal Type And Quantity [TTQY]
- 2 Wire Loop
Similar Supply Items to 5905-01-005-1272
Freight Information 5905-01-005-1272
5905-01-005-1272 has freight characteristics managed by Germany.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-01-005-1272 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5905-01-005-1272 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-01-005-1272 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5905-01-005-1272 is not classified as a special type of cargo when transported by water. 5905-01-005-1272 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
