5905-00-899-7645
Nonprecision Wire Wound Variable Resistor
5905008997645 008997645 8615829 43MSX-1K 43M
A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION. View more Nonprecision Wire Wound Variable Resistor
Managed by United States
NSN Created on 1 Jan 1962
Data Last Changed
July 2025
July 2025
NATO Update Count
29
29
NATO Data Quality
Marketplace 5905-00-899-7645
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-899-7645 5+ Documents (More...)
8615829 43MSX-1K 43M A resistor in which a sliding or rolling contact moves over an exposed area of

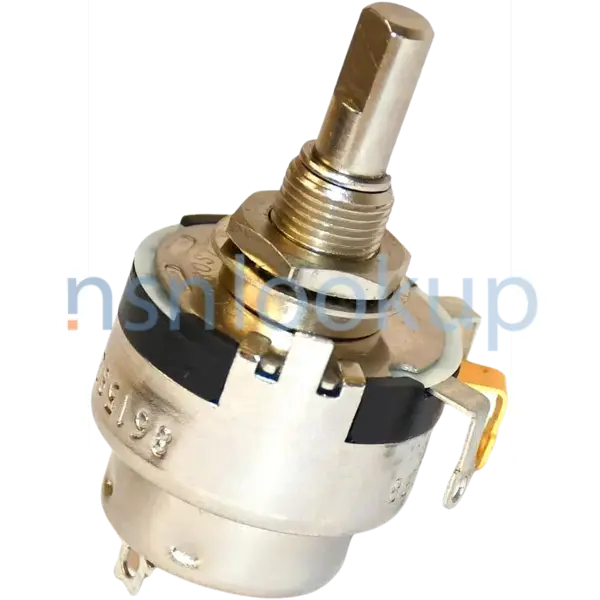

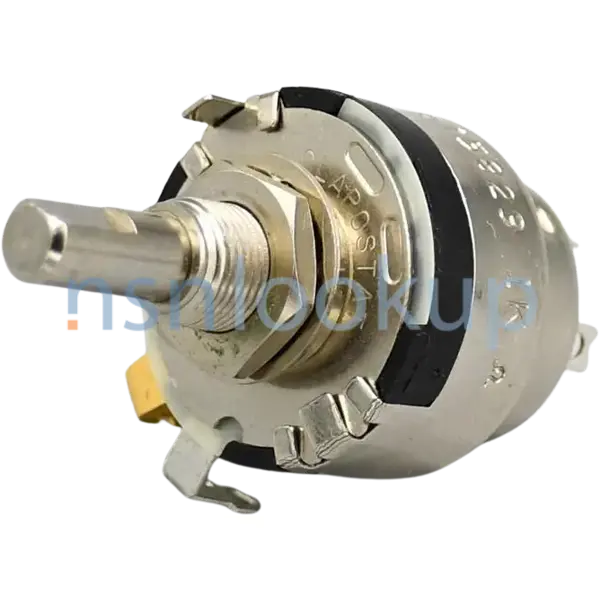

Photo 1/4 5905-00-899-7645 Photo 2/4 NSN 5905-00-899-7645 (Identification) 3/4 NSN 5905-00-899-
United States (US) 4. 5905-00-899-7645 Marketplace Restrictions Approved Sources Datasheet Management
Photo 1/4 5905-00-899-7645 Photo 2/4 NSN 5905-00-899-7645 (Identification) 3/4 NSN 5905-00-899-
United States (US) 4. 5905-00-899-7645 Marketplace Restrictions Approved Sources Datasheet Management
Account Upgrade 5905-00-933-6805Nonprecision Wire Wound Variable Resistor5905009336805 009336805 8615829
Day 5905-00-933-6805 RQST NE Related Documents https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-899-7645
Resistor Account Upgrade 5905-00-899-7645Nonprecision Wire Wound Variable Resistor5905008997645 008997645
Day 5905-00-933-6805 RQST NE Related Documents https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-899-7645
Resistor Account Upgrade 5905-00-899-7645Nonprecision Wire Wound Variable Resistor5905008997645 008997645
502-4698 Nonprecision Wire Wound Variable Resistor Channel9520142988012 1429880129439PR0FILE80X45L0-43M
5905-00-869-2012 Nonprecision Wire Wound Variable Resistor 7285Beef Liver8905218577285 218577285 32-GP-43M
3200 Pipe Bracket 5340218513200 218513200,43M,171 https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-899-7645
5905-00-869-2012 Nonprecision Wire Wound Variable Resistor 7285Beef Liver8905218577285 218577285 32-GP-43M
3200 Pipe Bracket 5340218513200 218513200,43M,171 https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-899-7645
JavaScript in your web browser . 5360-14-504-3899Compression Helical Spring5360145043899 145043899 43M
/K0366 43M An open coiled spring, wound in various forms and from different shapes and types of materials
JavaScript in your web browser . 8430-99-153-5327Combat Boots8430991535327 991535327 DEFCB-BRN EUR 43M
/K0366 43M An open coiled spring, wound in various forms and from different shapes and types of materials
JavaScript in your web browser . 8430-99-153-5327Combat Boots8430991535327 991535327 DEFCB-BRN EUR 43M
in your web browser . 9520-14-298-8012Structural Channel9520142988012 142988012 9439PR0FILE80X45L0-43M
9520142988012142988012 in your web browser . 9520-14-298-8012Structural Channel9520142988012 1429880129439PR0FILE80X45L0-43M
-3899 Compression Helical Spring 5360145043899 5327Combat Boots8430991535327 991535327DEFCB-BRN EUR 43M
9520142988012142988012 in your web browser . 9520-14-298-8012Structural Channel9520142988012 1429880129439PR0FILE80X45L0-43M
-3899 Compression Helical Spring 5360145043899 5327Combat Boots8430991535327 991535327DEFCB-BRN EUR 43M
Restrictions 5905-00-899-7645
5905-00-899-7645 is a Nonprecision Wire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-899-7645
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-899-7645
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- BFCL
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Brazil (YA01)
- Effective Date:
- 1 Jan 2004
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Jul 1993
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5905-00-899-7645
- Part Number
- Manufacturer
- Status
- 8615829
- Manufacturer
- 19200 - Combat Capabilities Development (Active)
- Primary Buy
- Primary Buy
- 8615829
- 12697 - Clarostat Sensors And Controls (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 43MSX-1K
- 12697 - Clarostat Sensors And Controls (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 43M
- 12697 - Clarostat Sensors And Controls (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-00-899-7645
- Characteristic
- Specifications
- FIIG
- Specifications
- A002A0
- Effective Electrical Rotation In Deg Angular Rotation [AEFH]
- 260.0 Nominal
- Electrical Resistance Per Section [CQCC]
- 1.0 Kilohms Single Section
- Actuator Travel Control Feature [CRSX]
- Stops
- Actuator Type [AEFD]
- Single Shaft
- Ambient Temp In Deg Celsius Per Section At Full Rated Power [CSDH]
- 40.0 Single Section
- Ambient Temp In Deg Celsius Per Section At Zero Percent Rated Power [CQGN]
- 105.0 Single Section
- Body Diameter [ABPM]
- 1.125 Inches Nominal
- Body Length [ADAQ]
- 0.594 Inches Nominal
- Body Style [AAQL]
- Cylindrical Bushing Mounted
- Features Provided [CBBL]
- Switch
- First Flat Length [ABNB]
- 0.312 Inches Nominal
- Flat Height [ABNC]
- 0.218 Inches Nominal
- Mounting Bushing Length [ADAP]
- 0.375 Inches Nominal
- Mounting Method [AXGY]
- Standard Bushing W/Shaft Seal
- Nonturn Device Location [AEFN]
- At 9 Oclock
- Nonturn Device Radius [AEFP]
- 0.531 Inches Nominal
- Overall Length [ABHP]
- 1.813 Inches Nominal
- Power Dissipation Rating Per Section In Watts [CRGD]
- 2.0 Free Air Single Section
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance Per Section In Percent [CRSS]
- -10.0 To 10.0 Single Section
- Rotary Actuator Travel In Angular Deg [CQCK]
- 300.0 Nominal
- Screw Thread Diameter [AJYN]
- 0.375 Inches Nominal
- Screw Thread Quantity Per Inch [AJYQ]
- 32.0
- Screw Thread Series Designator [AJYP]
- Unef
- Section Quantity [AAPN]
- 1
- Shaft Diameter [ABWV]
- 0.250 Inches Nominal
- Shaft Style [AEDX]
- Round, Flatted
- Shaft Length [ABXF]
- 0.938 Inches Nominal
- Switch Contact Arrangement [AEGJ]
- Single Pole, Single Throw, Normally Open, Both Positions Maintained
- Switch Current Type And Rating In Amps [CSDK]
- 1.000 Ac And 3.000 Dc
- Switch Operating Position [AEGH]
- Start Of Rotation
- Switch Type [AEEA]
- Rotary
- Switch Voltage Rating In Volts [AEED]
- 250.0 And 125.0
- Temp Coefficient Of Resistance Wire Per Section In Ppm Per Deg Celsius [CSCY]
- -20.0 To 20.0 Single Section
- Terminal Location [APXH]
- Rear-Bottom
- Terminal Type And Quantity [TTQY]
- 5 Tab, Solder Lug
Weapon Systems (WSDC) 5905-00-899-7645
DLA Procurement Analysis 5905-00-899-7645
- Last Stock Position:
- 1 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5905-00-899-7645
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5905-00-899-7645
5905-99-017-1535 5905-14-214-5399 5905-14-447-2700 5905-98-207-7010 5905-14-421-1455 5905-25-119-3094 5905-99-560-0734 5905-14-303-8153 5905-99-947-9302 5905-14-288-3232 5905-99-753-2003 5905-14-372-0638 5905-14-540-8501 5905-14-309-5504 5905-14-347-0480 5905-14-501-7717 5905-14-040-0571 5905-14-209-0767
Freight Information 5905-00-899-7645
5905-00-899-7645 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-899-7645 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-899-7645 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-00-899-7645 is not classified as a special type of cargo when transported by water. 5905-00-899-7645 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-00-899-7645
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Procurement History 5905-00-899-7645 15 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M123V6475
- 11 May 2023
- Subscribe
- 49
- Subscribe
- Subscribe
- Subscribe
- SPE7M121P2325
- 28 Jan 2021
- Subscribe
- 4
- Subscribe
- Subscribe
- Subscribe
- SPE7M518V045Y
- 10 Jul 2018
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPE7M017P4120
- 27 Jun 2017
- Subscribe
- 62
- Subscribe
- Subscribe
- Subscribe
- SPE7M515MC994
- 28 Sep 2015
- Subscribe
- 138
- Subscribe
- Subscribe
- Subscribe
- SPE7M515MA050P00001
- 08 Jul 2015
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPM7LX13D900273VE02
- 28 May 2014
- Subscribe
- 56
- Subscribe
- Subscribe
- Subscribe
- SPM7LX13D900272AL
- 20 May 2014
- Subscribe
- 1
- Subscribe
- Subscribe
- Subscribe
- SPM7LX13D900258EP
- 05 Apr 2014
- Subscribe
- 50
- Subscribe
- Subscribe
- Subscribe
- SPM7LX13D900258EN
- 05 Apr 2014
- Subscribe
- 50
- Subscribe
- Subscribe
- Subscribe
- SPM7LX13D900227QK
- 16 Nov 2013
- Subscribe
- 6
- Subscribe
- Subscribe
- Subscribe
- SPM7LX13D9002136G
- 06 Aug 2013
- Subscribe
- 40
- Subscribe
- Subscribe
- Subscribe
- SPM7LX13D9002091Q
- 06 Jul 2013
- Subscribe
- 30
- Subscribe
- Subscribe
- Subscribe
- SPM7LX13D900201PM
- 17 May 2013
- Subscribe
- 50
- Subscribe
- Subscribe
- Subscribe
- SPM7LX13D90020659
- 25 Feb 2013
- Subscribe
- 100
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5905-00-899-7645 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
