5905-00-843-6411

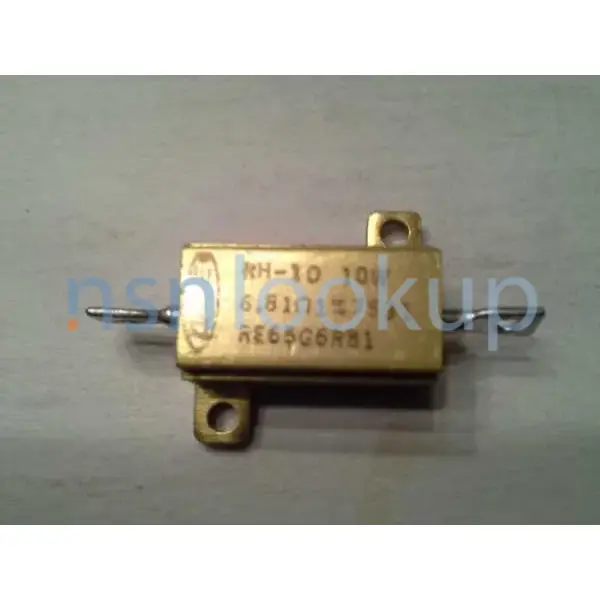

Inductive Wire Wound Fixed Resistor
5905008436411 008436411 MILR18546 RE65G6R81
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The item must have inherent characteristics of inducing self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Exclut s SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, NONINDUCTIVE. View more Inductive Wire Wound Fixed Resistor
May 2023
19
Marketplace 5905-00-843-6411
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-843-6411 5+ Documents (More...)
MILR18546 RESISTOR,FIXED,WIRE WOUND,INDUCTIVE 23 EA NS Request Quotation Updated Every Day 5905-00-843
-2 RE77G27R4 RE77N27R4 MILR18546- value cannot be RE77G23R7 MILR18546 -2 RE77G27R4 RE77G60R4 MILR18546
59/fsc-5905/us 5905-00-942-6978 Inductive Wire Wound Fixed Resistor 016-1598 5905-00-574-3862 5905-00-843-6411
59/fsc-5905/us 5905-00-458-7198 Inductive Wire Wound Fixed Resistor 016-1598 5905-00-574-3862 5905-00-843-6411
5905-00-942-6978 Inductive Wire Wound Fixed Resistor 175-9799 5905-01-016-1598 5905-00-574-3862 5905-00-843-6411
Celsius [AAQH]-55.0/+275.0Terminal Type [AARB]Wire Lead Similar Supply Items to 5905-00-617-8021 5905-00-843-6411
-2 RE77G27R4 RE77G60R4 MILR18546-2 RE77G27R4 RE77N27R4 MILR18546-2 RE77N27R4 MILR18546-2 A resistor whose
RE77G23R7 MILR18546 -2 RE77G27R4 RE77G60R4 MILR18546 MILR18546 RE77G60R4 MILR18546 -2 RE77G27R4 RE77N27R4
Restrictions 5905-00-843-6411
5905-00-843-6411 is a Inductive Wire Wound Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5905-00-843-6411
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-843-6411
- Brazil (YA01)
- Effective Date:
- 1 Jan 2011
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
Approved Sources 5905-00-843-6411
- Part Number
- Manufacturer
- Status
- RE65G6R81
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MILR18546
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 5905-00-843-6411
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 25.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 275.0
- Body Height [ADAU]
- 0.406 Inches Nominal
- Body Length [ADAQ]
- 0.750 Inches Nominal
- Body Width [ADAT]
- 0.438 Inches Nominal
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Length [AEBY]
- 0.562 Inches Nominal
- Heat Sink Length [AAQA]
- 6.000 Inches
- Heat Sink Material [AAPZ]
- Aluminum Alloy
- Heat Sink Thickness [AAQE]
- 0.040 Inches
- Heat Sink Height [AAQD]
- 2.000 Inches
- Heat Sink Width [AAQB]
- 4.000 Inches
- Electrical Resistance [AAPP]
- 6.810 Ohms
- Mounting Hole Size [BYML]
- 0.094 Inches Nominal
- Inclosure Method [AAQZ]
- Encased
- Power Dissipation Rating In Watts [AEFB]
- 6.000 Free Air
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance In Percent [AAPQ]
- -1.000/+1.000
- Style Designator [STYL]
- Axial Terminal (S)
- Temp Coefficient Of Resistance In Ppm Per Deg Celsius [AAPE]
- -50.0/+50.0
- Temp Range Of Temp Coefficient In Deg Celsius [AAQH]
- -55.0/+275.0
- Terminal Length [ABJT]
- 0.312 Inches Nominal
- Terminal Type [AARB]
- Tab, Solder Lug
- Test Data Document [TEST]
- 81349-Milr18546/1 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
Similar Supply Items to 5905-00-843-6411
Freight Information 5905-00-843-6411
5905-00-843-6411 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-843-6411 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-843-6411 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-00-843-6411 is not classified as a special type of cargo when transported by water. 5905-00-843-6411 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
