5905-00-825-2039
Precision Wire Wound Variable Resistor
5905008252039 008252039 2041716 L603000010 1764-2 200-653
A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity) of the output is equal to or less than plus or munus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE, For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION. View more Precision Wire Wound Variable Resistor
May 2023
3


Marketplace 5905-00-825-2039
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-825-2039 2+ Documents (More...)

/fsg-59/fsc-5905/us
(Identification) 1/2 NSN 5905-00-825-2039 (Identification) 2/2 - - 1.
RESISTOR,VARIABLE,WIRE WOUND,PRECISION 3 EA NS Request Quotation Updated Every Day 5905-00-825-2039
Resistor your Account Upgrade 5905-00-825-2039Precision Wire Wound Variable Resistor5905008252039 008252039
2041716 RESISTOR,VARIABLE,WIRE WOUND,PRECISION 3 EA NS Request Quotation Subscribe to View Vendor Details
Restrictions 5905-00-825-2039
5905-00-825-2039 is a Precision Wire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-825-2039
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-825-2039
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- HD
Approved Sources 5905-00-825-2039
- Part Number
- Manufacturer
- Status
- 2041716
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
- L603000010
- 36090 - Lockheed Martin Librascope (Active)
- Secondary Buy
- Secondary Buy
- 1764-2
- 18053 - Subminiature Instruments Corp. (Active)
- Secondary Buy
- Secondary Buy
- 200-653
- 02111 - Vishay Sprague Inc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5905-00-825-2039
- Characteristic
- Specifications
- FIIG
- Specifications
- A002A0
- Electrical Resistance Per Section [CQCC]
- 2.000 Kilohms Single Section
- Actuator Type [AEFD]
- Single Shaft
- Ambient Temp In Deg Celsius Per Section At Full Rated Power [CSDH]
- 50.0 Single Section
- Ambient Temp In Deg Celsius Per Section At Zero Percent Rated Power [CQGN]
- 110.0 Single Section
- Body Diameter [ABPM]
- 1.744 Inches Minimum And 1.750 Inches Maximum
- Body Length [ADAQ]
- 0.960 Inches Minimum And 1.080 Inches Maximum
- Body Style [AAQL]
- Cylindrical Servo Mounted
- First Flat Length [ABNB]
- 0.747 Inches Minimum And 0.753 Inches Maximum
- Fixed Tap Quantity Per Section [CRJS]
- 1 Single Section
- Function Characteristic Per Section [CSBX]
- Single Section Linear
- Function Conformity Per Section [CRGM]
- Single Section Independent Linearity
- Function Conformity Tolerance Per Section [CQFL]
- -0.50/+0.50 Single Section
- Mounting Lip Depth [AEDA]
- 0.0880 Inches Minimum And 0.0980 Inches Maximum
- Mounting Lip Diameter [AECZ]
- 1.7750 Inches Maximum
- Mounting Method [AXGY]
- Clamp Ring
- Power Dissipation Rating Per Section In Watts [CRGD]
- 1.0 Free Air Single Section
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance Per Section In Percent [CRSS]
- -2.0/+2.0 Single Section
- Section Quantity [AAPN]
- 1
- Shaft Diameter [ABWV]
- 0.2494 Inches Minimum And 0.2497 Inches Maximum

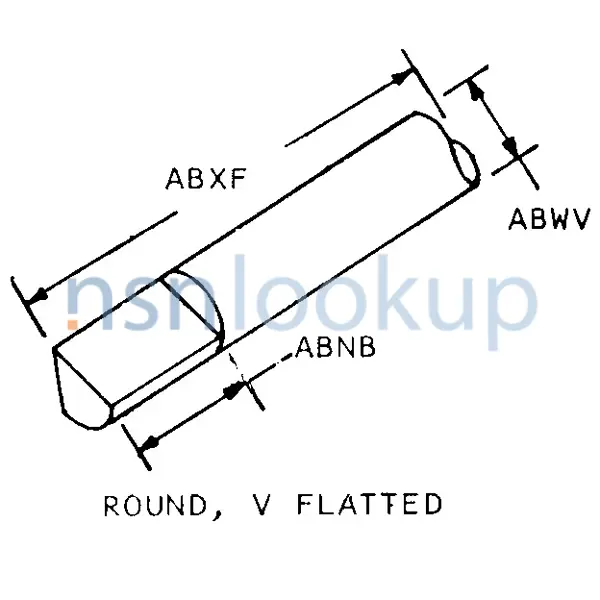

- Shaft Style [AEDX]
- Round, V Flatted
- Shaft Length [ABXF]
- 1.437 Inches Minimum And 1.443 Inches Maximum
- Overall Diameter [ADAV]
- 1.995 Inches Maximum
- Overall Length [ABHP]
- 2.397 Inches Minimum And 2.523 Inches Maximum
- Pilot Diameter [AAVL]
- 1.5420 Inches Minimum And 1.5620 Inches Maximum
- Pilot Length [AAVM]
- 0.0570 Inches Minimum And 0.0670 Inches Maximum
- Undercut Diameter [ABPA]
- 1.250 Inches Nominal
- Undercut Width [ABPC]
- 0.0730 Inches Nominal
- Tap Location From Ccw Terminal Per Section In Deg Of Effective Electrical Rotation [CQCH]
- 150.0 Single Section
- Tap Location Tolerance Per Section [CRKS]
- -2.0/+2.0 Deg Angular Rotation Single Section
- Terminal Location [APXH]
- Radially Positioned Over Less Than Half The Circumference
- Terminal Type And Quantity [TTQY]
- 4 Turret
