5905-00-819-1026
Thermal Resistor
5905008191026 008191026 1068269-1 A518
A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL. View more Thermal Resistor
May 2023
19
Marketplace 5905-00-819-1026
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-819-1026 5+ Documents (More...)
A518 RESISTOR,THERMAL 302 EA NS Request Quotation Updated Every Day 5905-00-819-1026 RQST NE Updated
Every Day 5905-00-819-1026 RQST Updated Every Day 5905-00-819-1026 RQST NE Related Documents 5905-00-
Step-Up Power Transformer 6120997607499 NumberManufacturerStatusNTD-A518 Buy RNCC 3 RNVC 2 DAC 2 NTD-A518
Thermal Resistor 5905008191026 008191026 Step-Up Power Transformer 6120997607499 NumberManufacturerStatusNTD-A518
Thermal Resistor 5905008191026 008191026 DAC 2 NTD-A518 NumberManufacturerStatusNTD-A518 https/
) Primary Buy RNCC 3 RNVC 2 DAC 2 NTD-A518 NumberManufacturerStatusNTD-A518 https//www.nsnlookup.com
Buy RNCC 3 RNVC 2 DAC 2 NTD-A518 ) NumberManufacturerStatusNTD-A518 Buy RNCC 3 RNVC 2 DAC 2 NTD-A518
NumberManufacturerStatusNTD-A518 NumberManufacturerStatusNTD-A518 ) Primary DAC 2 NTD-A518 NumberManufacturerStatusNTD-A518
Buy RNCC 3 RNVC 2 DAC 2 NTD-A518 ) NumberManufacturerStatusNTD-A518 Buy RNCC 3 RNVC 2 DAC 2 NTD-A518
Restrictions 5905-00-819-1026
5905-00-819-1026 is a Thermal Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-819-1026
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-819-1026
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- KE
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5905-00-819-1026
- Part Number
- Manufacturer
- Status
- 1068269-1
- Manufacturer
- 59364 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
- 1068269-1
- 77068 - Allied-Signal Inc (Replaced)
- Original Design
- Original Design
- A518
- 1L9U5 - Measurement Specialties, Inc. (Active)
- Secondary Buy
- Secondary Buy
- A518
- 83186 - Meas Us Llc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-00-819-1026
- Characteristic
- Specifications
- FIIG
- Specifications
- A086A0
- Body Outside Diameter [ADAR]
- 0.870 Inches Maximum
- Mounting Facility Nominal Screw Thread Diameter [CRYY]
- 0.190 Inches
- Mounting Facility Screw Thread Series Designator [AKEJ]
- Unc
- Mounting Thread Quantity [CGGK]
- 32 Per Inch
- Zero Power Resistance [CQWD]
- 10.000 Ohms
- Inclosure Type [AKNA]
- Encapsulated
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance At A Specified Temp In Percent [AEJF]
- -10.0/+10.0 All Resistance-Temperature Points
- Overall Height [ABKW]
- 1.000 Inches Minimum And 1.060 Inches Maximum
- Overall Length [ABHP]
- 1.250 Inches Maximum
- Overall Width [ABMK]
- 0.870 Inches Maximum
- Washer Thickness [ADEM]
- 0.150 Inches Nominal
- Zero Power Resistance At Specified Temp [AEJE]
- 32.7 Ohms 1St Resistance-Temperature Point
- Zero Power Resistance At Specified Temp [AEJE]
- 0.9 Ohms 3Rd Resistance-Temperature Point
- Zero Power Resistance At Specified Temp [AEJE]
- 5.3 Ohms 2Nd Resistance-Temperature Point
- Zero Power Resistance Tolerance In Percent At Reference Temp [CRQJ]
- -10.0/+10.0

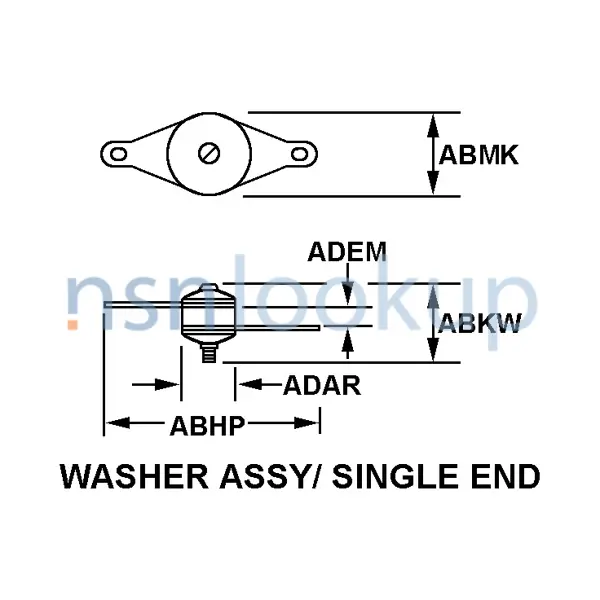

- Style Designator [STYL]
- Washer Assy/Single End
- Temp Points For Resistance Readings At Zero Power [AEJD]
- 0.0 Deg Celsius 1St Resistance-Temperature Point
- Temp Points For Resistance Readings At Zero Power [AEJD]
- 40.0 Deg Celsius 2Nd Resistance-Temperature Point
- Temp Points For Resistance Readings At Zero Power [AEJD]
- 90.0 Deg Celsius 3Rd Resistance-Temperature Point
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug
DLA Procurement Analysis 5905-00-819-1026
Management Data 5905-00-819-1026
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5905-00-819-1026
Freight Information 5905-00-819-1026
5905-00-819-1026 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-819-1026 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-819-1026 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5905-00-819-1026 is not classified as a special type of cargo when transported by water. 5905-00-819-1026 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-00-819-1026
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
