5905-00-781-5709
Precision Nonwire Wound Variable Resistor
5905007815709 007815709 2986
A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The finctional tolerance (linearity) of the output is equal to or less than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually postioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see REHOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE NONWIRE WOUND, NONPRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION. View more Precision Nonwire Wound Variable Resistor
May 2023
3
Marketplace 5905-00-781-5709
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 5905-00-781-5709 2+ Documents (More...)
RQST NE Updated Every Day 5905-00-781-5709 RQST Updated Every Day 5905-00-781-5709 RQST NE Related
Documents 5905-00-781-5709 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905
Restrictions 5905-00-781-5709
5905-00-781-5709 is a Precision Nonwire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-781-5709
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-781-5709
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GTKE
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5905-00-781-5709
- Part Number
- Manufacturer
- Status
- 2986
- Manufacturer
- 04454 - Sensor Systems, L.L.C. (Active)
- Incomplete Reference
- Incomplete Reference
Datasheet 5905-00-781-5709
- Characteristic
- Specifications
- FIIG
- Specifications
- A002A0
- Electrical Resistance Per Section [CQCC]
- 20.0 Kilohms All Sections
- Actuator Type [AEFD]
- Single Shaft
- Ambient Temp In Deg Celsius Per Section At Full Rated Power [CSDH]
- 20.0 All Sections
- Ambient Temp In Deg Celsius Per Section At Zero Percent Rated Power [CQGN]
- 125.0 All Sections
- Body Height [ADAU]
- 0.560 Inches Nominal
- Body Length [ADAQ]
- 2.500 Inches Nominal

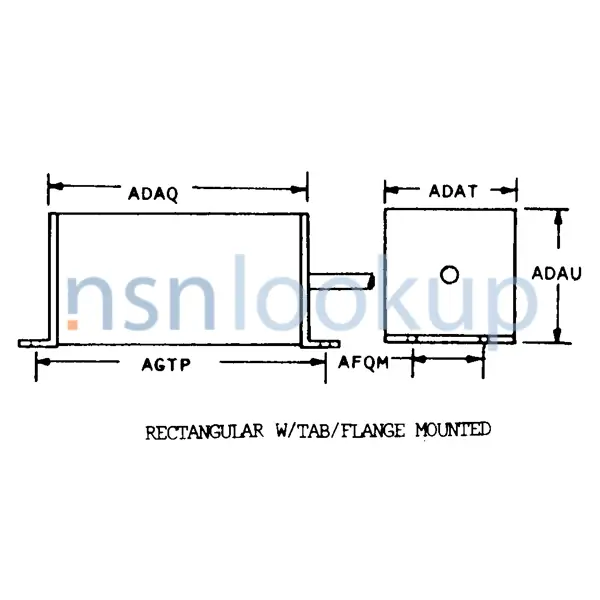

- Body Style [AAQL]
- Rectangular W/Tab/Flange Mounted
- Body Width [ADAT]
- 1.120 Inches Nominal
- Distance Between Mounting Hole Centers [AFQM]
- 0.660 Inches Nominal
- Function Characteristic Per Section [CSBX]
- All Sections Linear
- Function Conformity Per Section [CRGM]
- All Sections Independent Linearity
- Function Conformity Tolerance Per Section [CQFL]
- -1.00/+1.00 All Sections
- Mounting Facility Quantity [AKPV]
- 3
- Mounting Hole Diameter [ABTB]
- 0.191 Inches Nominal
- Mounting Method [AXGY]
- Unthreaded Hole
- Lateral Distance Between Mounting Hole Centers [AGTP]
- 3.000 Inches Nominal
- Longitudinal Actuator Effective Electrical Stroke Length [AEFW]
- 1.000 Inches Nominal
- Longitudinal Actuator Travel [AEFT]
- 1.312 Inches Nominal
- Power Dissipation Rating Per Section In Watts [CRGD]
- 0.6 Free Air All Sections
- Reference Number Differentiating Characteristics [ZZZY]
- Modified By Resistance
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance Per Section In Percent [CRSS]
- -10.0/+10.0 All Sections
- Section Quantity [AAPN]
- 2
- Shaft Diameter [ABWV]
- 0.190 Inches Nominal
- Shaft Length [ABXF]
- 2.760 Inches Nominal
- Overall Height [ABKW]
- 0.560 Inches Nominal
- Overall Length [ABHP]
- 4.440 Inches Nominal
- Overall Width [ABMK]
- 1.120 Inches Nominal
- Temp Coefficient Of Resistance Per Section In Ppm Per Deg Celsius [CRFJ]
- -400.0/+400.0 All Sections
- Terminal Location [APXH]
- Rear End
- Terminal Type And Quantity [TTQY]
- 8 Wire Lead
- Thread Length [AASA]
- 1.100 Inches Nominal
