5905-00-690-9183
Wire Wound Fixed Resistor Network
5905006909183 006909183 1768796 M09-2-78K38K M09-3-78K38K
An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of high resistance wire (or ribbon), usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED. View more Wire Wound Fixed Resistor Network
May 2023
12
Marketplace 5905-00-690-9183
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-690-9183 5+ Documents (More...)
(Identification) 1/2 NSN 5905-00-690-9183 (Identification) 2/2 - - 1.
RQST NE Updated Every Day 5905-00-690-9183 RQST Updated Every Day 5905-00-690-9183 RQST NE Related Documents
/fsg-53/fsc-5365/uk
1768796 M09 JavaScript in your web browser . 5365-99-726-2522Rubber Bushing5365997262522 997262522 283
284/M09/012 Managed by United Kingdom NSN Created https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-690-9183
Wire Wound Fixed Resistor Network 006909183 your Account Upgrade 5905-00-690-9183Wire Wound Fixed
Resistor Network5905006909183 006909183 1768796 M09 Guided Drive Pin 5315270004191270004191,M09 011326191
Wire Wound Fixed Resistor Network 006909183 726-2522Rubber Bushing5365997262522 997262522 SSN https
5340/us 5340-00-359-9031 Pipe Hanger 5340003599031 003599031 Fixed Resistor Network5905006909183 006909183
1768796 M09 0544 Estonia (WE) Approved Sources 8465-38-000-0544 NumberManufacturerStatusLINDITASKU SUUR
Restrictions 5905-00-690-9183
5905-00-690-9183 is a Wire Wound Fixed Resistor Network that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-690-9183
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-690-9183
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5905-00-690-9183
- Part Number
- Manufacturer
- Status
- 1768796
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
- M09-2-78K38K
- 80031 - Mepco/Electra Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- M09-3-78K38K
- 80031 - Mepco/Electra Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-00-690-9183
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 38.000 Kilohms
- Electrical Resistance [AAPP]
- 39.000 Kilohms
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 55.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 125.0
- Body Diameter [ABPM]
- 0.500 Inches Nominal
- Body Length [ADAQ]
- 1.688 Inches Nominal
- Identical Value Resistor Quantity [CQRD]
- 1 Highest Resistance Value
- Identical Value Resistor Quantity [CQRD]
- 1 Lowest Resistance Value
- Inclosure Method [AAQZ]
- Encapsulated
- Power Dissipation Rating In Watts [AEFB]
- 0.125 Each Resistor And 0.250 Each Resistor
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance In Percent [AAPQ]
- -0.250/+0.250
- Schematic Diagram Designator [AEBZ]
- Series Network

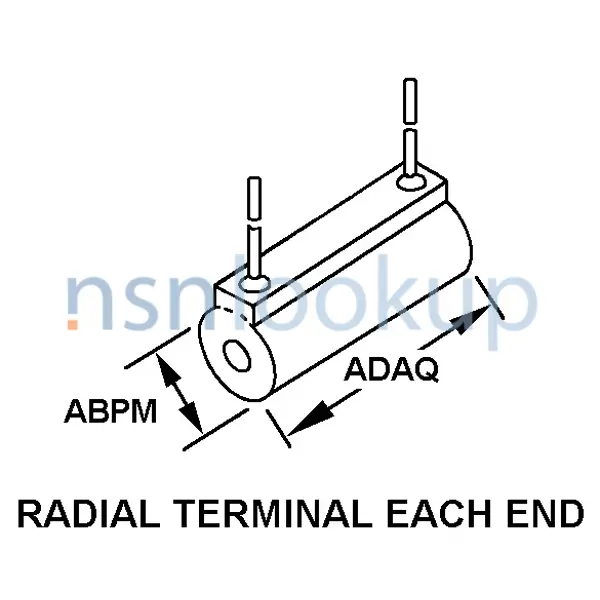

- Style Designator [STYL]
- Radial Terminal Each End
- Terminal Length [ABJT]
- 0.375 Inches Nominal
- Terminal Quantity [AARA]
- 5
- Terminal Type [AARB]
- Tab, Solder Lug
DLA Procurement Analysis 5905-00-690-9183
Management Data 5905-00-690-9183
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5905-00-690-9183
Freight Information 5905-00-690-9183
5905-00-690-9183 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-690-9183 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-690-9183 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-00-690-9183 is not classified as a special type of cargo when transported by water. 5905-00-690-9183 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
