5905-00-642-4822
Wire Wound Fixed Resistor
5905006424822 006424822 MIL-DTL-15109 712011-6ED29893A MILR15109
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. View more Wire Wound Fixed Resistor
January 2024
12
Marketplace 5905-00-642-4822
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-642-4822 5+ Documents (More...)
MILR15109 RESISTOR,FIXED,WIRE WOUND 24 EA NS Request Quotation Updated Every Day 5905-00-642-4822 RQST
NE Updated Every Day 5905-00-642-4822 RQST Updated Every Day 5905-00-642-4822 RQST NE Related Documents
S1766379 3 1-2T239TVIT250HM604SLD 42A7709SUB4PC14 MILR15109 A resistor whose overall ohmic value
MILR15109 RESISTOR,FIXED,WIRE WOUND,INDUCTIVE 24 EA NS Request Quotation Updated Every Day 5905-00-173
MILR15109 A resistor whose ohmic value cannot be adjusted or varied.
https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-642-4822 Wire Wound Fixed Resistor 5905006424822
MILR15109 RESISTOR,FIXED,WIRE WOUND,INDUCTIVE 24 EA NS Request Quotation Updated Every Day 5905-00-100
Wire Wound Fixed Resistor 5905006424822 712011-6ED29893A MILR15109 A resistor whose ohmic value
288A884GVP12 8627447G12 MILR15109 A resistor whose ohmic value cannot be adjusted or varied.
A resistor whose overall ohmic value is fixed; in addition MILR15109 RESISTOR,FIXED,WIRE WOUND 24 EA
Restrictions 5905-00-642-4822
5905-00-642-4822 is a Wire Wound Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5905-00-642-4822
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-642-4822
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5905-00-642-4822
- Part Number
- Manufacturer
- Status
- MIL-DTL-15109
- Manufacturer
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 712011-6ED29893A
- 63743 - Ward Leonard Ct Llc (Active)
- Secondary Buy
- Secondary Buy
- MILR15109
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-00-642-4822
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 0.580 Ohms
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 50.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 425.0
- Body Height [ADAU]
- 3.500 Inches Nominal
- Body Length [ADAQ]
- 30.500 Inches Nominal
- Body Width [ADAT]
- 32.000 Inches Nominal
- Fixed Tap Terminal Type [CQFK]
- Threaded Stud
- Fixed Tap Quantity [AAPR]
- 14
- Inclosure Method [AAQZ]
- Uninclosed
- Power Dissipation Rating In Watts [AEFB]
- 8440.000 Free Air
- Reactance Characteristic [AARE]
- Inductive
- Resistance Tolerance In Percent [AAPQ]
- -10.000/+10.000
- Reliability Indicator [AARG]
- Not Established
- Section Nominal Resistance [CQFD]
- 0.038 Ohms

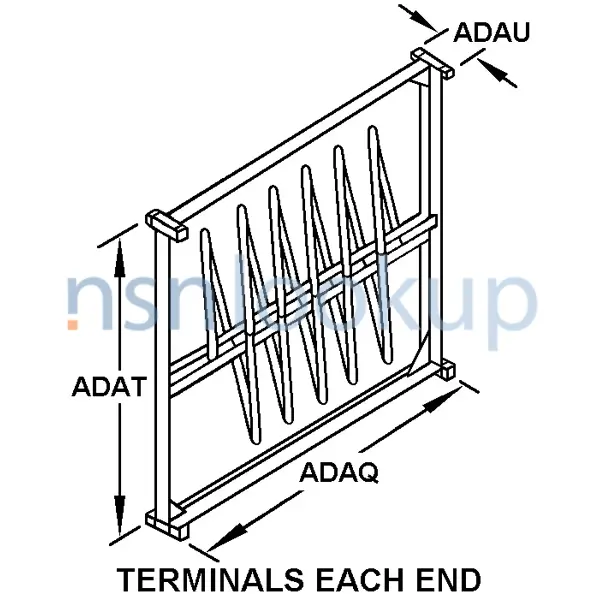

- Style Designator [STYL]
- Terminals Each End
- Terminal Type [AARB]
- Threaded Stud
Similar Supply Items to 5905-00-642-4822
Freight Information 5905-00-642-4822
5905-00-642-4822 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-642-4822 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5905-00-642-4822 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-642-4822 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5905-00-642-4822 is not classified as a special type of cargo when transported by water. 5905-00-642-4822 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
