5905-00-581-6904
Inductive Wire Wound Fixed Resistor
5905005816904 005816904 WL15000-1 WL
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self-supporting. The item must have inherent characteristics of inducing self-inductance. Opposition to current flow is an inherent property of the resistance wire and is manifested by the heat dissipation in the resistor. Exclut s SUPPRESSOR, IGNITION INTERFERENCE. See also RESISTOR (1), FIXED, WIRE WOUND, NONINDUCTIVE. View more Inductive Wire Wound Fixed Resistor
May 2023
16
Marketplace 5905-00-581-6904
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-581-6904 5+ Documents (More...)
WL RESISTOR,FIXED,WIRE WOUND,INDUCTIVE 2 EA NS Request Quotation Updated Every Day 5905-00-581-6904 RQST
NE Updated Every Day 5905-00-581-6904 RQST Updated Every Day 5905-00-581-6904 RQST NE Related Documents
Inductive Wire Wound Fixed Resistor www.nsnlookup.com /fsg-69/fsc-6910/us 6910-01-653-9828 Wl https
//www.nsnlookup.com /fsg-84/fsc-8410/us 8410-01-019-7633 Slacks Wm Poly Wl 8L 8410010197633010197633
9828 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-69/fsc-6910/us 6910-01-653-9828 2948 Wl
6625005591376,WL 559-1376 Coordinate Data Recorder https//www.nsnlookup.com /fsg-69/fsc-6910/us 6910
/fsg-66/fsc-6625/us
Indicator Water Leu 6680009102090 009102090 www.nsnlookup.com /fsg-66/fsc-6625/us 6625-01-597-2976 Wl
https//www.nsnlookup.com /fsg-66/fsc-6625/us 6625-01-597-2948 Wl Dmm Adapter 6625015972948015972948
/fsg-66/fsc-6625/us
6625-01-597-2976 Wl Tk Assembly 6625015972976015972976 -01-597-2976 5+ Documents ( More... ) https//
www.nsnlookup.com /fsg-66/fsc-6625/us 6625-01-597-2976 Wl www.nsnlookup.com /fsg-66/fsc-6625/us https
Restrictions 5905-00-581-6904
5905-00-581-6904 is a Inductive Wire Wound Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-581-6904
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-581-6904
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5905-00-581-6904
- Part Number
- Manufacturer
- Status
- WL15000-1
- Manufacturer
- 83604 - Inresco Inc (Obsolete)
- Original Design
- Original Design
- WL
- 83604 - Inresco Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-00-581-6904
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 105.0
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 85.0
- Body Diameter [ABPM]
- 0.188 Inches Nominal
- Body Length [ADAQ]
- 1.000 Inches Nominal
- Electrical Resistance [AAPP]
- 15.000 Kilohms
- Inclosure Method [AAQZ]
- Encapsulated
- Power Dissipation Rating In Watts [AEFB]
- 1.000 Free Air
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance In Percent [AAPQ]
- -1.000/+1.000

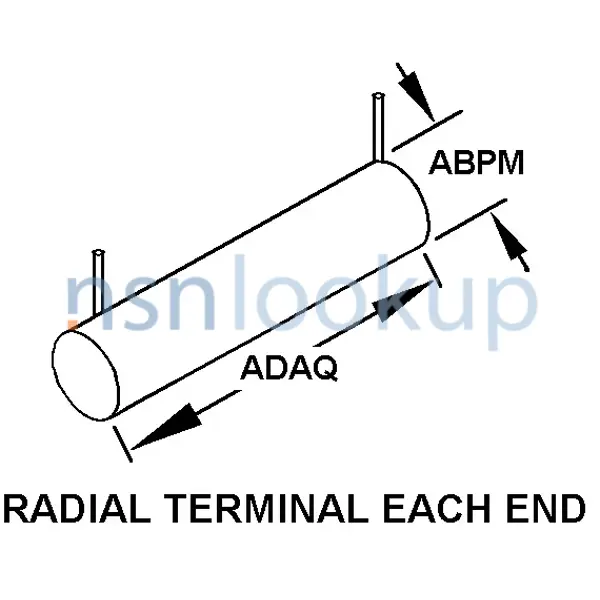

- Style Designator [STYL]
- Radial Terminal Each End
- Terminal Length [ABJT]
- 1.000 Inches Nominal
- Terminal Type [AARB]
- Tab, Solder Lug
- Terminal Width [AFWW]
- 0.062 Inches Nominal
NATO Stock Numbers Related to 5905-00-581-6904
Freight Information 5905-00-581-6904
5905-00-581-6904 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061300. A Sub NMFC of X. It has a NMFC Description of CIRCUIT BREAKER/SWITCH NOI. 5905-00-581-6904 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 34410 which rates the freight between FCL and LCL. 5905-00-581-6904 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-00-581-6904 is not classified as a special type of cargo when transported by water. 5905-00-581-6904 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-00-581-6904
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- No Requirements
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-1249, Paper, Tissue
- No Requirement
- Not Applicable
- --
- No special marking
- A-A-1249, Paper, Tissue
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
