5905-00-556-6849
Nonprecision Wire Wound Variable Resistor
5905005566849 005566849 627521PC2 55-774 SP526-2
A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION. View more Nonprecision Wire Wound Variable Resistor
January 2023
27
Marketplace 5905-00-556-6849
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-556-6849 2+ Documents (More...)
(Identification) 1/2 NSN 5905-00-556-6849 (Identification) 2/2 - - 1.
United States (US) 4. 5905-00-556-6849 Marketplace Restrictions Approved Sources Datasheet Management
Every Day 2590-99-835-4804 RQST NE Restrictions https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-556-6849
Nonprecision Wire Wound Variable Resistor Documents 5905-00-556-6849 1+ Documents ( More... ) https
Restrictions 5905-00-556-6849
5905-00-556-6849 is a Nonprecision Wire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-556-6849
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-556-6849
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Jul 2005
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5905-00-556-6849
- Part Number
- Manufacturer
- Status
- 627521PC2
- Manufacturer
- 10001 - Navair And Navsea Managed Original (Active)
- Primary Buy
- Primary Buy
- 55-774
- 18065 - Samarius Precision Instruments, Inc. (Active)
- Secondary Buy
- Secondary Buy
- SP526-2
- 09017 - Edo (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-00-556-6849
- Characteristic
- Specifications
- FIIG
- Specifications
- A002A0
- Effective Electrical Rotation In Deg Angular Rotation [AEFH]
- 353.0 Nominal
- Electrical Resistance Per Section [CQCC]
- 10.000 Kilohms Single Section
- Actuator Travel Control Feature [CRSX]
- Continuous Motion
- Actuator Type [AEFD]
- Single Shaft
- Ambient Temp In Deg Celsius Per Section At Full Rated Power [CSDH]
- 20.0 Single Section
- Body Diameter [ABPM]
- 3.094 Inches Nominal
- Body Inside Diameter [ADAS]
- 0.188 Inches Nominal
- Body Length [ADAQ]
- 1.500 Inches Nominal
- Body Style [AAQL]
- Cylindrical Studs Mounted
- Features Provided [CBBL]
- Nonmetallic Shaft
- Function Characteristic Per Section [CSBX]
- Single Section Linear
- Function Conformity Per Section [CRGM]
- Single Section Independent Linearity
- Function Conformity Tolerance Per Section [CQFL]
- -1.00/+1.00 Single Section
- Maximum Running Torque [AEFL]
- 3.00 Inch-Ounces
- Maximum Starting Torque [AEFK]
- 5.00 Inch-Ounces
- Mounting Facility Quantity [AKPV]
- 3
- Mounting Hole/Stud Circle Diameter [AEDE]
- 1.750 Inches Nominal
- Mounting Method [AXGY]
- Threaded Hole
- Power Dissipation Rating Per Section In Watts [CRGD]
- 6.0 Free Air Single Section
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance Per Section In Percent [CRSS]
- -2.0/+2.0 Single Section
- Rotary Actuator Travel In Angular Deg [CQCK]
- 360.0 Nominal
- Screw Thread Quantity Per Inch [AJYQ]
- 32.0
- Screw Thread Series Designator [AJYP]
- Unc
- Screw Thread Diameter [AJYN]
- 0.164 Inches Nominal
- Section Quantity [AAPN]
- 1
- Shaft Diameter [ABWV]
- 0.250 Inches Nominal
- Shaft Length [ABXF]
- 1.000 Inches Nominal

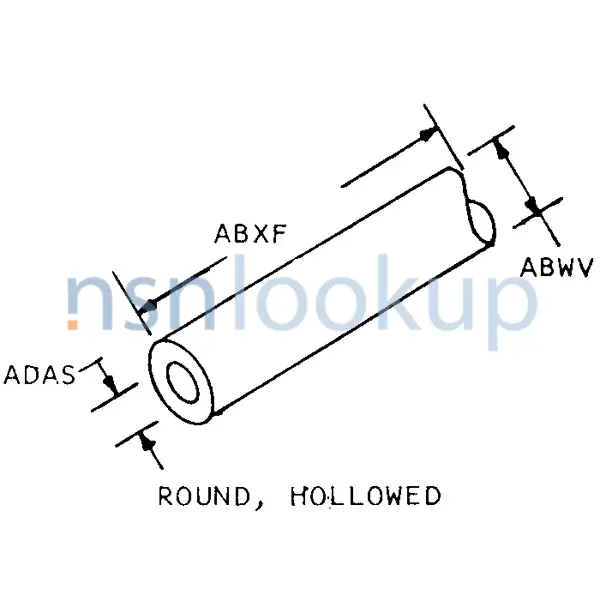

- Shaft Style [AEDX]
- Round, Hollowed
- Overall Diameter [ADAV]
- 2.969 Inches Nominal
- Overall Length [ABHP]
- 1.500 Inches Nominal
- Special Features [FEAT]
- Insulated Shaft 1/4 In. Id Which Does Not Extend Above Mtg Surface
- Terminal Location [APXH]
- Radially Positioned Over Less Than Half The Circumference
- Terminal Type And Quantity [TTQY]
- 3 Tab, Solder Lug
