5905-00-535-9364
Precision Nonwire Wound Variable Resistor
5905005359364 005359364 8524695 13579 8524695-1 12TC1-3200 30223-24725-1 3064 12211-2.85-413
A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The finctional tolerance (linearity) of the output is equal to or less than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually postioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see REHOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE NONWIRE WOUND, NONPRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION. View more Precision Nonwire Wound Variable Resistor
May 2023
29
Marketplace 5905-00-535-9364
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-535-9364 5+ Documents (More...)
resistor in which a sliding or -1 18876 - Us Army Aviation (Active) Primary Buy RNCC 3 RNVC 2 DAC 5 8524695
(Active) Primary Buy RNCC 3 RNVC 2 DAC 5 8524695-1 88277 - The Boeing Company (Active) Primary Buy RNCC
Precision Nonwire Wound Variable Resistor 9364Precision Nonwire Wound Variable Resistor5905005359364 005359364
8524695 13579 8524695-1 12TC1-3200 30223-24725-1 - The Boeing Company (Active) Primary Buy RNCC https
6515-01-506-3064 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-65/fsc-6515/us 6515-01-506-3064
/fsg-65/fsc-6515/us 6515-01-506-3064 /fsg-65/fsc-6515/us 6515-01-506-3064 /fsg-65/fsc-6515/us 6515-01
/www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-535-9363 Nonprecision Wire Wound Variable Resistor 8524695
www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-535-9363 https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-535-9364
enable JavaScript in your web browser . 4320-17-103-3452Reciprocating Pump4320171033452 171033452 13579
TRANSFORMER,POWER 2 EA NS Request Quotation Subscribe to View Vendor Details... 13579 TRANSFORMER,POWER
Restrictions 5905-00-535-9364
5905-00-535-9364 is a Precision Nonwire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5905-00-535-9364
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-535-9364
- Spain (YB01)
- Effective Date:
- 1 Sep 2008
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5905-00-535-9364
- Part Number
- Manufacturer
- Status
- 8524695
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Source Control
- Source Control
- 13579
- 04454 - Sensor Systems, L.L.C. (Active)
- Primary Buy
- Primary Buy
- 8524695-1
- 88277 - The Boeing Company (Active)
- Primary Buy
- Primary Buy
- 8524695-1
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 12TC1-3200
- 19176 - Servo Instrument Corporation (Active)
- Secondary Buy
- Secondary Buy
- 30223-24725-1
- 10112 - General Dynamics Motion Control Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3064
- 04454 - Sensor Systems, L.L.C. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 8524695-1
- 01714 - Lucent Technologies Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 12211-2.85-413
- 80294 - Bourns Instruments Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-00-535-9364
- Characteristic
- Specifications
- FIIG
- Specifications
- A002A0
- Electrical Resistance Per Section [CQCC]
- 41.0 Percent, Rated Amperes C And Better Flooring
- Actuator Travel Control Feature [CRSX]
- Stops
- Actuator Type [AEFD]
- Single Shaft
- Ambient Temp In Deg Celsius Per Section At Full Rated Power [CSDH]
- 20.0 Single Section
- Ambient Temp In Deg Celsius Per Section At Zero Percent Rated Power [CQGN]
- 71.0 Single Section
- Body Height [ADAU]
- 1.750 Inches Maximum
- Body Length [ADAQ]
- 4.062 Inches Nominal

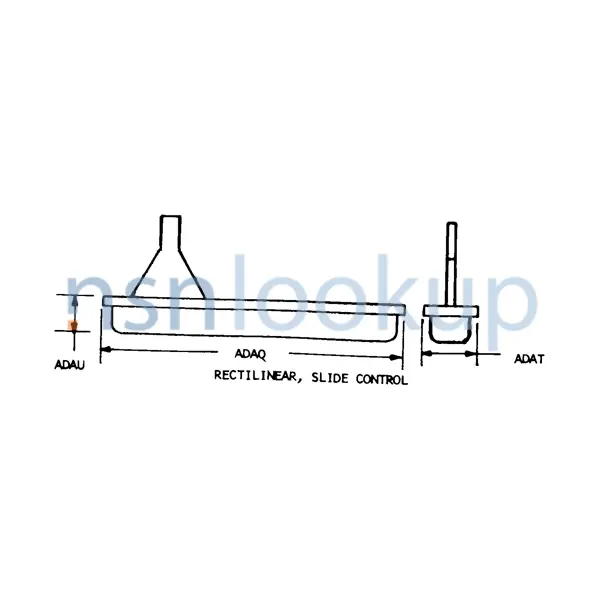

- Body Style [AAQL]
- Rectilinear, Slide Control
- Body Width [ADAT]
- 0.875 Inches Nominal
- Features Provided [CBBL]
- Humidity Proof
- Fragility Factor [AFJN]
- Moderately Rugged
- Function Characteristic Per Section [CSBX]
- 7 Oclock All Primaries
- Function Conformity Per Section [CRGM]
- Single Section Independent Linearity
- Function Conformity Tolerance Per Section [CQFL]
- -1.00/+1.00 Single Section
- Mounting Facility Quantity [AKPV]
- 2
- Mounting Slot Width [ABTD]
- 0.218 Inches Nominal
- Mounting Method [AXGY]
- Slot
- Longitudinal Actuator Effective Electrical Stroke Length [AEFW]
- 2.850 Nominal Inches
- Longitudinal Actuator Travel [AEFT]
- 2.850 Nominal Inches
- Power Dissipation Rating Per Section In Watts [CRGD]
- 0.25 7Th Secondary Quality
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance Per Section In Percent [CRSS]
- -10.0/+10.0 Single Section
- Section Quantity [AAPN]
- 1
- Shaft Diameter [ABWV]
- 0.250 Inches Nominal
- Shaft Length [ABXF]
- 0.561 Inches Nominal
- Shaft Style [AEDX]
- Round, Stepped
- Undercut Diameter [AEDQ]
- 0.126 Nominal Inches
- Undercut Length [AGQL]
- 0.155 Nominal Inches
- Terminal Location [APXH]
- Rear End
- Terminal Type And Quantity [TTQY]
- 1 Connector, Receptacle
- Test Data Document [TEST]
- 88277-8524695 Drawing (This Is The Basic Governing Drawing, Such As A Contractor Drawing, Original Equipment Manufacturer Drawing, Etc.; Excludes Any Specification, Standard Or Other Document That May Be Referenced In A Basic Governing Drawing)
