5905-00-482-5154
Film Fixed Resistor
5905004825154 004825154 MILR55182-6 RNR70C2871FR RNC70C2871FM RNR70C2871FP RNR70C2871FS
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors. View more Film Fixed Resistor
May 2023
19
Marketplace 5905-00-482-5154
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-482-5154 5+ Documents (More...)

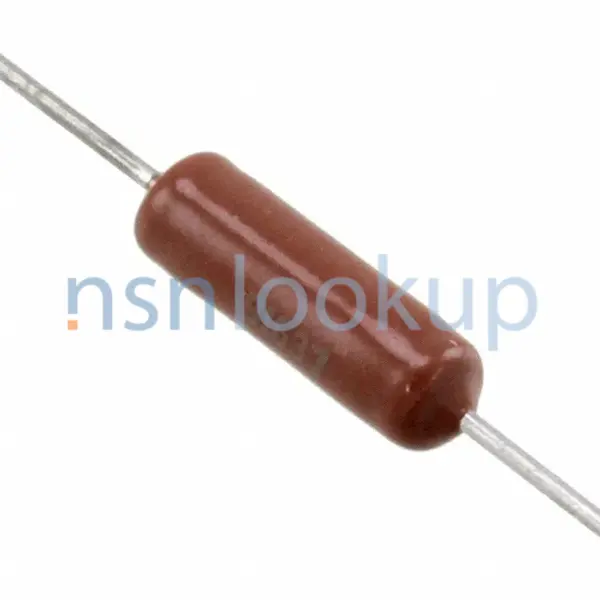

Photo 1/2 NSN 5905-00-482-5154 (Identification) 2/2 - - 1.
Quotation Updated Every Day 5905-00-482-5154 RQST NE Updated Every Day 5905-00-482-5154 RQST Updated
MIL-R-551826 RESISTOR,FIXED,FILM 1 EA NS Request Quotation MILR55182-6 RESISTOR,FIXED,FILM 80 EA NS Request
Film Fixed Resistor 5905004825154 004825154 Updated Every Day 5905-00-482-5154 RQST Updated https
MILR55182-6 RESISTOR,FIXED,FILM 80 EA NS Request Quotation MIL-R-551826 RESISTOR,FIXED,FILM 1 EA NS Request
Film Fixed Resistor 5905004825154 004825154 Agency (DS)IZDiscontinued-Use 5905-00-482-5154 https
Film Fixed Resistor 5905004825154 004825154 $1 a day Upgrade your Account Upgrade 5905-00-482-5154Film
Fixed Resistor5905004825154 004825154 MILR55182-6 RNR70C2871FR RNC70C2871FM RNR70C2871FP RNR70C2871FS
Film Fixed Resistor 5905004825154 004825154 6RNR70C2871FRRNC70C2871FMRNR70C2871FPRNR70C2871FS https
AssyUOMTechnical DocumentQuantative ExpressionDefense Logistics Agency (DS)IZDiscontinued-Use 5905-00-482-5154
Restrictions 5905-00-482-5154
5905-00-482-5154 is a Film Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.
Import and Export 5905-00-482-5154
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-482-5154
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5905-00-482-5154
- Part Number
- Manufacturer
- Status
- RNR70C2871FS
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MILR55182-6
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- RNR70C2871FR
- 81349 - Military Specifications (Active)
- Advisory Reference
- Advisory Reference
- RNC70C2871FM
- 81349 - Military Specifications (Active)
- Advisory Reference
- Advisory Reference
- RNR70C2871FP
- 81349 - Military Specifications (Active)
- Advisory Reference
- Advisory Reference
Datasheet 5905-00-482-5154
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 2.870 Kilohms
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 125.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 175.0
- Body Diameter [ABPM]
- 0.250 Inches Nominal
- Body Length [ADAQ]
- 0.750 Inches Nominal
- Inclosure Method [AAQZ]
- Hermetically Sealed
- Power Dissipation Rating In Watts [AEFB]
- 0.500 Free Air
- Resistance Tolerance In Percent [AAPQ]
- -1.000/+1.000
- Reliability Failure Rate Level In Percent [AARH]
- 0.001
- Reliability Indicator [AARG]
- Established
- Style Designator [STYL]
- Axial Terminal Each End
- Temp Range Of Temp Coefficient In Deg Celsius [AAQH]
- -55.0/+175.0
- Temp Coefficient Of Resistance In Ppm Per Deg Celsius [AAPE]
- -50.0/+50.0
- Terminal Type [AARB]
- Wire Lead
- Test Data Document [TEST]
- 81349-Mil-R-55182 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
DLA Procurement Analysis 5905-00-482-5154
Management Data 5905-00-482-5154
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Sep 2012
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Oct 2011
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- Z
- Discontinued-Use 5905-01-604-6084
- Z
- Defense Logistics Agency (DS)
- I
- Z
- Discontinued-Use 5905-01-604-6084
- Z
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 5905-00-482-5154
Freight Information 5905-00-482-5154
5905-00-482-5154 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-482-5154 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-482-5154 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5905-00-482-5154 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 5905-00-482-5154 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-00-482-5154
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- --
- Special requirements
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5905-00-482-5154 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
