5905-00-467-1394

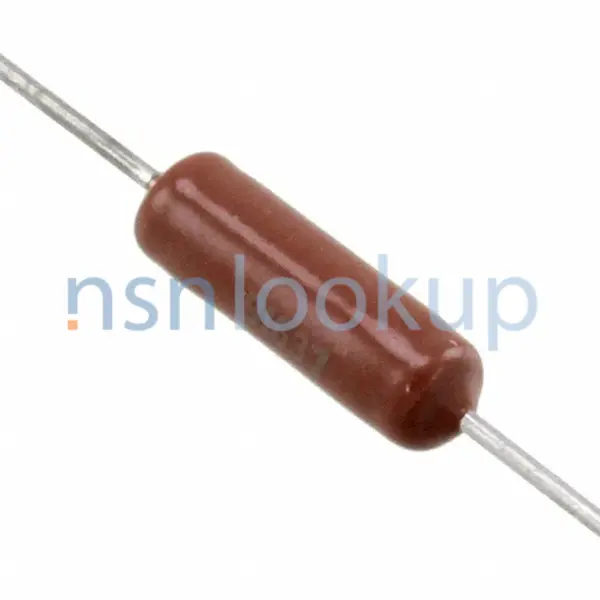

Film Fixed Resistor
5905004671394 004671394 MIL-PRF-55182/6 RNC70J1331DS MILR10509-3 RN70E1331D MILR55182-6
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors. View more Film Fixed Resistor
May 2023
13
Marketplace 5905-00-467-1394
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-467-1394 5+ Documents (More...)
Updated Every Day 5905-00-467-1394 RQST NE Updated Every Day 5905-00-467-1394 RQST Updated Every Day
Updated Every Day 5905-00-467-1394 RQST Updated Every Day 5905-00-467-1394 RQST NE Related Documents
004671394 MIL-PRF-55182/6 RNC70J1331DS MILR10509-3 RN70E1331D MILR55182-6 A resistor whose ohmic value
RN70G4872F MILR55182-6 A resistor whose ohmic value cannot be adjusted RNC70H1381BS MILR10509-3 FIXED
fsc-5905/us 5905-00-200-9615 Film Fixed Resistor 5905002009615 002009615 RN70D2320F RNC70K2320FR MILR55182-6
MILR10509 RESISTOR,FIXED,FILM 2 EA NS Request Quotation Subscribe to View Vendor Details... -3 MILR55182-6
MILR55182-6 A resistor whose https//www.nsnlookup.com /fsg RN70G4422F https//www.nsnlookup.com /fsg
RN70G4872F MILR55182-6 A resistor whose ohmic value cannot be adjusted RNC70H1381BS MILR10509-3 FIXED
RN70G4872F MILR55182-6 A resistor whose ohmic value cannot be adjusted RNC70H1381BS MILR10509-3 FIXED
whose ohmic value cannot be adjusted MILR55182-6 RESISTOR,FIXED https//www.nsnlookup.com /fsg-59/fsc
Restrictions 5905-00-467-1394
5905-00-467-1394 is a Film Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown. This item is sensitive to Electrostatic Discharge.
Import and Export 5905-00-467-1394
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-467-1394
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- GT
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
Approved Sources 5905-00-467-1394
- Part Number
- Manufacturer
- Status
- RNC70J1331DS
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-PRF-55182/6
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MILR55182-6
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MILR10509-3
- 81349 - Military Specifications (Active)
- Transferred
- Transferred
- RN70E1331D
- 81349 - Military Specifications (Active)
- Transferred
- Transferred
Datasheet 5905-00-467-1394
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 1.330 Kilohms
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 125.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 175.0
- Body Diameter [ABPM]
- 0.250 Inches Nominal
- Body Length [ADAQ]
- 0.750 Inches Nominal
- Inclosure Method [AAQZ]
- Encapsulated
- Power Dissipation Rating In Watts [AEFB]
- 0.500 Free Air
- Resistance Tolerance In Percent [AAPQ]
- -0.500/+0.500
- Reliability Failure Rate Level In Percent [AARH]
- 0.001
- Reliability Indicator [AARG]
- Established
- Specification/Standard Data [ZZZK]
- 81349-Mil-R-55182/6 Government Specification
- Style Designator [STYL]
- Axial Terminal Each End
- Temp Range Of Temp Coefficient In Deg Celsius [AAQH]
- -55.0/+175.0
- Temp Coefficient Of Resistance In Ppm Per Deg Celsius [AAPE]
- -25.0/+25.0
- Terminal Type [AARB]
- Wire Lead
- Test Data Document [TEST]
- 81349-Mil-R-55182 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
DLA Procurement Analysis 5905-00-467-1394
Management Data 5905-00-467-1394
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 5905-00-467-1394
Freight Information 5905-00-467-1394
5905-00-467-1394 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-467-1394 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-467-1394 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-00-467-1394 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 5905-00-467-1394 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-00-467-1394
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- --
- Special requirements
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
Contracting Technical Data File (CTDF) 5905-00-467-1394 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
