5905-00-423-7175
Nonprecision Nonwire Wound Variable Resistor
5905004237175 004237175 404-8-02860-253 25641-118
A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION. View more Nonprecision Nonwire Wound Variable Resistor
May 2023
7
Marketplace 5905-00-423-7175
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-423-7175 2+ Documents (More...)
(Identification) 1/2 NSN 5905-00-423-7175 (Identification) 2/2 - - 1.
BUY NE FedMall Updated Every Day 5905-00-423-7175 RQST NE Updated Every Day 5905-00-423-7175 RQST
Variable Resistor 5905999520985999520985 EPSTANDARD https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-423-7175
5905004237175 004237175,404-8-02860-253 5905-00-423-7175Nonprecision Nonwire Wound Variable Resistor5905004237175
Restrictions 5905-00-423-7175
5905-00-423-7175 is a Nonprecision Nonwire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-423-7175
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-423-7175
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5905-00-423-7175
- Part Number
- Manufacturer
- Status
- 404-8-02860-253
- Manufacturer
- K2510 - Tyco Electronic Components Ltd (Active)
- Primary Buy
- Primary Buy
- 25641-118
- 09553 - Marconi Electronics Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 25641-118
- 51190 - Viavi Solutionsllc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 404-8-02860-253
- K1945 - Arcotronics (Scotland) Ltd (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 5905-00-423-7175
- Characteristic
- Specifications
- FIIG
- Specifications
- A002A0
- Effective Electrical Rotation In Deg Angular Rotation [AEFH]
- 280.0 Nominal
- Electrical Resistance Per Section [CQCC]
- 25.0 Kilohms Single Section
- Actuator Travel Control Feature [CRSX]
- Stops
- Actuator Type [AEFD]
- Single Shaft
- Ambient Temp In Deg Celsius Per Section At Full Rated Power [CSDH]
- 25.0 Single Section
- Ambient Temp In Deg Celsius Per Section At Zero Percent Rated Power [CQGN]
- 105.0 Single Section
- Body Diameter [ABPM]
- 1.156 Inches Nominal
- Body Length [ADAQ]
- 0.615 Inches Nominal
- Body Style [AAQL]
- Cylindrical Bushing Mounted
- Mounting Bushing Length [ADAP]
- 0.350 Inches Nominal
- Mounting Method [AXGY]
- Standard Bushing
- Overall Length [ABHP]
- 0.990 Inches Nominal
- Overall Diameter [ADAV]
- 1.468 Inches Nominal
- Power Dissipation Rating Per Section In Watts [CRGD]
- 1.0 Free Air Single Section
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance Per Section In Percent [CRSS]
- -20.0 To 20.0 Single Section
- Rotary Actuator Travel In Angular Deg [CQCK]
- 300.0 Nominal
- Screw Thread Diameter [AJYN]
- 0.375 Inches Nominal
- Screw Thread Quantity Per Inch [AJYQ]
- 32.0
- Screw Thread Series Designator [AJYP]
- Unef
- Section Quantity [AAPN]
- 1
- Shaft Diameter [ABWV]
- 0.090 Inches Nominal
- Shaft Length [ABXF]
- 0.375 Inches Nominal

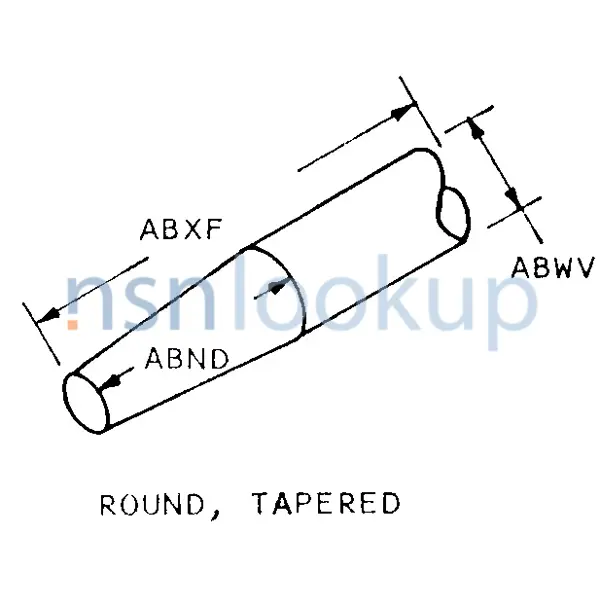

- Shaft Style [AEDX]
- Round, Tapered
- Taper Length [ABND]
- 0.030 Inches Nominal
- Terminal Location [APXH]
- Radially Positioned Over Less Than Half The Circumference
- Terminal Type And Quantity [TTQY]
- 3 Tab, Solder Lug
