5905-00-342-5073
Film Fixed Resistor Network
5905003425073 003425073 8015334 GA51455-25K0HMS DMS 77013B
An arrangement of multiple fixed resistive elements or discrete resistors permanently encased, encapsulated, or potted together, to form an inseparable unit. The resistive elements, consisting of a thin layer of conductive material deposited on or fused to an insulating base, usually are electrically connected to each other and may be arranged in any circuit configuration. Excludes RESISTOR, FIXED (as modified); RESISTOR ASSEMBLY; RESISTOR NETWORK, FIXED-VARIABLE; and RESISTOR SET, MATCHED. View more Film Fixed Resistor Network
November 2023
22
Marketplace 5905-00-342-5073
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-342-5073 5+ Documents (More...)
RQST NE Updated Every Day 5905-00-342-5073 RQST Updated Every Day 5905-00-342-5073 RQST NE Related Documents
5905-00-342-5073 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-342-5073
/fsg-59/fsc-5905/us
Account Upgrade 5905-00-818-4411Film Fixed Resistor5905008184411 008184411 9157928 GA53483-5904 DMS 77013B
Upgrade your Account Upgrade 5905-00-818-4416Film Fixed Resistor5905008184416 008184416 9157932 DMS 77013B
Account Upgrade 5905-00-557-2992Film Fixed Resistor5905005572992 005572992 7611921 170176A2504 DMS 77013B
https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-342-5073 Film Fixed Resistor Network 5905003425073
Account Upgrade 5905-00-818-4409Film Fixed Resistor5905008184409 008184409 9157927 GA53483-5834 DMS 77013B
5905-00-324-4983Inductive Wire Wound Fixed Resistor5905003244983 003244983 8023592 D178620A2001 DMS 77013B
Account Upgrade 5905-00-818-4411Film Fixed Resistor5905008184411 008184411 9157928 GA53483-5904 DMS 77013B
Upgrade your Account Upgrade 5905-00-818-4416Film Fixed Resistor5905008184416 008184416 9157932 DMS 77013B
Restrictions 5905-00-342-5073
5905-00-342-5073 is a Film Fixed Resistor Network that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal. This item is sensitive to Electrostatic Discharge.
Import and Export 5905-00-342-5073
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-342-5073
- US Army (A918)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A196
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5905-00-342-5073
- Part Number
- Manufacturer
- Status
- 8015334
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- GA51455-25K0HMS
- 3B4M0 - Lucent Technologies Inc (Active)
- Secondary Buy
- Secondary Buy
- GA51455-25K0HMS
- 64959 - American Telephone And Telegraph Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- GA51455-25K0HMS
- 06KW9 - Lucent Technologies Inc Dba Federal (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- DMS 77013B
- 16236 - Dla Land And Maritime (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-00-342-5073
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 25.000 Kilohms
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 25.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 65.0
- Body Height [ADAU]
- 0.781 Inches Nominal
- Body Length [ADAQ]
- 3.781 Inches Nominal
- Body Width [ADAT]
- 1.719 Inches Nominal
- Identical Value Resistor Quantity [CQRD]
- 2 Each Resistor
- Inclosure Method [AAQZ]
- Encased
- Power Dissipation Rating In Watts [AEFB]
- 2.000 Total Network
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance In Percent [AAPQ]
- -0.500/+0.500
- Schematic Diagram Designator [AEBZ]
- Ladder Network

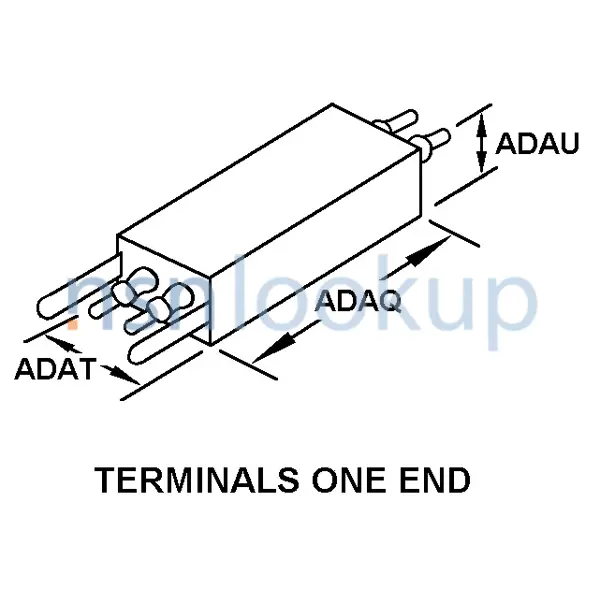

- Style Designator [STYL]
- Terminals One End
- Terminal Length [ABJT]
- 1.094 Inches Nominal
- Terminal Quantity [AARA]
- 3
- Terminal Type [AARB]
- Solder Stud
DLA Procurement Analysis 5905-00-342-5073
- Last Stock Position:
- 8 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5905-00-342-5073
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 5905-00-342-5073
Freight Information 5905-00-342-5073
5905-00-342-5073 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-342-5073 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-342-5073 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-00-342-5073 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 5905-00-342-5073 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
