5905-00-308-6523

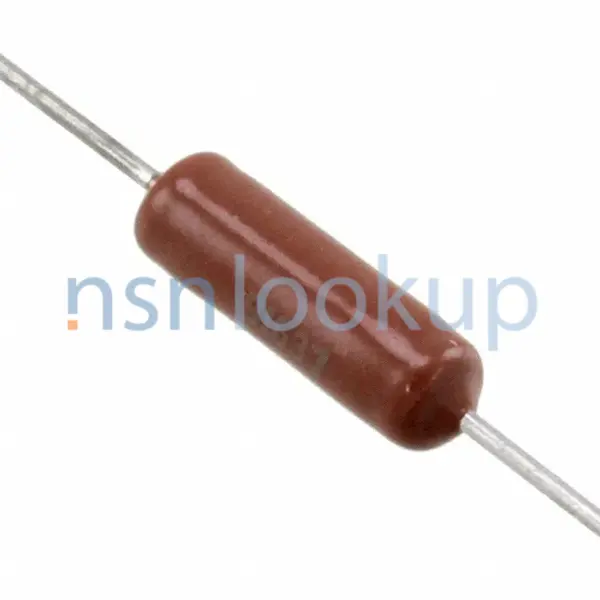

Film Fixed Resistor
5905003086523 003086523 MIL-PRF-55182/6 RNC70C1622FM RNR70C1622FS RN70G1622F MILR10509 MILR55182-6 RNR70C1622FM RNR70C1622FP RNR70C1622FR
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of either a thin layer of conductive material, containing either binders or insulating materials, deposited on an insulated form; or an alloy of metal and ceramic materials, usually fused to an insulated form. Opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the resistor. See also ATTENUATOR, FIXED and RESISTOR, FIXED, COMPOSITION. Excludes carbon composition type resistors. View more Film Fixed Resistor
November 2023
20
Marketplace 5905-00-308-6523
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-308-6523 5+ Documents (More...)
Quotation MILR55182-6 RESISTOR,FIXED,FILM 80 EA NS Request Quotation Updated Every Day 5905-00-308-6523
-3 RN70G4872F MILR55182-6 A resistor whose ohmic value cannot be adjusted RNC70H1381BS MILR10509-3 FIXED
MILR10509 RESISTOR,FIXED,FILM 2 EA NS Request Quotation Subscribe to View Vendor Details...
Film Fixed Resistor 5905003086523 003086523 00-308-6523Film Fixed Resistor5905003086523 003086523
RNR70C4872FS MILR10509-3 RN70G4872F MILR55182-6 A resistor whose ohmic value cannot be adjusted
RNC70J4422FS MILR10509-3 RN70G2004F MIL-C-55182/6 RNR70C2004FM MILR55182-6 A resistor whose ohmic
-3 RESISTOR,FIXED,FILM RNC70K1580FS MILR10509 MILR55182-6 RN70B1581F A resistor whose ohmic value cannot
RNC70K1580FS MILR10509 MILR55182-6 RN70B1581F A resistor whose ohmic value cannot be adjusted
Quotation MIL-R-105093 RESISTOR,FIXED,FILM 3 EA NS Request Quotation MILR10509-3 RESISTOR,FIXED,FILM
RNC70H43R2FS MILR10509 RN70C43R2F RNC70H43R2FR MILR55182-6 A resistor whose ohmic value cannot
Restrictions 5905-00-308-6523
5905-00-308-6523 is a Film Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown. This item is sensitive to Electrostatic Discharge.
Import and Export 5905-00-308-6523
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-308-6523
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HDKE
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
Approved Sources 5905-00-308-6523
- Part Number
- Manufacturer
- Status
- RNR70C1622FS
- Manufacturer
- 81349 - Military Specifications (Active)
- Definitive Standard
- Definitive Standard
- MIL-PRF-55182/6
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MILR55182-6
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- RNR70C1622FM
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- RNR70C1622FP
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- RNR70C1622FR
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- RNC70C1622FM
- 81349 - Military Specifications (Active)
- Advisory Reference
- Advisory Reference
- RN70G1622F
- 81349 - Military Specifications (Active)
- Transferred
- Transferred
- MILR10509
- 81349 - Military Specifications (Active)
- Transferred
- Transferred
Datasheet 5905-00-308-6523
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 16.200 Kilohms
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 125.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 175.0
- Body Diameter [ABPM]
- 0.250 Inches Nominal
- Body Length [ADAQ]
- 0.750 Inches Nominal
- Inclosure Method [AAQZ]
- Hermetically Sealed
- Power Dissipation Rating In Watts [AEFB]
- 0.500 Free Air
- Reliability Failure Rate Level In Percent [AARH]
- 0.001
- Reliability Indicator [AARG]
- Established
- Resistance Tolerance In Percent [AAPQ]
- -1.000/+1.000
- Style Designator [STYL]
- Axial Terminal Each End
- Temp Coefficient Of Resistance In Ppm Per Deg Celsius [AAPE]
- -50.0/+50.0
- Temp Range Of Temp Coefficient In Deg Celsius [AAQH]
- -55.0/+175.0
- Terminal Type [AARB]
- Wire Lead
- Test Data Document [TEST]
- 81349-Milr55182 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Type Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
