5905-00-279-5440
Noninductive Wire Wound Fixed Resistor
5905002795440 002795440 18D180 18138 P320A377
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. View more Wire Wound Fixed Resistor
January 2023
17
Marketplace 5905-00-279-5440
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-279-5440 5+ Documents (More...)
/fsg-59/fsc-5905/us
5905-00-279-5440 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-279-5440
RQST NE Updated Every Day 5905-00-279-5440 RQST Updated Every Day 5905-00-279-5440 RQST NE Related Documents
www.nsnlookup.com /fsg-44/fsc-4440/us 4440-01-543-1276 Dehydrator Cartridge 4440015431276015431276 18138
https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-279-5440 Noninductive Wire Wound Fixed Resistor
Noninductive Wire Wound Fixed Resistor www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-279-5440 https
for $1 a day Upgrade your Account Upgrade 6625 -01-138-9494Ammeter6625011389494 011389494621-18138 -
Quotation FFB171 BEARING,BALL,ANNULAR 26 EA NS Request https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-279-5440
Resistor your Account Upgrade 5905-00-279-5440Noninductive Wire Wound Fixed Resistor5905002795440 002795440
enable JavaScript in your web browser . 5970-14-274-4669Washer Insulator5970142744669 142744669425-18138
152-9875 Fuel Injection Nozzle 2910001529875 001529875 Washer Insulator 5970142744669142744669 425-18138
Restrictions 5905-00-279-5440
5905-00-279-5440 is a Noninductive Wire Wound Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-279-5440
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-279-5440
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5905-00-279-5440
- Part Number
- Manufacturer
- Status
- 18138
- Manufacturer
- 00798 - Mutron Corp (Obsolete)
- Original Design
- Original Design
- 18D180
- 63743 - Ward Leonard Ct Llc (Active)
- Secondary Buy
- Secondary Buy
- P320A377
- 00798 - Mutron Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-00-279-5440
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 180.000 Ohms
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 40.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 340.0
- Body Diameter [ABPM]
- 1.375 Inches Nominal
- Body Length [ADAQ]
- 0.375 Inches Nominal
- Inclosure Method [AAQZ]
- Encapsulated
- Power Dissipation Rating In Watts [AEFB]
- 18.000 Free Air
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance In Percent [AAPQ]
- -10.000/+10.000

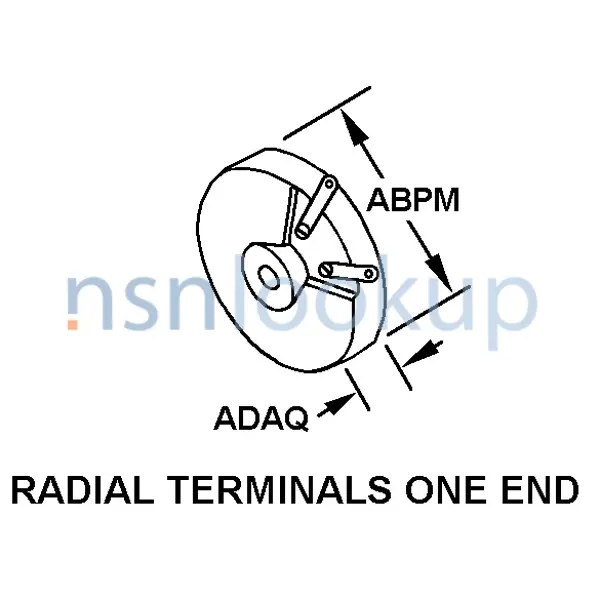

- Style Designator [STYL]
- Radial Terminals One End
- Terminal Length [ABJT]
- 0.375 Inches Nominal
- Terminal Type [AARB]
- Tab, Solder Lug
- Terminal Width [AFWW]
- 0.188 Inches Nominal
NATO Stock Numbers Related to 5905-00-279-5440
Freight Information 5905-00-279-5440
5905-00-279-5440 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-279-5440 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5905-00-279-5440 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-279-5440 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5905-00-279-5440 is not classified as a special type of cargo when transported by water. 5905-00-279-5440 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
