5905-00-258-6430
Adjustable Resistor
5905002586430 002586430 56-2014
A resistor whose overall ohmic value is fixed; in addition, it has one or more movable terminals which are designed to be set and fixed prior to use, to include any desired value of resistance within the range of the complete resistor. The opposition to the flow of current is an inherent property of the material used and is manifest in the heat dissipated in the item itself. View more Adjustable Resistor
May 2023
22
Marketplace 5905-00-258-6430
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-258-6430 1+ Documents (More...)
Day 5905-00-258-6430 RQST Updated Every Day 5905-00-258-6430 RQST NE Related Documents 5905-00-258-6430
Datasheet Management Day 5905-00-258-6430 RQST Updated Every Day 5905-00-258-6430 RQST NE Related Documents
Restrictions 5905-00-258-6430
5905-00-258-6430 is a Adjustable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown. This item is sensitive to Electrostatic Discharge.
Import and Export 5905-00-258-6430
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-258-6430
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
- US Air Force (FXGX)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXTX
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5905-00-258-6430
- Part Number
- Manufacturer
- Status
- 56-2014
- Manufacturer
- 09062 - Crane Electronics, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5905-00-258-6430
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 390.000 Ohms
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 40.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 105.0
- Body Diameter [ABPM]
- 0.187 Inches Nominal
- Body Length [ADAQ]
- 2.250 Inches Nominal
- Inclosure Method [AAQZ]
- Uninclosed
- Power Dissipation Rating In Watts [AEFB]
- 0.500 Free Air
- Reactance Characteristic [AARE]
- Inductive
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance In Percent [AAPQ]
- -5.000/+5.000

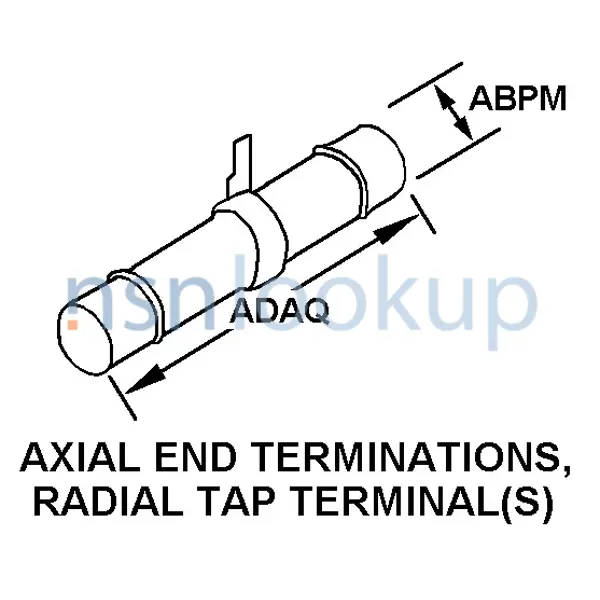

- Style Designator [STYL]
- Axial End Terminations, Radial Tap Terminal(S)
- Terminal Type [AARB]
- Wire Lead
DLA Procurement Analysis 5905-00-258-6430
Management Data 5905-00-258-6430
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- TE
- Other Electronics Equipment
Tool Kits Electronic
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5905-00-258-6430
Freight Information 5905-00-258-6430
5905-00-258-6430 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-258-6430 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-258-6430 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-00-258-6430 is classified as an Electrostatic Sensitive Device (ESD) when transported by water. 5905-00-258-6430 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-00-258-6430
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-DTL-17667, Neutral Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-DTL-17667, Neutral Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5905-00-258-6430 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
