5905-00-252-7030
Nonprecision Nonwire Wound Variable Resistor
5905002527030 002527030 U50
A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION. View more Nonprecision Nonwire Wound Variable Resistor
January 2023
8
Marketplace 5905-00-252-7030
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-252-7030 5+ Documents (More...)
252-7030 RQST NE Updated Every Day 5905-00-252-7030 RQST Updated Every Day 5905-00-252-7030 RQST NE Related
-00-252-70305905002527030002527030,U50 U50 RESISTOR,VARIABLE,NONWIRE WOUND,NONPRECISION 3 EA NS Request
https//www.nsnlookup.com /fsg-59/fsc-5960/de 5960-12-129-6260 Electron Tube 5960121296260121296260,U50
Electron Tube 5960121296260121296260,U50 how to enable JavaScript in your web browser . 5960-12 -129
-1.0038 DIN1026-U50-S235JR DIN1026-1.0038-50 A structural shape fabricated from a ferrous or nonferrous
-1.0038DIN1026-U50-S235JRDIN1026-1.0038-50 A structural shape fabricated from a ferrous RQST NE Updated
Mechanical Puller 5120142364039142364039,U50 to enable JavaScript in your web browser . 5120-14 -236
U50 An inclosure, including two or more electrodes, in which a flow of electrons may occur through a
Electron Tube 5960121296260121296260,U50 how to enable JavaScript in your web browser . 5960-12 -129
Mechanical Puller 5120142364039142364039,U50 to enable JavaScript in your web browser . 5120-14 -236
Restrictions 5905-00-252-7030
5905-00-252-7030 is a Nonprecision Nonwire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-252-7030
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-252-7030
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 2005
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5905-00-252-7030
- Part Number
- Manufacturer
- Status
- U50
- Manufacturer
- 37942 - Yosemite Investment Inc (Active)
- Incomplete Reference
- Incomplete Reference
Datasheet 5905-00-252-7030
- Characteristic
- Specifications
- FIIG
- Specifications
- A002A0
- Effective Electrical Rotation In Deg Angular Rotation [AEFH]
- 309.0 Nominal
- Electrical Resistance Per Section [CQCC]
- 50.0 Kilohms Single Section
- Actuator Travel Control Feature [CRSX]
- Stops
- Actuator Type [AEFD]
- Single Shaft
- Body Diameter [ABPM]
- 0.938 Inches Nominal
- Body Length [ADAQ]
- 0.516 Inches Nominal
- Body Style [AAQL]
- Cylindrical Bushing Mounted
- Channel Length [AEDH]
- 2.500 Inches Nominal
- Mounting Bushing Length [ADAP]
- 0.250 Inches Nominal
- Mounting Method [AXGY]
- Standard Bushing
- Nonturn Device Location [AEFN]
- At 3 Oclock And At 9 Oclock
- Nonturn Device Radius [AEFP]
- 0.438 Inches Nominal
- Overall Length [ABHP]
- 2.891 Inches Nominal
- Power Dissipation Rating Per Section In Watts [CRGD]
- 0.5 Free Air Single Section
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance Per Section In Percent [CRSS]
- -10.0 To 10.0 Single Section
- Rotary Actuator Travel In Angular Deg [CQCK]
- 316.0 Nominal
- Screw Thread Diameter [AJYN]
- 0.375 Inches Nominal
- Screw Thread Quantity Per Inch [AJYQ]
- 32.0
- Screw Thread Series Designator [AJYP]
- Unef
- Section Quantity [AAPN]
- 1
- Shaft Diameter [ABWV]
- 0.250 Inches Nominal

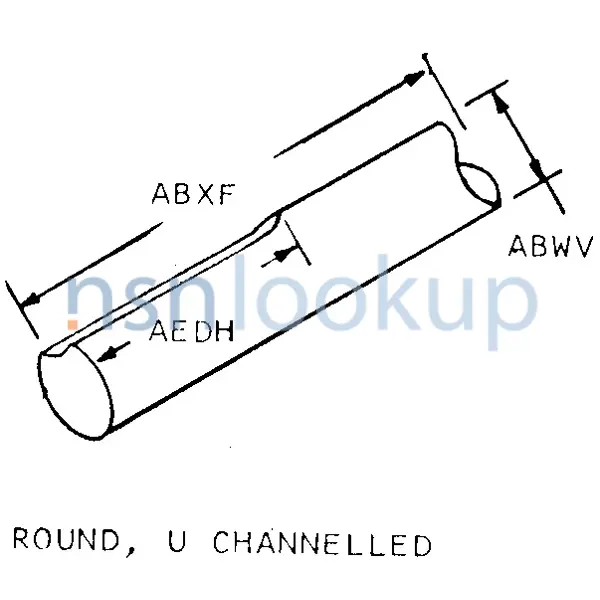

- Shaft Style [AEDX]
- Round, U Channelled
- Shaft Length [ABXF]
- 3.000 Inches Nominal
- Terminal Location [APXH]
- Radially Positioned Over Less Than Half The Circumference
- Terminal Type And Quantity [TTQY]
- 3 Tab, Solder Lug
Similar Supply Items to 5905-00-252-7030
Freight Information 5905-00-252-7030
5905-00-252-7030 has freight characteristics.. 5905-00-252-7030 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
Packaging Data 5905-00-252-7030
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566 or PPP-B-676, Folding or Setup Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
