5905-00-234-3887
Motor Driven Variable Resistor
5905002343887 002343887 2663612 931R500KL.25G141 943R500KL25G70
A resistor, whose resistance value is controlled by an electric motor, which is coupled to the resistor shaft by a friction type clutch. View more Motor Driven Variable Resistor
May 2023
16
Marketplace 5905-00-234-3887
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-234-3887 2+ Documents (More...)
RQST NE Updated Every Day 5905-00-234-3887 RQST Updated Every Day 5905-00-234-3887 RQST NE Related Documents
5905-00-234-3887 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-234-3887
Motor Driven Variable Resistor 5905002343887 www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-234-
AssyUOMTechnical DocumentQuantative ExpressionDepartment of the Navy (DN)NAConsolidated With 5905-00-234-3887
Restrictions 5905-00-234-3887
5905-00-234-3887 is a Motor Driven Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5905-00-234-3887
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-234-3887
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5905-00-234-3887
- Part Number
- Manufacturer
- Status
- 2663612
- Manufacturer
- 30003 - Naval Air Systems Command Managed (Active)
- Primary Buy
- Primary Buy
- 931R500KL.25G141
- 73138 - Bi Technologies Corporation (Active)
- Secondary Buy
- Secondary Buy
- 943R500KL25G70
- 73138 - Bi Technologies Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-00-234-3887
- Characteristic
- Specifications
- FIIG
- Specifications
- A502H0
- Effective Electrical Rotation In Deg Angular Rotation [AEFH]
- 3600.0 Nominal
- Electrical Resistance Per Section [CQCC]
- 500.0 Kilohms Single Section
- Body Height [ADAU]
- 1.812 Inches Nominal
- Body Length [ADAQ]
- 3.905 Inches Nominal

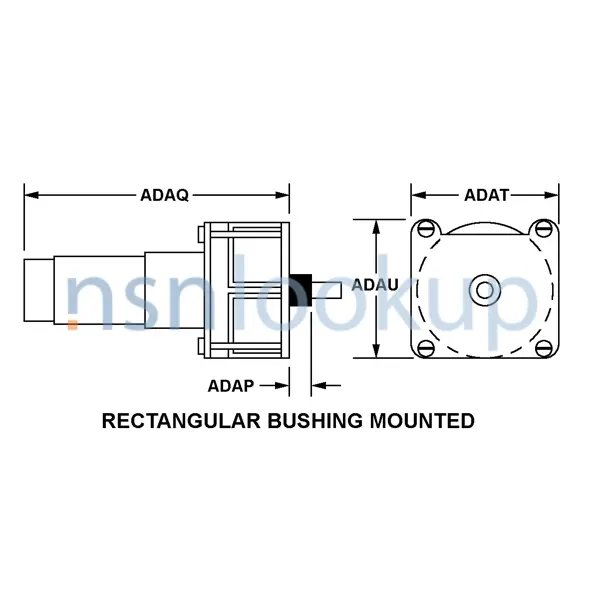

- Body Style [AAQL]
- Rectangular Bushing Mounted
- Body Width [ADAT]
- 1.812 Inches Nominal
- Gear Ratio [CYEK]
- 1.70
- Function Characteristic Per Section [CSBX]
- Single Section Linear
- Function Conformity Per Section [CRGM]
- Single Section Independent Linearity
- Function Conformity Tolerance Per Section [CQFL]
- -0.25/+0.25 Single Section
- Motor Type [ANJN]
- Induction
- Motor Voltage Type And Rating In Volts [CYEH]
- 4.5 Dc
- Mounting Bushing Length [ADAP]
- 0.375 Inches Nominal
- Mounting Method [AXGY]
- Standard Bushing
- Section Quantity [AAPN]
- 1
- Power Dissipation Rating Per Section In Watts [CRGD]
- 5.0 Free Air Single Section
- Resistance Element Type Per Section [CYEG]
- Single Section Wire Wound
- Resistance Tolerance Per Section In Percent [CRSS]
- -3.0/+3.0 Single Section
- Screw Thread Diameter [AJYN]
- 0.375 Inches Nominal
- Screw Thread Quantity Per Inch [AJYQ]
- 32.0
- Screw Thread Series Designator [AJYP]
- Unef
- Shaft Diameter [ABWV]
- 0.2494 Inches Minimum And 0.2497 Inches Maximum

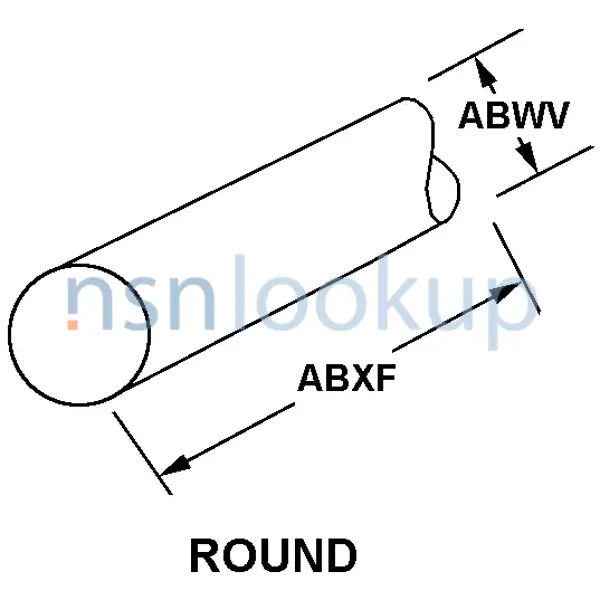

- Shaft Style [AEDX]
- Round
- Shaft Length [ABXF]
- 0.812 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 2 Pin And 3 Tab, Solder Lug
DLA Procurement Analysis 5905-00-234-3887
Management Data 5905-00-234-3887
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5905-00-234-3887
Freight Information 5905-00-234-3887
5905-00-234-3887 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-234-3887 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-234-3887 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5905-00-234-3887 is not classified as a special type of cargo when transported by water. 5905-00-234-3887 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-00-234-3887
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5905-00-234-3887 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
