5905-00-226-9576
Inductive Wire Wound Fixed Resistor
5905002269576 002269576 1-14TE57FS330 A1179
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. View more Wire Wound Fixed Resistor
May 2023
27
Marketplace 5905-00-226-9576
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-226-9576 5+ Documents (More...)
NE Updated Every Day 5905-00-226-9576 RQST Updated Every Day 5905-00-226-9576 RQST NE Related Documents
5905-00-226-9576 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-226-9576
Inductive Wire Wound Fixed Resistor,A1179 United States (US) 4. 5905-00-226-9576 Marketplace Restrictions
Approved Sources Datasheet Management RQST NE Updated Every Day 5905-00-226-9576 RQST Updated Every
/fsg-81/fsc-8140/uk 8140-99-462-6538 Munitions Shipping And Storage Container DD.D.17538DD 1293ACA A1179
Inductive Wire Wound Fixed Resistor,A1179 6040Circuit Card Assembly5998993086040 993086040 183-
www.nsnlookup.com /fsg-59/fsc-5998/uk 5998-99-308-6040 Circuit Card Assembly 5998993086040993086040 A1179
Inductive Wire Wound Fixed Resistor,A1179 Circuit Card Assembly 5998993086040993086040 enable JavaScript
https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-226-9576 Inductive Wire Wound Fixed Resistor,A1179
/fsg-47/fsc-4730/us 4730-01-188-8785 Packing Nut 4730011888785 011888785,A1179 Day 5133-15-183-4055
Restrictions 5905-00-226-9576
5905-00-226-9576 is a Inductive Wire Wound Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-226-9576
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-226-9576
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- NIND
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5905-00-226-9576
- Part Number
- Manufacturer
- Status
- 1-14TE57FS330
- Manufacturer
- 44655 - Ohmite Holding, L.L.C. (Active)
- Primary Buy
- Primary Buy
- A1179
- 44655 - Ohmite Holding, L.L.C. (Active)
- Primary Buy
- Primary Buy
Datasheet 5905-00-226-9576
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 330.000 Ohms
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 40.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 340.0
- Body Height [ADAU]
- 0.250 Inches Nominal
- Body Length [ADAQ]
- 1.250 Inches Nominal
- Body Width [ADAT]
- 1.000 Inches Nominal
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Length [AEBY]
- 1.750 Inches Nominal
- Heat Sink Thickness [AAQE]
- 0.047 Inches
- Heat Sink Width [AAQB]
- 10.000 Inches
- Heat Sink Length [AAQA]
- 10.000 Inches
- Heat Sink Material [AAPZ]
- Steel
- Mounting Hole Size [BYML]
- 0.156 Inches Nominal
- Inclosure Method [AAQZ]
- Encapsulated
- Power Dissipation Rating In Watts [AEFB]
- 30.000 Heat Sink
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance In Percent [AAPQ]
- -10.000/+10.000

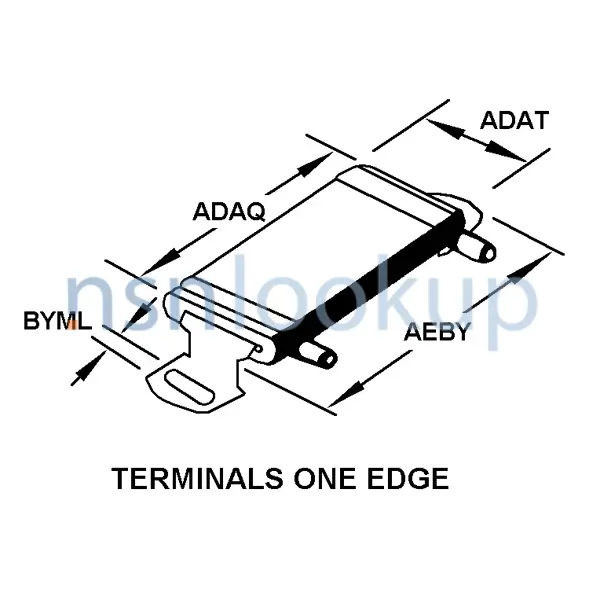

- Style Designator [STYL]
- Terminals One Edge
- Terminal Length [ABJT]
- 0.500 Inches Nominal
- Terminal Type [AARB]
- Tab, Solder Lug
- Terminal Width [AFWW]
- 0.188 Inches Nominal
Weapon Systems (WSDC) 5905-00-226-9576
DLA Procurement Analysis 5905-00-226-9576
Management Data 5905-00-226-9576
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5905-00-226-9576
Freight Information 5905-00-226-9576
5905-00-226-9576 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062800. A Sub NMFC of X. It has a NMFC Description of RADIO/TV RECEIVING SET CHASSIS ETC. 5905-00-226-9576 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49770 which rates the freight between FCL and LCL. 5905-00-226-9576 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5905-00-226-9576 is not classified as a special type of cargo when transported by water. 5905-00-226-9576 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-00-226-9576
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- No Requirements
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-1249, Paper, Tissue
- No Requirement
- Not Applicable
- --
- Special requirements
- A-A-1249, Paper, Tissue
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
Contracting Technical Data File (CTDF) 5905-00-226-9576 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
