5905-00-195-4309
Inductive Wire Wound Fixed Resistor
5905001954309 001954309 RX1
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. View more Wire Wound Fixed Resistor
January 2023
13
Marketplace 5905-00-195-4309
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-195-4309 5+ Documents (More...)
Inductive Wire Wound Fixed Resistor,RX1 5905-00-195-4309 5+ Documents ( More... ) https//www.nsnlookup.com
Wound Fixed Resistor,RX1 Wire Wound Fixed Resistor,RX1 ) https//www.nsnlookup.com /fsg-59/fsc-5905/us
) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-195-4309 Inductive Wire Wound Fixed Resistor,
RX1 Wound Fixed Resistor,RX1 ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-249-5486 Inductive
-60/fsc-6030/us 6030-01-630-3669 /fsg-60/fsc-6030/us 6030-01-630-3669 Every Day 6030-01-630-3669 HD-RX1
a day Upgrade your Account Upgrade 6030-01-630-3669Light Signal Receiver6030016303669 016303669 HD-RX1
https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-102-0144 Noninductive Wire Wound Fixed Resistor,RX1
RX1 Inductive Wire Wound Fixed Resistor,RX1RX1 A resistor whose https//www.nsnlookup.com /fsg-60/fsc
Inductive Wire Wound Fixed Resistor,RX1 Sensitive Switch 5930176050956176050956 enable JavaScript
your Account Upgrade 5905-00-102-0144Noninductive Wire Wound Fixed Resistor5905001020144 001020144 RX1
Restrictions 5905-00-195-4309
5905-00-195-4309 is a Inductive Wire Wound Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-195-4309
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-195-4309
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5905-00-195-4309
- Part Number
- Manufacturer
- Status
- RX1
- Manufacturer
- 56289 - Sprague Electric Co World Hqs (Active)
- Incomplete Reference
- Incomplete Reference
Datasheet 5905-00-195-4309
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 262.700 Ohms
- Resistance Tolerance In Percent [AAPQ]
- -1.000 To 1.000
- Power Dissipation Rating In Watts [AEFB]
- 2.500 Free Air
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 25.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 150.0
- Inclosure Method [AAQZ]
- Encapsulated

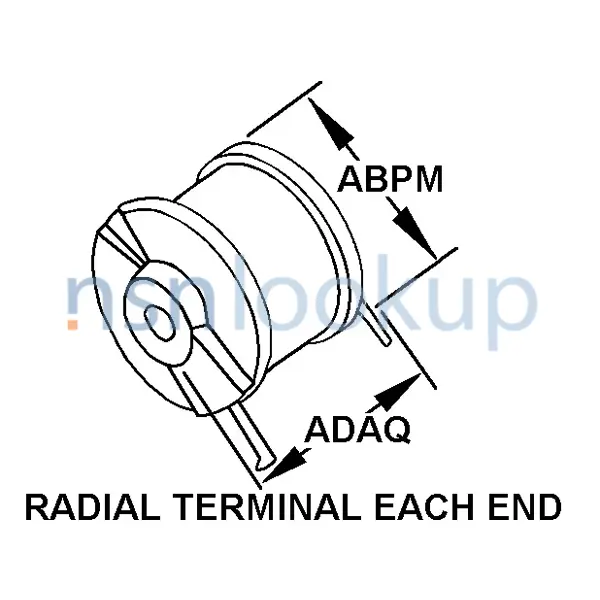

- Style Designator [STYL]
- Radial Terminal Each End
- Body Length [ADAQ]
- 0.625 Inches Nominal
- Terminal Type [AARB]
- Tab, Solder Lug
- Terminal Length [ABJT]
- 0.250 Inches Nominal
- Terminal Width [AFWW]
- 0.156 Inches Nominal
Similar Supply Items to 5905-00-195-4309
Freight Information 5905-00-195-4309
5905-00-195-4309 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062800. A Sub NMFC of X. It has a NMFC Description of RADIO/TV RECEIVING SET CHASSIS ETC. 5905-00-195-4309 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49770 which rates the freight between FCL and LCL. 5905-00-195-4309 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5905-00-195-4309 is not classified as a special type of cargo when transported by water. 5905-00-195-4309 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
