5905-00-186-2330
Noninductive Wire Wound Fixed Resistor
5905001862330 001862330 1AG D166860AG
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. View more Wire Wound Fixed Resistor
January 2023
18
Marketplace 5905-00-186-2330
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-186-2330 5+ Documents (More...)
5905-00-186-2330 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-186-2330
or varied. 5905-00-186-2330 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905
60716-1 INDICATOR,TURN AND SLIP 49 EA NS Request Quotation Subscribe to View Vendor Details... 3932-1AG-A1
-1 INDICATOR,TURN AND SLIP RQST NS Request Quotation Subscribe to View Vendor Details... 3932-1AG-A1-
003 479-021 1AG 003 479-02 An item conforming to LIGHT (1) which, when installed on a vehicle, projects
Noninductive Wire Wound Fixed Resistor,1AG -0575 Lampholder 6250121860575121860575 910/1AG https
Noninductive Wire Wound Fixed Resistor,1AG LPF-G6,35-250V-KERAMIK-EINBAU An electric fitting https
003 434-251 An item conforming to LIGHT (1) which to View Vendor Details... 3932-1AG-A1- https Kgaa
300MM KABEL, AMP6,3X0,8 32550-45000 910-1AG 910/1AG LPF-G6,35-250V-KERAMIK-EINBAU An electric fitting
https//www.nsnlookup.com /fsg-62/fsc-6250/de 6250-12-186-0575 Lampholder 6250121860575121860575 910/1AG
Restrictions 5905-00-186-2330
5905-00-186-2330 is a Noninductive Wire Wound Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-186-2330
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-186-2330
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5905-00-186-2330
- Part Number
- Manufacturer
- Status
- 1AG
- Manufacturer
- 64959 - American Telephone And Telegraph Co (Replaced)
- Original Design
- Original Design
- 1AG
- 70408 - At And T Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- D166860AG
- 70408 - At And T Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- D166860AG
- 64959 - American Telephone And Telegraph Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-00-186-2330
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 1.000 Kilohms
- Resistance Tolerance In Percent [AAPQ]
- -0.500 To 0.500
- Power Dissipation Rating In Watts [AEFB]
- 1.250 Free Air
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 25.0
- Inclosure Method [AAQZ]
- Encapsulated

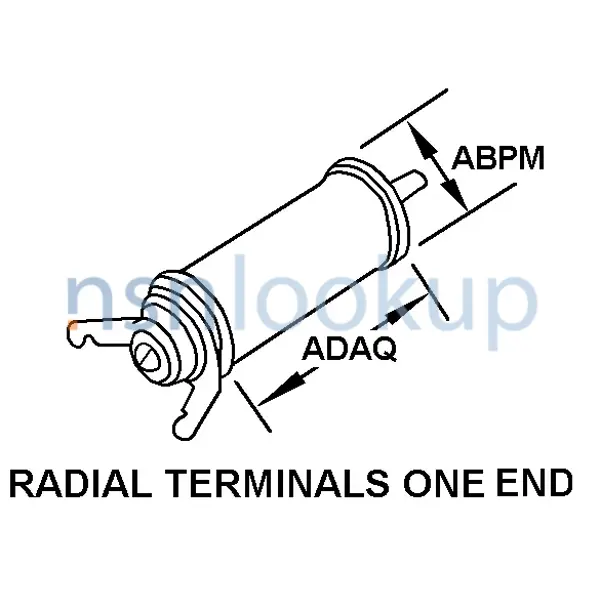

- Style Designator [STYL]
- Radial Terminals One End
- Body Diameter [ABPM]
- 0.500 Inches Nominal
- Body Length [ADAQ]
- 1.250 Inches Nominal
- Terminal Type [AARB]
- Tab, Solder Lug
- Terminal Width [AFWW]
- 0.187 Inches Nominal
Similar Supply Items to 5905-00-186-2330
Freight Information 5905-00-186-2330
5905-00-186-2330 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-186-2330 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5905-00-186-2330 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-186-2330 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5905-00-186-2330 is not classified as a special type of cargo when transported by water. 5905-00-186-2330 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
