5905-00-174-5845
Inductive Wire Wound Fixed Resistor
5905001745845 001745845 N783 F1G10PCR27 F1G13PCN783 F1G10PCR33 F1G10PCR21 F1G10PCR24 F1G10PCR30 F1G11PC73
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. View more Wire Wound Fixed Resistor
May 2023
17
Marketplace 5905-00-174-5845
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-174-5845 5+ Documents (More...)
N783 RESISTOR,FIXED,WIRE WOUND,INDUCTIVE 20 EA NS Request Quotation Updated Every Day 5905-00-174-5845
5905-00-174-5845 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-174-5845
Upgrade for $1 a day Upgrade your Account Upgrade 6545-01-529-9040Medical Supply Cbt Hosp 164 Bed N783
Inductive Wire Wound Fixed Resistor,N783 N783 RESISTOR,FIXED,WIRE WOUND,INDUCTIVE 20 EA NS Request
-2005 Medical Material Set6545015299040 015299040 05-0849 6545NCM050897 UA N783-2005 Managed by United
Inductive Wire Wound Fixed Resistor,N783 05-08496545NCM050897UA N783-2005 Managed by United https
Upgrade for $1 a day Upgrade your Account Upgrade 6545-01-529-9040Medical Supply Cbt Hosp 164 Bed N783
Inductive Wire Wound Fixed Resistor,N783 N783 RESISTOR,FIXED,WIRE WOUND,INDUCTIVE 20 EA NS Request
/fsg-53/fsc-5310/us 5310-00-176-8115 Hexagon Slotted Plain Nut 5310001768115 08496545NCM050897 UA N783
Restrictions 5905-00-174-5845
5905-00-174-5845 is a Inductive Wire Wound Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-174-5845
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-174-5845
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5905-00-174-5845
- Part Number
- Manufacturer
- Status
- N783
- Manufacturer
- 21226 - Princeton Tool Inc (Active)
- Primary Buy
- Primary Buy
- F1G10PCR27
- 21226 - Princeton Tool Inc (Active)
- Primary Buy
- Primary Buy
- F1G13PCN783
- 21226 - Princeton Tool Inc (Active)
- Primary Buy
- Primary Buy
- F1G10PCR33
- 21226 - Princeton Tool Inc (Active)
- Primary Buy
- Primary Buy
- F1G10PCR21
- 21226 - Princeton Tool Inc (Active)
- Primary Buy
- Primary Buy
- F1G10PCR24
- 21226 - Princeton Tool Inc (Active)
- Primary Buy
- Primary Buy
- F1G10PCR30
- 21226 - Princeton Tool Inc (Active)
- Primary Buy
- Primary Buy
- F1G11PC73
- 21226 - Princeton Tool Inc (Active)
- Primary Buy
- Primary Buy
Datasheet 5905-00-174-5845
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 50.000 Ohms
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 40.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 140.0
- Body Height [ADAU]
- 0.312 Inches Nominal
- Body Length [ADAQ]
- 2.000 Inches Nominal
- Body Width [ADAT]
- 0.500 Inches Nominal
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Length [AEBY]
- 2.500 Inches Nominal
- Fixed Tap Quantity [AAPR]
- 1
- Fixed Tap Terminal Type [CQFK]
- Tab, Solder Lug
- Heat Sink Length [AAQA]
- 10.000 Inches
- Heat Sink Material [AAPZ]
- Steel
- Heat Sink Thickness [AAQE]
- 0.040 Inches
- Heat Sink Width [AAQB]
- 10.000 Inches
- Mounting Hole Size [BYML]
- 0.148 Inches Nominal
- Inclosure Method [AAQZ]
- Encapsulated
- Power Dissipation Rating In Watts [AEFB]
- 3.900 Free Air
- Resistance Tolerance In Percent [AAPQ]
- -10.000/+10.000

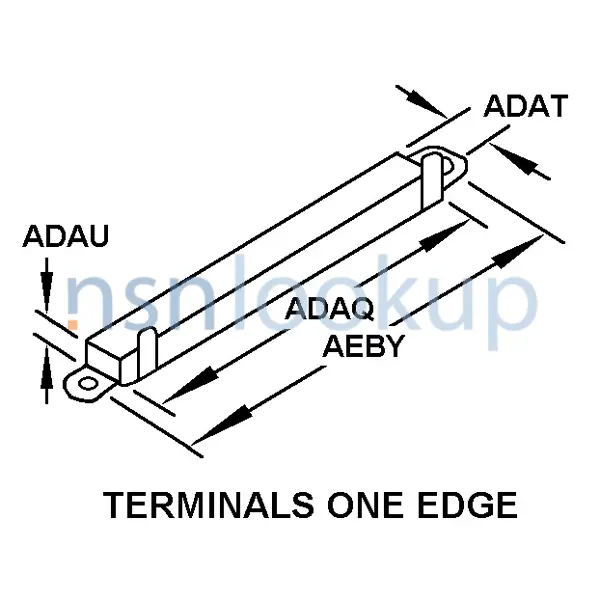

- Style Designator [STYL]
- Terminals One Edge
- Terminal Length [ABJT]
- 0.407 Inches Nominal
- Terminal Width [AFWW]
- 0.188 Inches Nominal
- Terminal Type [AARB]
- Tab, Solder Lug
DLA Procurement Analysis 5905-00-174-5845
Management Data 5905-00-174-5845
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5905-00-174-5845
Freight Information 5905-00-174-5845
5905-00-174-5845 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062800. A Sub NMFC of X. It has a NMFC Description of RADIO/TV RECEIVING SET CHASSIS ETC. 5905-00-174-5845 is rated as class 85 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49770 which rates the freight between FCL and LCL. 5905-00-174-5845 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 723 for ocean manifesting and military sealift. 5905-00-174-5845 is not classified as a special type of cargo when transported by water. 5905-00-174-5845 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-00-174-5845
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- MIL-P-130, Laminated and Creped Wrapping Paper
- No Requirement
- Not Applicable
- --
- No special marking
- MIL-P-130, Laminated and Creped Wrapping Paper
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
Contracting Technical Data File (CTDF) 5905-00-174-5845 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
