5905-00-165-3235

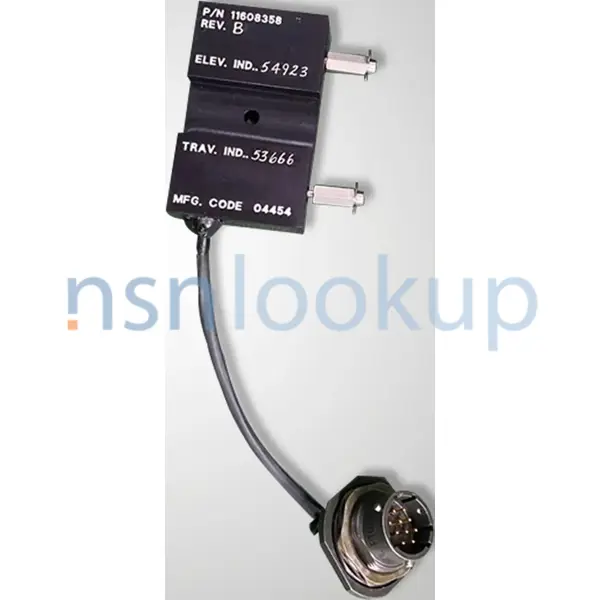

Resistor Assembly
5905001653235 001653235 11608358 LMFL2-210 23391-40
Two or more individual fixed, variable, thermal, or adjustable resistors on a common mounting or mounted on each other. The resistors must be separable and each must be capable of functioning in accordance with its applicable item name. For variable resistors mounted in tandem with a common or dual concentric shaft, see RESISTOR, VARIABLE (as modified) and ATTENUATOR, VARIABLE. For inseparable resistors permanently cased, sealed or potted together to form a multisection unit, see RESISTOR ASSORTMENT; RESISTOR SET, MATCHED; and items which have wire leads temporarily twisted together, or are otherwise physically attached solely for convenience in handling or shipping. View more Resistor Assembly
September 2023
23
Marketplace 5905-00-165-3235
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-165-3235 2+ Documents (More...)
RESISTOR ASSEMBLY RQST NS Request Quotation Updated Every Day 5905-00-165-3235 RQST NE Updated
Every Day 5905-00-165-3235 RQST Updated Every Day 5905-00-165-3235 RQST NE Related Documents 5905-00-
Restrictions 5905-00-165-3235
5905-00-165-3235 is a Resistor Assembly that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-165-3235
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-165-3235
- US Army (A918)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A196
- Supplementary Receivers:
- AZBF
- US Marine Corps (MC49)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC13
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Feb 1998
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Jan 2011
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 5905-00-165-3235
- Part Number
- Manufacturer
- Status
- 11608358
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- LMFL2-210
- 08815 - Honeywell International Inc (Active)
- Secondary Buy
- Secondary Buy
- 23391-40
- 04454 - Sensor Systems, L.L.C. (Active)
- Secondary Buy
- Secondary Buy
- 23391-40
- 10112 - General Dynamics Motion Control Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5905001653235
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 5905-00-165-3235
- Characteristic
- Specifications
- FIIG
- Specifications
- T172-F
- Electrical Connection Method [ATYJ]
- Parallel
- Electrical Resistance [AAPP]
- 5.0 Kilohms
- Component Controlling Agency [AQHK]
- U.S.Army Tank Automotive Center
- Component Identifying Number [AQHM]
- 11608358-1 Drawing No.
- Component Quantity [AJJW]
- 2
- Component Relationship [ATYM]
- Unconnected Matched Pair
- Component Name [AQHL]
- Resistor,Adjustable
- Assembly Construction Method [ATWY]
- Encased In Potting Compound
- Mounting Configuration [ALGC]
- 0.191 In. Min,0.196 In. Max. Hole Dia,Hole Centered Parallel To Lgand W Thru Top
- Mounting Method [ADJH]
- Through Hole
- Resistance Tolerance In Percent [AAPQ]
- -10.0/+10.0
- Resistor Power Dissipation Rating In Watts [ACZQ]
- 0.5
- Overall Height [ABKW]
- 0.537 Inches Minimum And 0.562 Inches Maximum
- Overall Length [ABHP]
- 2.874 Inches Nominal
- Overall Width [ABMK]
- 1.750 Inches Maximum
- Terminal Quantity [AARA]
- 1
- Terminal Type [AARB]
- Connector
Weapon Systems (WSDC) 5905-00-165-3235
DLA Procurement Analysis 5905-00-165-3235
Management Data 5905-00-165-3235
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- T
- Maintenance Float Secondary Non-depot Reparables
- Operational Test:
- No Special Procedures
Similar Supply Items to 5905-00-165-3235
Freight Information 5905-00-165-3235
5905-00-165-3235 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-165-3235 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-165-3235 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-00-165-3235 is not classified as a special type of cargo when transported by water. 5905-00-165-3235 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-00-165-3235
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- PPP-C-795, Cellular Plastic Film Cushioning; or A-A-3129, Open Cell Plastic Cushioning; or PPP-C-1797, Polypropylene Foam Cushioning; or A-A-59136, Polyethylene Foam Cushioning
- --
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Procurement History 5905-00-165-3235 11 Records
