5905-00-154-2961
Thermal Resistor
5905001542961 001542961 K1024 2187613-1
A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL. View more Thermal Resistor
May 2023
5
Marketplace 5905-00-154-2961
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-154-2961 5+ Documents (More...)
United States (US) 4. 5905-00-154-2961 Marketplace Restrictions Approved Sources Datasheet Management
NE FedMall Updated Every Day 5905-00-154-2961 RQST NE Updated Every Day 5905-00-154-2961 RQST Updated
Processing Server 123730957 RQST NE Updated Every https https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-154-2961
Thermal Resistor 5905001542961 001542961 5905-00-154-2961 5+ Documents ( More... ) https https/
JavaScript in your web browser . 7025-15-183-0192Server https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-154-2961
Thermal Resistor 5905001542961 001542961 designed https//www.nsnlookup.com /fsg-59/fsc- https//
Processing Server 123730958 RQST NE Updated Every https https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-154-2961
Thermal Resistor 5905001542961 001542961 -154-2961 5+ Documents ( More... ) https https/ https/
-V103 (241)AC925S26361-K1024-V103 An item specifically designed to function as a node on 7035-15-188-
-V103 (241)AC925S26361-K1024-V103 An item specifically designed https//www.nsnlookup.com /fsg-59/fsc-
Restrictions 5905-00-154-2961
5905-00-154-2961 is a Thermal Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5905-00-154-2961
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-154-2961
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
Approved Sources 5905-00-154-2961
- Part Number
- Manufacturer
- Status
- K1024
- Manufacturer
- 15801 - Honeywell International Inc. (Active)
- Primary Buy
- Primary Buy
- 2187613-1
- 49671 - Lockheed Martin Corporation (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5905-00-154-2961
- Characteristic
- Specifications
- FIIG
- Specifications
- A086A0
- Ambient Temp At Full Rated Power [AEHY]
- 25.0 Deg Celsius
- Body Height [ADAU]
- 0.188 Inches Nominal
- Body Length [ADAQ]
- 0.750 Inches Nominal
- Body Width [ADAT]
- 0.281 Inches Nominal
- Maximum Operating Temp [AEHZ]
- 100.0 Deg Celsius
- Zero Power Resistance [CQWD]
- 15.000 Kilohms
- Inclosure Type [AKNA]
- Encased
- Power Dissipation Constant In Milliwatts Per Deg Celsius [AEJB]
- 1.9
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance At A Specified Temp In Percent [AEJF]
- -15.0/+15.0 All Resistance-Temperature Points
- Unthreaded Mounting Hole Diameter [AEBV]
- 0.150 Inches Nominal
- Zero Power Resistance At Specified Temp [AEJE]
- 1.2 Kilohms 6Th Resistance-Temperature Point
- Zero Power Resistance At Specified Temp [AEJE]
- 2.8 Kilohms 5Th Resistance-Temperature Point
- Zero Power Resistance At Specified Temp [AEJE]
- 9.7 Kilohms 3Rd Resistance-Temperature Point
- Zero Power Resistance Tolerance In Percent At Reference Temp [CRQJ]
- -1.0/+1.0
- Zero Power Resistance At Specified Temp [AEJE]
- 23.9 Kilohms 2Nd Resistance-Temperature Point
- Zero Power Resistance At Specified Temp [AEJE]
- 44.5 Kilohms 1St Resistance-Temperature Point
- Zero Power Resistance At Specified Temp [AEJE]
- 5.3 Kilohms 4Th Resistance-Temperature Point

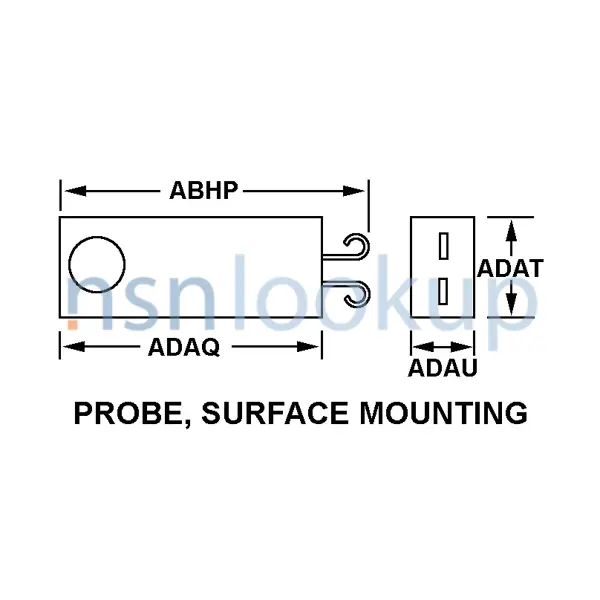

- Style Designator [STYL]
- Probe, Surface Mounting
- Temp Points For Resistance Readings At Zero Power [AEJD]
- 127.0 Deg Fahrenheit 4Th Resistance-Temperature Point
- Temp Points For Resistance Readings At Zero Power [AEJD]
- 162.0 Deg Fahrenheit 5Th Resistance-Temperature Point
- Temp Points For Resistance Readings At Zero Power [AEJD]
- 212.0 Deg Fahrenheit 6Th Resistance-Temperature Point
- Temp Points For Resistance Readings At Zero Power [AEJD]
- 32.0 Deg Fahrenheit 1St Resistance-Temperature Point
- Temp Points For Resistance Readings At Zero Power [AEJD]
- 57.0 Deg Fahrenheit 2Nd Resistance-Temperature Point
- Temp Points For Resistance Readings At Zero Power [AEJD]
- 97.0 Deg Fahrenheit 3Rd Resistance-Temperature Point
- Terminal Type And Quantity [TTQY]
- 2 Tab, Solder Lug
- Test Data Document [TEST]
- 49671-2187613 Drawing (This Is The Basic Governing Drawing, Such As A Contractor Drawing, Original Equipment Manufacturer Drawing, Etc.; Excludes Any Specification, Standard Or Other Document That May Be Referenced In A Basic Governing Drawing)
DLA Procurement Analysis 5905-00-154-2961
Management Data 5905-00-154-2961
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5905-00-154-2961
Freight Information 5905-00-154-2961
5905-00-154-2961 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-154-2961 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-154-2961 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5905-00-154-2961 is not classified as a special type of cargo when transported by water. 5905-00-154-2961 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
