5905-00-114-5178
Composition Fixed Resistor
5905001145178 001145178 D5ST2
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of a mixture of carbon, an insulating material, and suitable binders, either molded together or applied as a thin layer of conducting material on an insulated form. The opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the item itself. See also ATTENUATOR, FIXED; RESISTOR, FIXED, FILM; and RESISTOR, THERMAL. Excludes SUPPRESSOR, IGNITION INTERFERENCE. View more Composition Fixed Resistor
January 2023
11
Marketplace 5905-00-114-5178
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-114-5178 4+ Documents (More...)
5905-00-114-5178 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-114-5178
Composition Fixed Resistor 5905001145178 RQST NE Updated Every Day 5905-00-114-5178 RQST Updated Every
day Upgrade your Account Upgrade 5905-00-114-5176Composition Fixed Resistor5905001145176 001145176 D5ST2
Composition Fixed Resistor 5905001145178 day Upgrade your Account Upgrade 5905-00-114-5178Composition
Composition Fixed Resistor 5905001145178 day Upgrade your Account Upgrade 5905-00-114-5178Composition
Fixed Resistor5905001145178 001145178 D5ST2 Composition Fixed Resistor 5905001145126 day Upgrade your
Composition Fixed Resistor 5905001145178 day Upgrade your Account Upgrade 5905-00-114-5178Composition
Fixed Resistor5905001145178 001145178 D5ST2 day Upgrade your Account Upgrade 5905-00-284-2278Composition
Restrictions 5905-00-114-5178
5905-00-114-5178 is a Composition Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-114-5178
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-114-5178
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5905-00-114-5178
- Part Number
- Manufacturer
- Status
- D5ST2
- Manufacturer
- 79727 - Electro Switch Corp. (Active)
- Incomplete Reference
- Incomplete Reference
Datasheet 5905-00-114-5178
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 6.500 Kilohms
- Resistance Tolerance In Percent [AAPQ]
- -10.000 To 10.000
- Power Dissipation Rating In Watts [AEFB]
- 5.000 Free Air
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 40.0
- Inclosure Method [AAQZ]
- Uninclosed

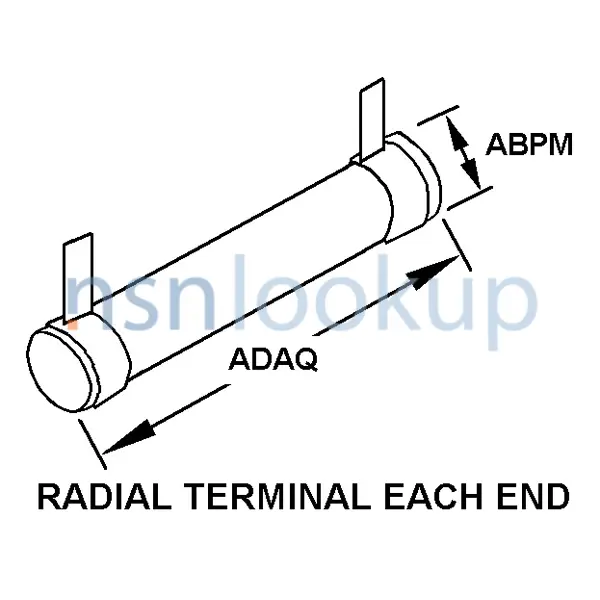

- Style Designator [STYL]
- Radial Terminal Each End
- Body Diameter [ABPM]
- 0.780 Inches Nominal
- Body Length [ADAQ]
- 3.160 Inches Nominal
- Terminal Type [AARB]
- Tab, Solder Lug
- Terminal Length [ABJT]
- 0.438 Inches Nominal
- Terminal Width [AFWW]
- 0.375 Inches Nominal
Similar Supply Items to 5905-00-114-5178
Freight Information 5905-00-114-5178
5905-00-114-5178 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-114-5178 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5905-00-114-5178 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-114-5178 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5905-00-114-5178 is not classified as a special type of cargo when transported by water. 5905-00-114-5178 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
