5905-00-101-2724
Noninductive Wire Wound Fixed Resistor
5905001012724 001012724 20P SK8511-2
A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE. View more Wire Wound Fixed Resistor
May 2023
23
Marketplace 5905-00-101-2724
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-101-2724 5+ Documents (More...)
RQST NE Updated Every Day 5905-00-101-2724 RQST Updated Every Day 5905-00-101-2724 RQST NE Related Documents
5905-00-101-2724 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-101-2724
fsg-53/fsc-5330/us 5330-01-361-4062 Gasket 5330013614062 013614062,08-3520-52,20P Vendor Details... 20P
GASKET 579 EA NS Request https//www.nsnlookup.com /fsg-58/fsc-5840/it 5840-15-120-1875 Cestello 20P
available for this item - Upgrade for $1 a day Upgrade 6759Spur 72-T 20P 6759 5+ Documents ( More...
Noninductive Wire Wound Fixed Resistor,20P -8792 Fl 4000 Fb-20P Trk 3930371608792371608792 https
-1562 RQST NE Restrictions https//www.nsnlookup.com /fsg-39/fsc-3930/kr 3930-37-160-8792 Fl 4000 Fb-20P
Noninductive Wire Wound Fixed Resistor,20P fsg-58/fsc-5840/it 5840-15-120-1875 Cestello 20P https
6781 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-42/fsc-4250/us 4250-01-559-6781 Spur 50-T 20P
2610-33-203-5785 Vehicular Pneumatic Tire 2610332035785,20P ADPEC : 0 5935-01-543-9559 is a Conn Hdr 20P
Restrictions 5905-00-101-2724
5905-00-101-2724 is a Noninductive Wire Wound Fixed Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 5905-00-101-2724
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-101-2724
- US Navy (N9BN)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9ND
- Supplementary Collaborators:
- HD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 5905-00-101-2724
- Part Number
- Manufacturer
- Status
- 20P
- Manufacturer
- 63743 - Ward Leonard Ct Llc (Active)
- Incomplete Reference
- Incomplete Reference
- SK8511-2
- 63743 - Ward Leonard Ct Llc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5905-00-101-2724
- Characteristic
- Specifications
- FIIG
- Specifications
- A001A0
- Electrical Resistance [AAPP]
- 50.000 Ohms
- Resistance Tolerance In Percent [AAPQ]
- -10.000 To 10.000
- Power Dissipation Rating In Watts [AEFB]
- 25.000 Free Air
- Ambient Temp In Deg Celsius At Full Rated Power [AAQF]
- 40.0
- Ambient Temp In Deg Celsius At Zero Percent Rated Power [AAQG]
- 340.0
- Inclosure Method [AAQZ]
- Encapsulated

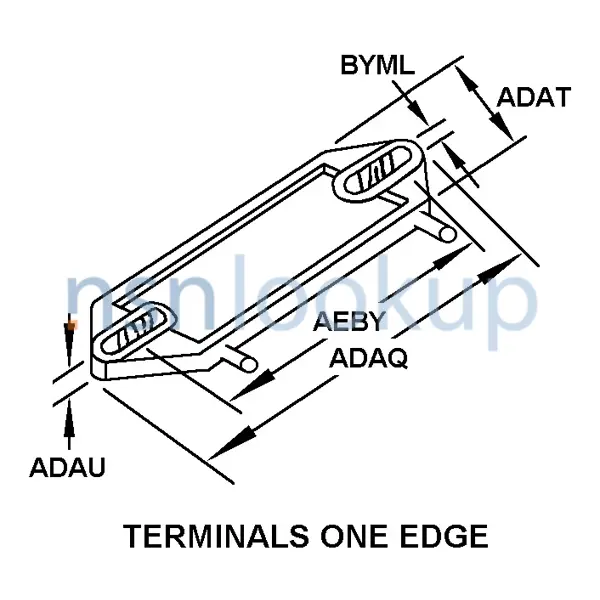

- Style Designator [STYL]
- Terminals One Edge
- Body Length [ADAQ]
- 3.062 Inches Nominal
- Body Width [ADAT]
- 1.250 Inches Nominal
- Distance Between Centerlines Of Mounting Facilities Parallel To Body Length [AEBY]
- 2.469 Inches Nominal
- Mounting Hole Size [BYML]
- 0.188 Inches Nominal
- Terminal Type [AARB]
- Tab, Solder Lug
- Reliability Indicator [AARG]
- Not Established
- Terminal Length [ABJT]
- 0.500 Inches Nominal
- Terminal Width [AFWW]
- 0.188 Inches Nominal
DLA Procurement Analysis 5905-00-101-2724
Management Data 5905-00-101-2724
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 5905-00-101-2724
Freight Information 5905-00-101-2724
5905-00-101-2724 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 062960. A Sub NMFC of X. It has a NMFC Description of REOSTATS/PARTS NOI. 5905-00-101-2724 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 35140 which rates the freight between FCL and LCL. 5905-00-101-2724 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 657 for ocean manifesting and military sealift. 5905-00-101-2724 is not classified as a special type of cargo when transported by water. 5905-00-101-2724 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5905-00-101-2724
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- No Requirements
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- A-A-1249, Paper, Tissue
- No Requirement
- Not Applicable
- --
- Special requirements
- A-A-1249, Paper, Tissue
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566 or PPP-B-676, Folding or Setup Box
