5905-00-077-5715
Precision Wire Wound Variable Resistor
5905000775715 000775715 51351
A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity) of the output is equal to or less than plus or munus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE, For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION. View more Precision Wire Wound Variable Resistor
June 2023
10
Marketplace 5905-00-077-5715
Request a Quotation from participating marketplace vendors
Related Documents 5905-00-077-5715 5+ Documents (More...)
/fsg-59/fsc-5905/us
5905-00-077-5715 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-077-5715
RQST NE Updated Every Day 5905-00-077-5715 RQST Updated Every Day 5905-00-077-5715 RQST NE Related Documents
2910-15-067-7301 Filtro Nafta 2910150677301 150677301,51351 2842 Part NumberManufacturerStatusL776 51351
2910150677301 150677301,51351 NumberManufacturerStatusSPP https//www.nsnlookup.com /fsg-59/fsc-5905/us 5905-00-077-5715
51351 JavaScript in your web browser . 2940-34-037-7654Element Air Cleaner2940340377654 340377654 91421
51351 https//www.nsnlookup.com /fsg-59/fsc-5980/uk 5980-99-820-9842 Light Emitting Diod 5980998209842
fsg-59/fsc-5950/uk 5950-99-777-3132 Audio Frequency Transformer 5950997773132 3924-156-51353924-156-51351
browser . 5950-99-777-3132Audio Frequency Transformer5950997773132 9977731323924-156-51353924-156-51351
/www.nsnlookup.com /fsg-29/fsc-2910/it 2910-15-067-7301 Filtro Nafta 2910150677301 150677301,51351 51351
to enable JavaScript in your web browser . 7430-01-056-5389Typewriter7430010565389 010565389 SPP-2-51351
Restrictions 5905-00-077-5715
5905-00-077-5715 is a Precision Wire Wound Variable Resistor that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5905-00-077-5715
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5905-00-077-5715
- Italy (ZR01)
- Effective Date:
- 1 Jul 1997
Approved Sources 5905-00-077-5715
- Part Number
- Manufacturer
- Status
- 51351
- Manufacturer
- 82340 - L3harris Technologies, Inc. (Active)
- Primary Buy
- Primary Buy
Datasheet 5905-00-077-5715
- Characteristic
- Specifications
- FIIG
- Specifications
- A002A0
- Effective Electrical Rotation In Deg Angular Rotation [AEFH]
- 3600.0 Minimum And 3610.0 Maximum
- Electrical Resistance Per Section [CQCC]
- 5.000 Kilohms 1St Section
- Electrical Resistance Per Section [CQCC]
- 5.000 Kilohms 2Nd Section
- Actuator Type [AEFD]
- Single Shaft
- Actuator Travel Control Feature [CRSX]
- Stops
- Ambient Temp In Deg Celsius Per Section At Full Rated Power [CSDH]
- 20.0 1St Section
- Ambient Temp In Deg Celsius Per Section At Full Rated Power [CSDH]
- 20.0 2Nd Section
- Body Diameter [ABPM]
- 1.109 Inches Nominal
- Body Length [ADAQ]
- 3.063 Inches Nominal
- Body Style [AAQL]
- Cylindrical Servo Mounted
- First Flat Length [ABNB]
- 0.375 Inches Nominal
- Flat Height [ABNC]
- 0.115 Inches Minimum And 0.117 Inches Maximum
- Function Characteristic Per Section [CSBX]
- All Sections Linear
- Function Conformity Per Section [CRGM]
- All Sections Independent Linearity
- Function Conformity Tolerance Per Section [CQFL]
- -0.10 To 0.10 All Sections
- Maximum Running Torque [AEFL]
- 0.40 Inch-Ounces
- Maximum Starting Torque [AEFK]
- 0.50 Inch-Ounces
- Maximum Stop Torque [AEFM]
- 100.00 Inch-Ounces
- Mounting Lip Depth [AEDA]
- 0.06200 Inches Nominal
- Mounting Lip Diameter [AECZ]
- 0.86500 Inches Minimum And 0.88000 Inches Maximum
- Mounting Method [AXGY]
- Clamp Ring
- Overall Length [ABHP]
- 3.688 Inches Nominal
- Power Dissipation Rating Per Section In Watts [CRGD]
- 3.0 Free Air Single Section
- Reliability Indicator [AARG]
- Not Established
- Resistance Tolerance Per Section In Percent [CRSS]
- -3.0 To 3.0 All Sections
- Rotary Actuator Travel In Angular Deg [CQCK]
- 3760.0 Minimum
- Section Quantity [AAPN]
- 2
- Shaft Bearing Type [AEDZ]
- Ball
- Shaft Diameter [ABWV]
- 0.125 Inches Nominal
- Shaft End Play [AEFY]
- 0.00100 Inches

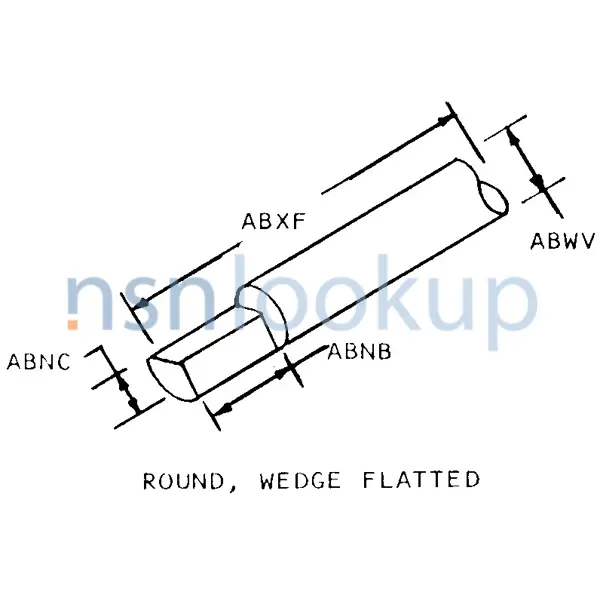

- Shaft Style [AEDX]
- Round, Wedge Flatted
- Shaft Length [ABXF]
- 0.563 Inches Nominal
- Overall Diameter [ADAV]
- 1.281 Inches Nominal
- Pilot Length [AAVM]
- 0.06200 Inches Nominal
- Pilot Diameter [AAVL]
- 0.74950 Inches Minimum And 0.75000 Inches Maximum
- Special Features [FEAT]
- Ambient Temp 50 Deg C At 2.5 Watts Both Sections
- Undercut Diameter [ABPA]
- 0.781 Inches Nominal
- Undercut Width [ABPC]
- 0.05700 Inches Nominal
- Temp Coefficient Of Resistance Per Section In Ppm Per Deg Celsius [CRFJ]
- -20.0 To 20.0 All Sections
- Terminal Location [APXH]
- Longitudinally Positioned On The Circumference
- Terminal Length [ABJT]
- 0.172 Inches Nominal
- Terminal Type And Quantity [TTQY]
- 6 Tab, Solder Lug
