5895-01-086-6217

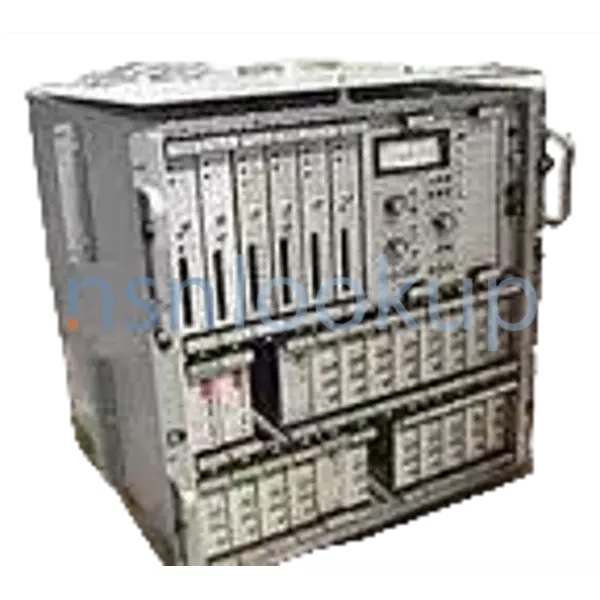

Multiplexer Set
5895010866217 010866217 AN/FCC-98(V)1X 17000-1DC
A grouping of components and items consisting of two or more multiplexers and one or more demultiplexers together with accessory items. See also TERMINAL, TELEGRAPH; and TERMINAL, TELEPHONE. View more Multiplexer Set
May 2023
7
Marketplace 5895-01-086-6217
Request a Quotation from participating marketplace vendors
Related Documents 5895-01-086-6217 2+ Documents (More...)
AN/FCC-98(V)1X MULTIPLEXER SET 1 EA NS Request Quotation 17000-1DC MULTIPLEXER SET 1 EA NS Request Quotation
Updated Every Day 5895-01-086-6217 RQST NE Updated Every Day 5895-01-086-6217 RQST Updated Every Day
Restrictions 5895-01-086-6217
IUID Required
5895-01-086-6217 is a Multiplexer Set The DCMO has forced the Demilization requirements for this item as the ICP has not collaborated. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5895-01-086-6217
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5895-01-086-6217
- US Army (A502)
- Effective Date:
- 1 Apr 1991
- US Air Force (F2CL)
- Effective Date:
- 1 Sep 2000
- Former MOE Rule:
- F4CL
- US Navy (NCLL)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- GG
Approved Sources 5895-01-086-6217
- Part Number
- Manufacturer
- Status
- 17000-1DC
- Manufacturer
- 11982 - Northrop Grumman Systems Corporation (Active)
- Original Design
- Original Design
- AN/FCC-98(V)1X
- 80058 - Joint Electronics Type Designation (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5895-01-086-6217
- Characteristic
- Specifications
- FIIG
- Specifications
- T187-F
- Electrical Power Source Relationship [AKWC]
- Alternate Operating
- Accessory Component Quantity [AFHS]
- 4
- Channel Type And Quantity [APQJ]
- 24 Receiving
- Dc Voltage Rating [ACYR]
- 44.0 Volts Minimum And 56.0 Volts Maximum
- Multiplexing Method [APQG]
- Frequency Division And Time Division
- Joint Electronics Type Designation System Item Name [AKWA]
- Multiplexer Set
- Joint Electronics Type Designation System Item Type Number [AKWB]
- An/Fcc-98(V)1X
- Overall Depth [ABFY]
- 21.250 Inches Nominal
- Overall Height [ABKW]
- 19.500 Inches Nominal
- Overall Width [ABMK]
- 17.250 Inches Nominal
- Special Features [FEAT]
- Built-In-Test Equipment For Faultlocating Alignment And Monitoring
Management Data 5895-01-086-6217
Army
- Materiel Category and Inventory Manager:
- G
- Communications and Electronics Equipment, Electronics Materiel
- Appropriation and Budget Activity:
- P
- Communications and Electronics Equipment (except Safeguard)
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- T5
- Other Electronics Equipment
Digital Radios and Multiplexer Sets (DRAMA)
- Accounting Requirements:
- N
- Nonexpendable item.An item of Army property coded with an ARC of N in the AMDF.Nonexpendable items require property book accountability after issue from the stock record account.Commercial and fabricated items similar to items coded N in the AMDF are considered nonexpendable items.
Navy
- Cognizance:
- 2Z
- Issue, Repair, Requisition Restriction Code:
- BM
- Submit/refer requisitions to NAVSPAWAR (SPAWAR 82)
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 5895-01-086-6217
Freight Information 5895-01-086-6217
5895-01-086-6217 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 061700. A Sub NMFC of Z. It has a NMFC Description of ELEC APPLIANCES/INSTRUMENTS NOI. 5895-01-086-6217 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5895-01-086-6217 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 34580 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 658 for ocean manifesting and military sealift. 5895-01-086-6217 is not classified as a special type of cargo when transported by water. 5895-01-086-6217 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5895-01-086-6217
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Packaging Data does not meet current MIL-STD-2073-1E
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- MIL-PRF-26514, Type I, Class 2, Grade C, Flexible Polyurethane Foam, Heavy Load Range
- 2 inches thick
- ASTM-D6251, Type III, Wood Cleated Plywood Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- No Requirement
