5855-01-272-1504
Optical Element Retainer
5855012721504 012721504 SM-C-850326
A cylindrical, externally threaded item having a centrally located hole specifically designed to retain by means of either a raised box (shoulder), or counterbore, countersink, or a similar shaped recess, an optical element such as a lens, reticle, cell, and the like, in optical assemblies. It must have drilled holes or slots to facilitate assembly and disassembly. For items which house the optical element(s), and form the internal or central portions of an optical system, see CELL, OPTICAL ELEMENT. Excludes RING, EXTERNALLY THREADED. View more Optical Element Retainer
May 2023
9
Marketplace 5855-01-272-1504
Request a Quotation from participating marketplace vendors
Related Documents 5855-01-272-1504 2+ Documents (More...)
/fsg-58/fsc-5855/us
NE Updated Every Day 5855-01-272-1504 RQST Updated Every Day 5855-01-272-1504 RQST NE Related Documents
5855-01-272-1504 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-58/fsc-5855/us 5855-01-272-1504
Optical Element Retainer 5855012721504 Upgrade your Account Upgrade 5855-01-272-1504Optical Element
Retainer5855012721504 012721504 SM-C-850326 SM-C-850326 RETAINER,OPTICAL ELEMENT 72 EA NS Request Quotation
Restrictions 5855-01-272-1504
5855-01-272-1504 is a Optical Element Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5855-01-272-1504
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5855-01-272-1504
- US Army (A918)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
Approved Sources 5855-01-272-1504
- Part Number
- Manufacturer
- Status
- SM-C-850326
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
Datasheet 5855-01-272-1504
- Characteristic
- Specifications
- FIIG
- Specifications
- T271-K

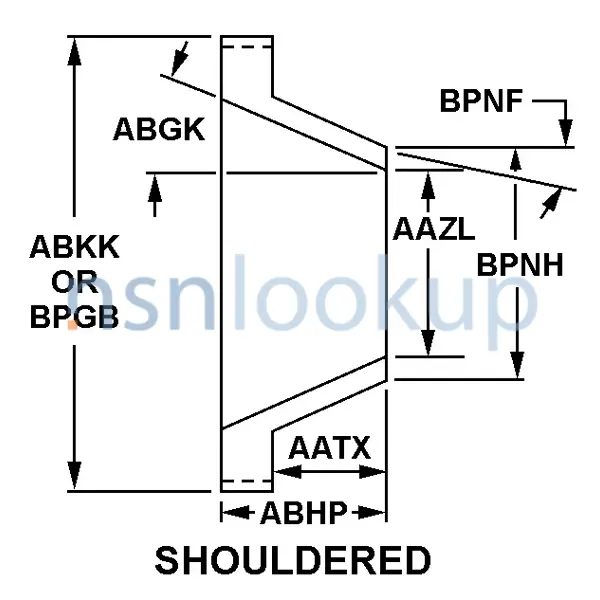

- Flange Diameter [ABKK]
- 1.200 Inches Nominal
- Material Document And Classification [MDCL]
- Qq-A-250/11, T6 Fed Spec Single Material Response
- Material [MATT]
- Aluminum Alloy 6061
- Fsc Application Data [ZZZV]
- Night Vision Equip.,Emitted And Reflected Radiation
- Internal Annular Serration [BMTS]
- Not Provided
- Setscrew Notch [BMTT]
- Not Provided
- Shoulder Taper Angle In Deg [BPNF]
- 60.0
- Overall Length [ABHP]
- 0.220 Inches Nominal
- Style Designator [STYL]
- Shouldered
- Surface Treatment [SFTT]
- Anodize
- Tapered Hole Minor Diameter [AAZL]
- 1.000 Inches Nominal
DLA Procurement Analysis 5855-01-272-1504
Management Data 5855-01-272-1504
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Similar Supply Items to 5855-01-272-1504
Freight Information 5855-01-272-1504
5855-01-272-1504 has freight characteristics managed by Canada.It has a National Motor Freight Classification (NMFC) of 058110. A Sub NMFC of X. It has a NMFC Description of OPTICAL GOODS OR INSTRUMENTS NOI. 5855-01-272-1504 is rated as class 200 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 33110 which rates the freight between FCL and LCL. 5855-01-272-1504 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 744 for ocean manifesting and military sealift. 5855-01-272-1504 is not classified as a special type of cargo when transported by water. 5855-01-272-1504 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
