5855-01-096-0871

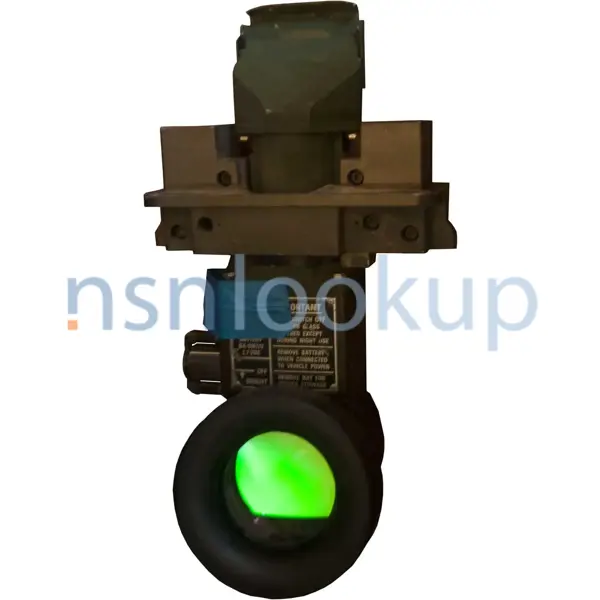

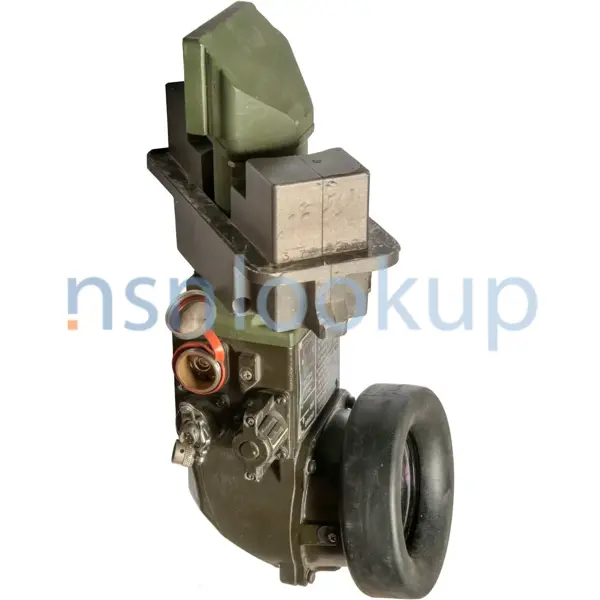

Night Vision Viewer
5855010960871 010960871 AN/AVS-2 (V) 1A SM-D-771480-1 AN/VVS-2(V)1A
An item designed to view an object in case of limited visibility. Includes fast optics to absorb weak optical images in low light, and/or infrared and /or thermal image spectrum and make it visible by means of an image converter. An IMAGE INTENSIFIER, NIGHT VISION and other items may be included. See also VIEWER KIT, NIGHT VISION and CAMERA, INFRARED, INDUSTRIAL. View more Night Vision Viewer
May 2023
19
Marketplace 5855-01-096-0871
Request a Quotation from participating marketplace vendors
Related Documents 5855-01-096-0871 5+ Documents (More...)
Restrictions 5855-01-096-0871
IUID Required
5855-01-096-0871 is a Night Vision Viewer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is a US Munitions List or Commerce Control List Item where the Item Manager, Equipment Specialist or Product Specialist must provide special demilitarization instructions. This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5855-01-096-0871
- US Army (A502)
- Effective Date:
- 1 Apr 1991
- Supplementary Receivers:
- AZBF
- US Air Force (F5CL)
- Effective Date:
- 1 Apr 1991
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Lithuania (WI01)
- Effective Date:
- 1 May 2009
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 5855-01-096-0871
- Part Number
- Manufacturer
- Status
- SM-D-771480-1
- Manufacturer
- 80063 - Us Army Communications & (Active)
- Primary Buy
- Primary Buy
- AN/VVS-2(V)1A
- 05234 - Thermo Jarrell Ash Corp Baird Div (Active)
- Primary Buy
- Primary Buy
- AN/AVS-2 (V) 1A
- 80058 - Joint Electronics Type Designation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
Datasheet 5855-01-096-0871
- Characteristic
- Specifications
- FIIG
- Specifications
- A560T0
- Optical Device Type [BLPK]
- Lens
- Focusing Type [BCTD]
- Fixed
- Objective Aperture Diameter [BLPM]
- 3.0 Inches Nominal
- Field View Coverage [BLDD]
- 44 Deg Horizontal And 35 Deg Vertical
- Magnification Type [BLPQ]
- Variable
- Specification/Standard Data [ZZZK]
- 81349-Mil-V-49082 Government Specification
- Special Features [FEAT]
- Periscope Configuration With Dual Eye Presentation, 25Mn Image Intensifier Tube, Operating Power 28Vdc Vehicle Source Power, Backup Power 2.6V Internal Battery For Hand Held Use, Dim 17.75 In H X 6.0In W X 6.75 In L, Weight 18Lbs
- End Item Identification [AGAV]
- M-60
- Part Name Assigned By Controlling Agency [CXCY]
- Viewer Assembly, Drivers
Management Data 5855-01-096-0871
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Nov 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Dec 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Army (DA)
- L
- R
- Refer To Net Price 15894.00
- NET PRICE 15894.00
- R
Army
- Materiel Category and Inventory Manager:
- G
- Communications and Electronics Equipment, Electronics Materiel
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 1
- Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify serviceable or unserviceable items of a durable nature, which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
- Weapons System / End Item / Homogeneous Group:
- SY
- Surveillance Target Acquisition and Night Observation (STANO)
Crew Served Night Sights
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- PD
- Regulated items, item manager controlled
- Budget:
- M
- 57X3080 - Other Base Maintenance and Support Equipment
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - S
- Reparable. Condemn at Depot. AF Equipment Management System (AFEMS).
NATO Stock Numbers Related to 5855-01-096-0871
Freight Information 5855-01-096-0871
5855-01-096-0871 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 058110. A Sub NMFC of X. It has a NMFC Description of OPTICAL GOODS OR INSTRUMENTS NOI. 5855-01-096-0871 is rated as class 200 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 33110 which rates the freight between FCL and LCL. 5855-01-096-0871 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 72D for ocean manifesting and military sealift. 5855-01-096-0871 is classified as a Protected/Sensitive Non-Hazardous Non-ESD Commodity when transported by water. 5855-01-096-0871 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5855-01-096-0871
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
- Storage Environment
- Heated General Purpose – Heated 40 F and above
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- 17.0" H x 6.0" W x 6.0" L
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 20.0" H x 9.0" W x 9.0" L
- --
- --
- Physical Protection
- Any Suitable Process
- 20.0" H x 9.0" W x 9.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- Weather Resistant Fiberboard Meeting the Requirements of ASTM-D4727 used as Pads, Cells, Die-cuts or Sleeves; or Plastic Molding Material conforming to MIL-P-19644; or Polyurethane Foam conforming to MIL-PRF-26514
- --
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- No Requirement
