5855-01-039-2857
Optical Element Retainer
5855010392857 010392857 SMD850409 SM-D-850409
A cylindrical, externally threaded item having a centrally located hole specifically designed to retain by means of either a raised box (shoulder), or counterbore, countersink, or a similar shaped recess, an optical element such as a lens, reticle, cell, and the like, in optical assemblies. It must have drilled holes or slots to facilitate assembly and disassembly. For items which house the optical element(s), and form the internal or central portions of an optical system, see CELL, OPTICAL ELEMENT. Excludes RING, EXTERNALLY THREADED. View more Optical Element Retainer
August 2023
24
Marketplace 5855-01-039-2857
Request a Quotation from participating marketplace vendors
Related Documents 5855-01-039-2857 3+ Documents (More...)
/fsg-58/fsc-5855/us
United States (US) 4. 5855-01-039-2857 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 5855-01-039-2857 RQST Updated Every Day 5855-01-039-2857 RQST NE Related Documents
Optical Element Retainer 5855010392857 Upgrade your Account Upgrade 5855-01-039-2857Optical Element
Retainer5855010392857 010392857 SM-D-850409 ZW01) Effective Date:1 Nov 2009 Approved Sources 5855-01
Optical Element Retainer 5855010392857 Upgrade your Account Upgrade 5855-01-039-2857Optical Element
Retainer5855010392857 010392857 SM-D-850409 Screw 5305151774466151774466 Replaced) Secondary Buy RNCC
Restrictions 5855-01-039-2857
5855-01-039-2857 is a Optical Element Retainer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5855-01-039-2857
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5855-01-039-2857
- US Army (A918)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- A196
- Supplementary Receivers:
- CL
- US Marine Corps (MC49)
- Effective Date:
- 1 Jul 2005
- Former MOE Rule:
- MC63
- US Navy (N9BN)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Aug 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2009
Approved Sources 5855-01-039-2857
- Part Number
- Manufacturer
- Status
- SM-D-850409
- Manufacturer
- 80063 - Us Army Communications & Electronics (Active)
- Primary Buy
- Primary Buy
- SMD850409
- 2S308 - Freehold Manufacturing Assembly (Active)
- Secondary Buy
- Secondary Buy
- SM-D-850409
- 34671 - A-I-K Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete

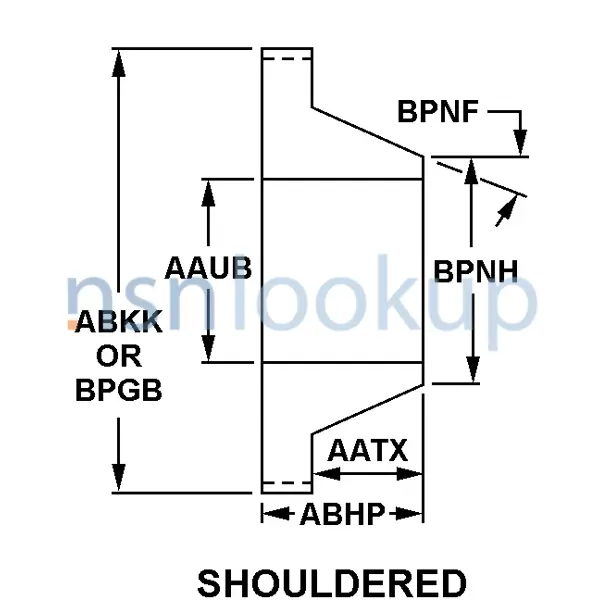

Datasheet 5855-01-039-2857
- Characteristic
- Specifications
- FIIG
- Specifications
- T271-K
- Drive Facility Angular Spacing In Deg [BMTN]
- 90.0
- Drive Type [AKCV]
- Drilled Hole
- Diameter [ABMZ]
- 0.062 Inches Nominal
- Flange Thread Size [BPGB]
- 1.6875 In.-32
- End Item Identification [AGAV]
- Night Vision Sight An/Pvs-5
- Internal Annular Serration [BMTS]
- Not Provided
- Radius From Geometric Axis To Hole Center [BMTP]
- 0.765 Inches Minimum And 0.770 Inches Maximum
- Setscrew Notch [BMTT]
- Not Provided
- Shoulder Length [AATX]
- 0.080 Inches Minimum And 0.090 Inches Maximum
- Shoulder Taper Angle In Deg [BPNF]
- 20.0
- Overall Length [ABHP]
- 0.189 Inches Minimum And 0.199 Inches Maximum
- Style Designator [STYL]
- Shouldered
- Tapered Shoulder Minor Diameter [BPNH]
- 1.437 Inches Minimum And 1.442 Inches Maximum
- Guide Design [BMTQ]
- Thread Chamfer
- Guide Location [BMTR]
- Drive Edge
- Hole Diameter [AAUB]
- 1.437 Inches Minimum And 1.442 Inches Maximum
- Hole Or Slot Quantity [ABKT]
- 4
- Material [MATT]
- Aluminum Alloy 6061
DLA Procurement Analysis 5855-01-039-2857
Management Data 5855-01-039-2857
Army
- Materiel Category and Inventory Manager:
- Q
- Electronics Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 5855-01-039-2857
Freight Information 5855-01-039-2857
5855-01-039-2857 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 058110. A Sub NMFC of X. It has a NMFC Description of OPTICAL GOODS OR INSTRUMENTS NOI. 5855-01-039-2857 is rated as class 200 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 33110 which rates the freight between FCL and LCL. 5855-01-039-2857 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 744 for ocean manifesting and military sealift. 5855-01-039-2857 is not classified as a special type of cargo when transported by water. 5855-01-039-2857 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5855-01-039-2857
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 0.25 lb or less, one dimension 2" or less, other dimensions less than 24"
- 85 to 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
Contracting Technical Data File (CTDF) 5855-01-039-2857 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
