5365-01-656-3374
Machine Thread Plug
5365016563374 016563374 6 HP5ON-S V1289 3969701
An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED. View more Machine Thread Plug
November 2023
2
Marketplace 5365-01-656-3374
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-656-3374 1+ Documents (More...)
(Identification) 1/2 NSN 5365-01-656-3374 (Identification) 2/2 - - 1.
United States (US) 4. 5365-01-656-3374 Marketplace Restrictions Approved Sources Datasheet Management
Restrictions 5365-01-656-3374
5365-01-656-3374 is a Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-01-656-3374
- US Marine Corps (MC41)
- Effective Date:
- 1 Jun 2016
Approved Sources 5365-01-656-3374
- Part Number
- Manufacturer
- Status
- 6 HP5ON-S V1289
- Manufacturer
- 87373 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
- 3969701
- 75Q65 - Oshkosh Defense Llc (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5365-01-656-3374
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Body Type [AJGE]
- Solid
- Connection Style [AHNC]
- Gasket Seal
- Features Provided [CBBL]
- O Ring

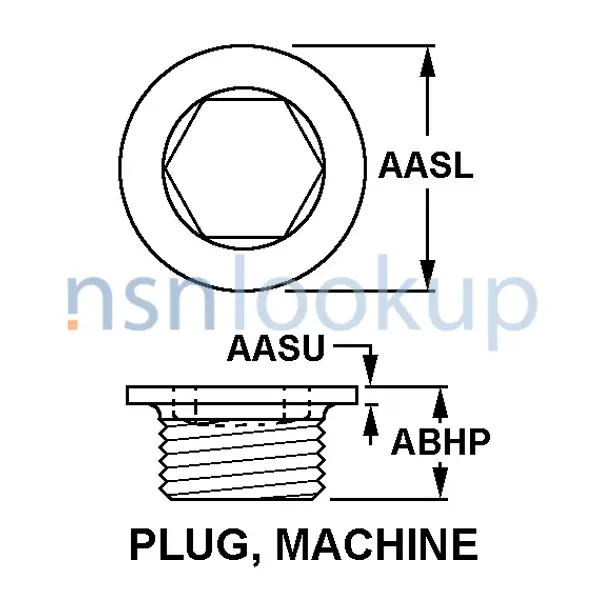

- Head Diameter [AASL]
- 17.53 Millimeters Nominal
- Head Height [AASU]
- 2.29 Millimeters Nominal
- Head Type [AJGD]
- Solid
- End Item Identification [AGAV]
- 4210-01-622-0440;Truck,Fire Fighting
- Nominal Thread Size [CQJX]
- 0.560 Inches External
- Part Name Assigned By Controlling Agency [CXCY]
- Ftg,Plug 60Rg Ms Inhex
- Overall Length [ABHP]
- 12.45 Millimeters Nominal
- Special Features [FEAT]
- Drive Type: Internal Hex,Hex Width Between Flats: 6.35 Millimeters Nominal;Finish: Shall Meet A Corrosion Requirement Of 450 Hours To Red Rust And 200 Hours To White Rust Per Astm B117;O-Ring Material: Must Withstand Temperatures From -40 Degrees Celsius To + 135 Degree Celsius,Recommended Material: Flourocarbon (V1289-75)
- Thread Direction [AAJF]
- Right-Hand External
- Thread Length [AASA]
- 10.160 Millimeters Nominal External
- Thread Quantity Per Inch [CMLP]
- 18 External
- Thread Series Designator [THSD]
- Unf External
- Style Designator [STYL]
- Plug, Machine
Weapon Systems (WSDC) 5365-01-656-3374
DLA Procurement Analysis 5365-01-656-3374
Management Data 5365-01-656-3374
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Dec 2019
- Department of the Army (DA)
- EA
- Subscribe
- EA
- Oct 2019
- US Marine Corps (DM)
- EA
- Subscribe
- EA
Army
- Materiel Category and Inventory Manager:
- E
- General Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5365-01-656-3374
Freight Information 5365-01-656-3374
5365-01-656-3374 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093750. A Sub NMFC of Z. It has a NMFC Description of BUNGS/PLUGS NOI IN PKGS. 5365-01-656-3374 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49080 which rates the freight between FCL and LCL. 5365-01-656-3374 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 5365-01-656-3374 is not classified as a special type of cargo when transported by water. 5365-01-656-3374 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5365-01-656-3374 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Y
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
