5365-01-609-2330
Bushing Blank
5365016092330 016092330 803-7525730-1XX-18
A solid metallic item, usually cylindrical, with or without a flange at one end. It is designed to be inserted into a hole to reduce the inside diameter of the hole and protect the surrounding body structure from damage resulting from stress, strain and/or vibration, but without a through hole parallel to the axis. It is intended for subsequent drilling operation. View more Bushing Blank
November 2023
1
Marketplace 5365-01-609-2330
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-609-2330 1+ Documents (More...)
United States (US) 4. 5365-01-609-2330 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5365-01-609-2330 RQST NE Updated Every Day 5365-01-609-2330 RQST
Restrictions 5365-01-609-2330
5365-01-609-2330 is a Bushing Blank that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-01-609-2330
- US Navy (N9BC)
- Effective Date:
- 1 Jul 2012
- Supplementary Collaborators:
- HX
Approved Sources 5365-01-609-2330
- Part Number
- Manufacturer
- Status
- 803-7525730-1XX-18
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy

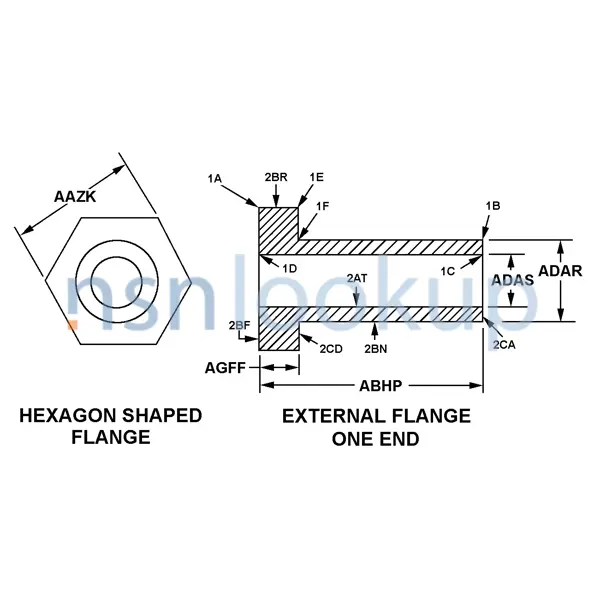

Datasheet 5365-01-609-2330
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Body Inside Diameter [ADAS]
- 0.080 Inches Minimum And 0.895 Inches Maximum
- Body Outside Diameter [ADAR]
- 1.813 Inches Nominal
- Flange Outside Diameter [AEPR]
- 1.813 Inches Nominal
- Flange Width [AGFF]
- 0.125 Inches Nominal
- Material [MATT]
- Copper Alloy 675 Body
- Overall Length [ABHP]
- 0.330 Inches Nominal
- Part Name Assigned By Controlling Agency [CXCY]
- Retainer,Rotary Bushing
- Width Across Flats [AAZK]
- 1.813 Inches Nominal
- Style Designator [STYL]
- Hexagon Shaped Flange, External Flange One End, Internal Flange One End
Weapon Systems (WSDC) 5365-01-609-2330
DLA Procurement Analysis 5365-01-609-2330
- Last Stock Position:
- 6 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 5365-01-609-2330
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5365-01-609-2330
Freight Information 5365-01-609-2330
5365-01-609-2330 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 115620. A Sub NMFC of X. It has a NMFC Description of BUSHINGS NOI I/S. 5365-01-609-2330 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 59240 which rates the freight between FCL and LCL. 5365-01-609-2330 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5365-01-609-2330 is not classified as a special type of cargo when transported by water. 5365-01-609-2330 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5365-01-609-2330
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- --
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- Special requirements
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- See Method of Preservation
- --
Contracting Technical Data File (CTDF) 5365-01-609-2330 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
