5365-01-591-3892

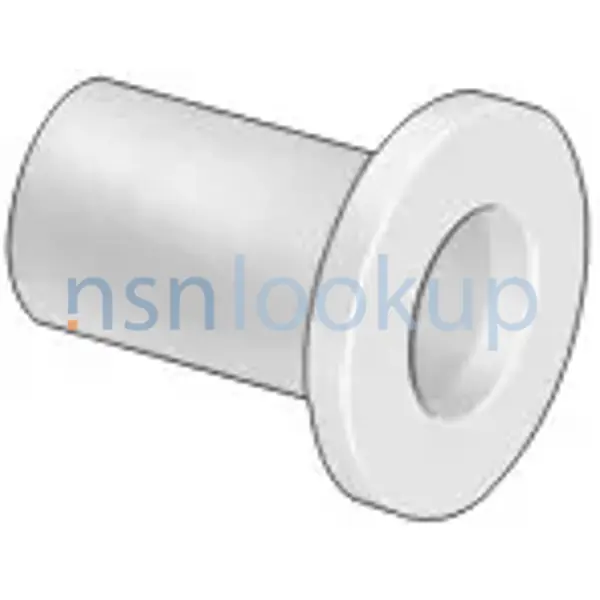

Sleeve Spacer
5365015913892 015913892 91145A167 6010-00-1193
A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified). View more Sleeve Spacer
May 2023
2
Marketplace 5365-01-591-3892
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-591-3892 5+ Documents (More...)
Updated Every Day 5365-01-591-3892 RQST NE Updated Every Day 5365-01-591-3892 RQST Updated Every Day
RQST NE Updated Every Day 5365-01-591-3892 RQST Updated Every Day RQST NE Updated Every Day 5365-01-
Restrictions 5365-01-591-3892
5365-01-591-3892 is a Sleeve Spacer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-01-591-3892
- Australia (ZA01)
- Effective Date:
- 1 Jan 2011
Approved Sources 5365-01-591-3892
- Part Number
- Manufacturer
- Status
- 91145A167
- Manufacturer
- 39428 - Mcmaster-Carr Supply Co (Active)
- Primary Buy
- Primary Buy
- 6010-00-1193
- 1RVQ3 - Tactronics Group International, Llc (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5365-01-591-3892
- Characteristic
- Specifications
- FIIG
- Specifications
- A045A0
- Body Inside Diameter [ADAS]
- 0.260 Inches Nominal
- Body Outside Diameter [ADAR]
- 0.312 Inches Nominal
- Flange Outside Diameter [AEPR]
- 0.513 Inches Nominal
- Flange Width [AGFF]
- 0.062 Nominal Inches
- Material [MATT]
- Plastic Polyamide Overall
- Overall Length [ABHP]
- 0.500 Inches Nominal
- Style Designator [STYL]
- Blank, External Flange One End
Similar Supply Items to 5365-01-591-3892
Freight Information 5365-01-591-3892
5365-01-591-3892 has freight characteristics managed by Australia.. 5365-01-591-3892 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
