5365-01-558-3605
Nonmetallic Bushing
5365015583605 015583605 91145A165
November 2023
2
Marketplace 5365-01-558-3605
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-558-3605 1+ Documents (More...)
5365-01-558-3605 RQST NE Related Documents 5365-01-558-3605 1+ Documents ( More... ) https//www.nsnlookup.com

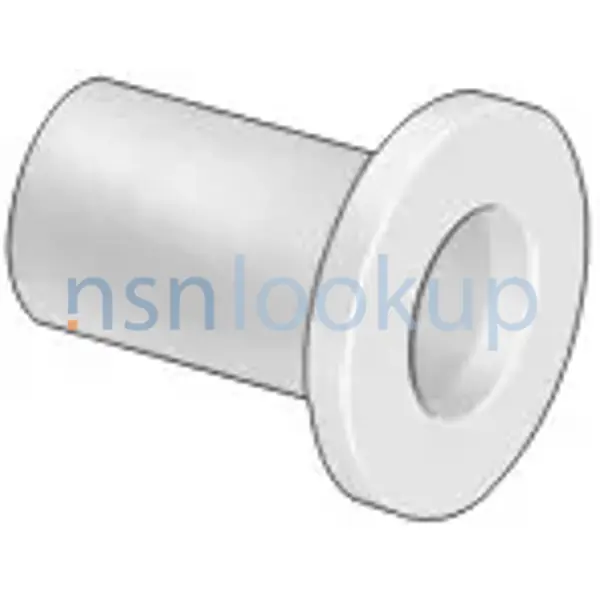

5365-01-558-3605 Photo 1/1 1.
Restrictions 5365-01-558-3605
5365-01-558-3605 is a Nonmetallic Bushing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-01-558-3605
- US Navy (N9BG)
- Effective Date:
- 1 Nov 2007
- Supplementary Collaborators:
- HD
Approved Sources 5365-01-558-3605
- Part Number
- Manufacturer
- Status
- 91145A165
- Manufacturer
- 3A054 - Mcmaster-Carr Supply Co (Active)
- Primary Buy
- Primary Buy
Datasheet 5365-01-558-3605
- Characteristic
- Specifications
- Material [MATT]
- Specifications
- Plastic
- Design Type [APGF]
- Single Centrally Located Hole
- Style Designator [STYL]
- Round Flanged
- Overall Length [ABHP]
- 0.250 Inches Nominal
- Flange Diameter [ABKK]
- 0.513 Inches Nominal
- Body Diameter [ABPM]
- 0.260 Inches Nominal
- Body Length [ADAQ]
- 0.250 Inches Nominal
- Center Hole Diameter [ADYT]
- 0.260 Inches Nominal
- Flange Height [AHGD]
- 0.062 Inches Nominal
- Nonmetallic Hardness Rating [AASF]
- 60.0 Nominal Shore Durometer D
DLA Procurement Analysis 5365-01-558-3605
Management Data 5365-01-558-3605
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Issue, Repair, Requisition Restriction Code:
- 00
- No Restriction
Similar Supply Items to 5365-01-558-3605
Freight Information 5365-01-558-3605
5365-01-558-3605 has freight characteristics managed by the Food and Drug Administration (FDA).It has a National Motor Freight Classification (NMFC) of 115620. A Sub NMFC of X. It has a NMFC Description of BUSHINGS NOI I/S. 5365-01-558-3605 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 59240 which rates the freight between FCL and LCL. 5365-01-558-3605 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 846 for ocean manifesting and military sealift. 5365-01-558-3605 is not classified as a special type of cargo when transported by water. 5365-01-558-3605 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5365-01-558-3605 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
