5365-01-495-5482

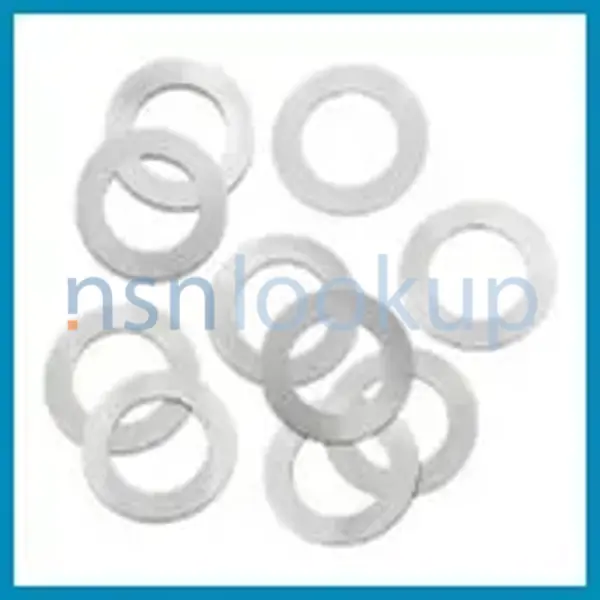

Ring Spacer
5365014955482 014955482 25193 3088A385
A circular-shaped item designed to maintain predetermined distance between assembled parts and/or for distributing pressure or preventing endwise movement between member parts. It has a solid cross-section and two flat parallel bearing surfaces. The distance between the bearing surfaces perpendicular to the axis of the centrally located hole shall not exceed 25 percent of the outside diameter. The diameter of the centrally located hole must exceed 75 percent of the outside diameter. Excludes laminated items. For items manufactured from impregnated graphite or lubricated nonmetallic materials, excluding felt or plastics, see GASKET. For items manufactured from lubricated plastics, see BEARING, WASHER, THRUST. For items manufactured from lubricated felt, see FELT, MECHANICAL, PREFORMED. Excludes DISK, VALVE; INSULATOR WASHER; and SHIM. See also SPACER, PLATE and SPACER, SLEEVE. View more Ring Spacer
May 2023
1
Marketplace 5365-01-495-5482
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-495-5482 5+ Documents (More...)
RQST NE Updated Every Day 5365-01-495 -25193 A-A -5365/us 5365-01-495-5482 Ring Spacer 5365014955482
-25193 A-A- https//www.nsnlookup.com /fsg-53/fsc-5365/us 5365-01-495-5482 Ring Spacer 5365014955482 001G
Ring 4320997955262 997955262,25193 -25193 A-A-2962 AA2962-2B-001G-25193 Pigment dispersed in a varnish
A-A-2962 AA2962 -2B-001G-25193 -25193 A-A-2962 AA2962 Ear Cushion 5965143093847 143093847,25193 in a
fsg-43/fsc-4320/uk 4320-99-795-5262 Wearing Ring 4320997955262 997955262,25193 TT-E-529TTE529-001G-25193
Account Upgrade 7643-01-403-4375Topographic Geospatial Products7643014034375 014034375M774X25193M774 25193
Restrictions 5365-01-495-5482
5365-01-495-5482 is a Ring Spacer that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 5365-01-495-5482
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5365-01-495-5482
- US Air Force (FLL5)
- Effective Date:
- 1 Mar 2002
Approved Sources 5365-01-495-5482
- Part Number
- Manufacturer
- Status
- 3088A385
- Manufacturer
- 39428 - Mcmaster-Carr Supply Co (Active)
- Primary Buy
- Primary Buy
- 3088A385
- 3A054 - Mcmaster-Carr Supply Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 25193
- 9C303 - Precision Steel Warehouse Inc (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 5365-01-495-5482
- Characteristic
- Specifications
- FIIG
- Specifications
- A07000
- Material [MATT]
- Steel Comp 1010
- Overall Thickness [ADUM]
- 0.020 Inches Nominal
- Inside Diameter [AARX]
- 0.875 Inches Nominal
- Outside Diameter [ABHE]
- 1.375 Inches Nominal
- Special Features [FEAT]
- Plain Finish
Management Data 5365-01-495-5482
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2002
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Similar Supply Items to 5365-01-495-5482
Freight Information 5365-01-495-5482
5365-01-495-5482 has freight characteristics.. 5365-01-495-5482 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
