5365-01-494-9291
Magnetic Machine Thread Plug
5365014949291 014949291 23070143 3307881.00
A threaded machine thread plug with integral magnet in the body usually used in lubricating or hydraulic systems. View more Magnetic Machine Thread Plug
November 2023
2
Marketplace 5365-01-494-9291
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-494-9291 1+ Documents (More...)
BUY NE FedMall Updated Every Day 5365-01-494-9291 RQST NE Updated Every Day 5365-01-494-9291 RQST
Updated Every Day 5365-01-494-9291 RQST NE Related Documents 5365-01-494-9291 1+ Documents ( More...
Restrictions 5365-01-494-9291
5365-01-494-9291 is a Magnetic Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item contains Silver.
Import and Export 5365-01-494-9291
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 5365-01-494-9291
- US Navy (N9BG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
Approved Sources 5365-01-494-9291
- Part Number
- Manufacturer
- Status
- 23070143
- Manufacturer
- 63005 - Rolls-Royce Corporation (Active)
- Source Control
- Source Control
- 3307881.00
- 82829 - Allen Aircraft Products Inc (Active)
- Primary Buy
- Primary Buy
- 3307881.00
- 27541 - Transaero, Inc. (Active)
- Secondary Buy
- Secondary Buy
Datasheet 5365-01-494-9291
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Connection Style [AHNC]
- Flared

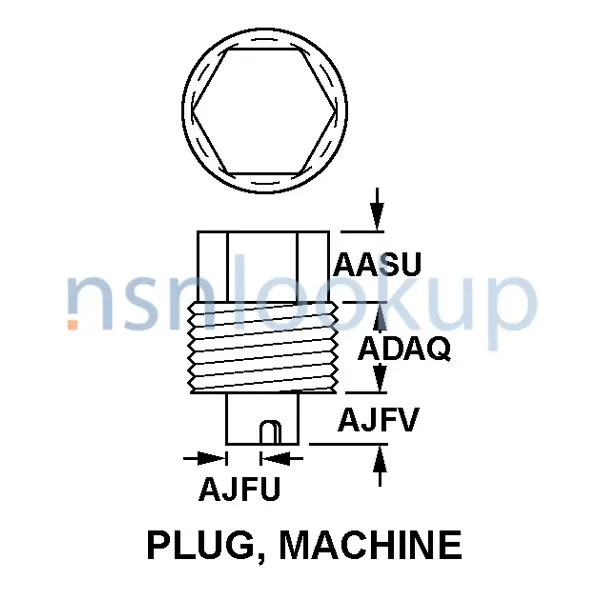

- Flange Diameter [ABKK]
- 0.871 Inches Minimum And 0.878 Inches Maximum
- Head Height [AASU]
- 0.245 Inches Minimum And 0.255 Inches Maximum
- Material [MATT]
- Aluminum Alloy 2024 Body
- Magnet Lift Rating [CQSD]
- 2.9 Grams
- Magnet Projection Length [AJFV]
- 0.185 Inches Nominal
- Material Document And Classification [MDCL]
- Ams2468 Assn Std Single Material Response Body
- Precious Material [PRMT]
- Silver
- Precious Material And Location [PMLC]
- Pins Silver
- Special Features [FEAT]
- Included Pins, Brass 360 Alloy, Silver Plate Qq-S-365
- Style Designator [STYL]
- Plug, Magnetic
Weapon Systems (WSDC) 5365-01-494-9291
DLA Procurement Analysis 5365-01-494-9291
Management Data 5365-01-494-9291
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5365-01-494-9291
Freight Information 5365-01-494-9291
5365-01-494-9291 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 115620. A Sub NMFC of X. It has a NMFC Description of BUSHINGS NOI I/S. 5365-01-494-9291 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 59240 which rates the freight between FCL and LCL. 5365-01-494-9291 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5365-01-494-9291 is not classified as a special type of cargo when transported by water. 5365-01-494-9291 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5365-01-494-9291
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 5365-01-494-9291 5 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE4A723P8306
- 28 Mar 2023
- Subscribe
- 20
- Subscribe
- Subscribe
- Subscribe
- SPE4A721PE503
- 22 Sep 2021
- Subscribe
- 6
- Subscribe
- Subscribe
- Subscribe
- SPE4A418V0940
- 30 Oct 2017
- Subscribe
- 19
- Subscribe
- Subscribe
- Subscribe
- SPE4A414V2199P00002
- 04 Nov 2013
- Subscribe
- 39
- Subscribe
- Subscribe
- Subscribe
- SPE4A413V5843
- 13 Mar 2013
- Subscribe
- 44
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 5365-01-494-9291 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
