5365-01-480-2848
Machine Thread Plug
5365014802848 014802848 124-5563777 PC 44
An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED. View more Machine Thread Plug
May 2023
1
Marketplace 5365-01-480-2848
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-480-2848 3+ Documents (More...)
United States (US) 4. 5365-01-480-2848 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 5365-01-480-2848 RQST NE Updated Every Day 5365-01-480-2848 RQST
Machine Thread Plug 5365014802848 014802848 a day Upgrade your Account Upgrade 5365-01-480-2848Machine
Thread Plug5365014802848 014802848 124-5563777 PC RQST NE Updated Every Day 5365-01-480-2848 RQST https
Machine Thread Plug 5365014802848 014802848 53/fsc-5310/us 5310-01-475-0375 Flat Washer 5310014750375
Restrictions 5365-01-480-2848
5365-01-480-2848 is a Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-01-480-2848
- US Navy (N9BG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- N9GD
- Supplementary Collaborators:
- HD
Approved Sources 5365-01-480-2848
- Part Number
- Manufacturer
- Status
- 124-5563777 PC 44
- Manufacturer
- 53711 - Naval Sea Systems Command (Active)
- Primary Buy
- Primary Buy
Datasheet 5365-01-480-2848
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Material [MATT]
- Brass Overall

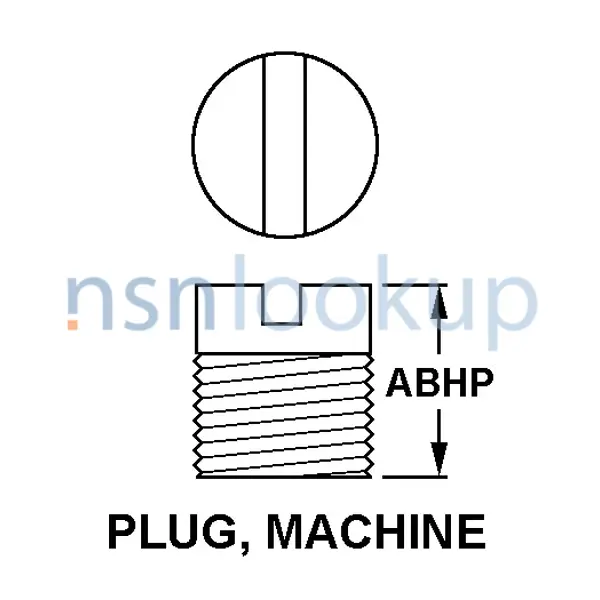

- Style Designator [STYL]
- Plug, Machine
- Overall Length [ABHP]
- 0.625 Inches Nominal
- Thread Series Designator [THSD]
- Unc External
- Thread Quantity Per Inch [CMLP]
- 10 External
- Thread Class [AAJD]
- 2A External
- Thread Length [AASA]
- 0.750 Inches Nominal External
- Special Features [FEAT]
- Plug Is 3/4 In. Wide,With Slot In Center 3/32 In. Wide
- Part Name Assigned By Controlling Agency [CXCY]
- Flush Plug
Weapon Systems (WSDC) 5365-01-480-2848
DLA Procurement Analysis 5365-01-480-2848
Management Data 5365-01-480-2848
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 5365-01-480-2848
Freight Information 5365-01-480-2848
5365-01-480-2848 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 115620. A Sub NMFC of X. It has a NMFC Description of BUSHINGS NOI I/S. 5365-01-480-2848 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 59240 which rates the freight between FCL and LCL. 5365-01-480-2848 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5365-01-480-2848 is not classified as a special type of cargo when transported by water. 5365-01-480-2848 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5365-01-480-2848 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
