5365-01-310-7619
Nonmetallic Bushing
5365013107619 013107619 10288682-9 10288682-009
An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC. View more Nonmetallic Bushing
August 2023
10
Marketplace 5365-01-310-7619
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-310-7619 2+ Documents (More...)
RQST NE Updated Every Day 5365-01-310-7619 RQST Updated Every Day 5365-01-310-7619 RQST NE Related Documents
5365-01-310-7619 2+ Documents ( More... ) https//www.nsnlookup.com /fsg-53/fsc-5365/us 5365-01-310-7619
Nonmetallic Bushing 5365013107619 013107619 $1 a day Upgrade your Account Upgrade 5365-01-310-7619Nonmetallic
Bushing5365013107619 013107619 10288682 -9 10288682-009 An item, made of rubber or plastic, usually
Restrictions 5365-01-310-7619
5365-01-310-7619 is a Nonmetallic Bushing that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-01-310-7619
- US Army (A919)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- A180
- Supplementary Receivers:
- BD
- US Marine Corps (MC41)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- MC04
- Germany (ZG01)
- Effective Date:
- 1 Mar 1994
- Greece (ZU01)
- Effective Date:
- 1 May 2008
Approved Sources 5365-01-310-7619
- Part Number
- Manufacturer
- Status
- 10288682-9
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 10288682-9
- 3B150 - Raytheon Company (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 10288682-009
- 18876 - Us Army Aviation And Missile Command (Active)
- Secondary Buy
- Secondary Buy
- 10288682-9
- 49956 - Raytheon Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 5365-01-310-7619
- Characteristic
- Specifications
- FIIG
- Specifications
- A535J0

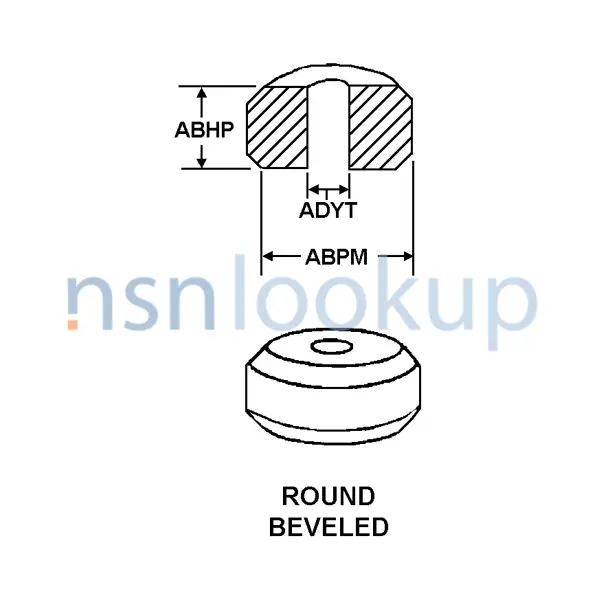

- Body Diameter [ABPM]
- 0.750 Inches Nominal
- Center Hole Diameter [ADYT]
- 0.219 Inches Nominal
- Design Type [APGF]
- Single Centrally Located Hole
- Material [MATT]
- Rubber Chloroprene Class Cr
- Material Document And Classification [MDCL]
- Ams 3209 Assn Std Single Material Response
- Overall Length [ABHP]
- 0.302 Inches Nominal
- Style Designator [STYL]
- Round Beveled
Weapon Systems (WSDC) 5365-01-310-7619
DLA Procurement Analysis 5365-01-310-7619
Management Data 5365-01-310-7619
Army
- Materiel Category and Inventory Manager:
- T
- Industrial Supplies (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 5365-01-310-7619
Freight Information 5365-01-310-7619
5365-01-310-7619 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 115620. A Sub NMFC of X. It has a NMFC Description of BUSHINGS NOI I/S. 5365-01-310-7619 is rated as class 65 when transported by Less-Than Truckload (LTL) freight. 5365-01-310-7619 is rated as class 65 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 59240 which rates the freight between FCL and LCL. 5365-01-310-7619 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5365-01-310-7619 is not classified as a special type of cargo when transported by water. 5365-01-310-7619 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5365-01-310-7619
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Electrical Instrument
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- Type I, shelf life
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Contracting Technical Data File (CTDF) 5365-01-310-7619 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- K
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
