5365-01-227-7227
Machine Thread Plug
5365012277227 012277227 320485-1
An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED. View more Machine Thread Plug
May 2023
5
Marketplace 5365-01-227-7227
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-227-7227 2+ Documents (More...)
Updated Every Day 5365-01-227-7227 RQST NE Related Documents 5365-01-227-7227 2+ Documents ( More...
BUY NE FedMall Updated Every Day 5365-01-227-7227 RQST NE Updated Every Day 5365-01-227-7227 RQST Updated
Machine Thread Plug 5365012277227 012277227 $1 a day Upgrade your Account Upgrade 5365-01-227-7227Machine
Thread Plug5365012277227 012277227 320485-1 www.nsnlookup.com /fsg-53/fsc-5365/us 5365-01-227-7227 Machine
Restrictions 5365-01-227-7227
5365-01-227-7227 is a Machine Thread Plug that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-01-227-7227
- US Air Force (FXGG)
- Effective Date:
- 1 May 2005
- Former MOE Rule:
- FXCX
Approved Sources 5365-01-227-7227
- Part Number
- Manufacturer
- Status
- 320485-1
- Manufacturer
- 82106 - Parker-Hannifin Corporation (Active)
- Primary Buy
- Primary Buy
Datasheet 5365-01-227-7227
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- Material [MATT]
- Aluminum Alloy 7075 Overall
- Material Document And Classification [MDCL]
- Qq-A-225/9 Fed Spec Single Material Response Overall
- Surface Treatment [SFTT]
- Anodize Overall
- Surface Treatment Document And Classification [STDC]
- Mil-I-6866 Mil Spec Single Treatment Response Overall

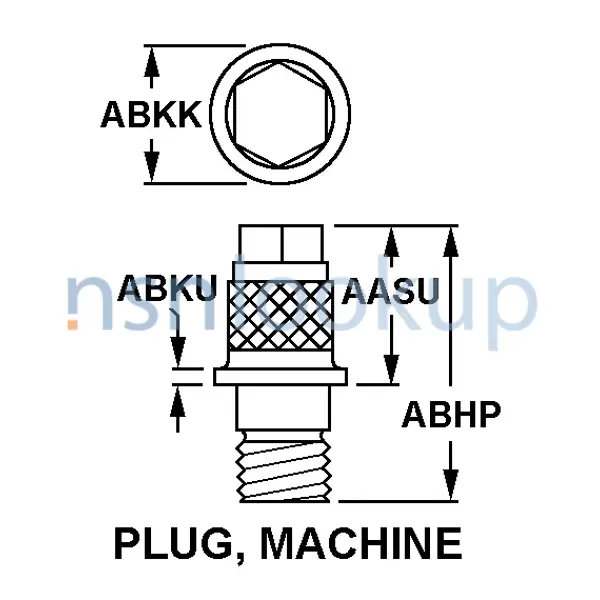

- Style Designator [STYL]
- Plug, Machine
- Head Height [AASU]
- 0.780 Inches Nominal
- Overall Length [ABHP]
- 2.000 Inches Nominal
- Flange Diameter [ABKK]
- 0.8125 Inches Nominal
- Flange Thickness [ABKU]
- 0.500 Inches Nominal
- Nominal Thread Size [CQJX]
- 0.8125 Inches External
- Thread Quantity Per Inch [CMLP]
- 20 External
- Thread Class [AAJD]
- 3A External
- Thread Direction [AAJF]
- Right-Hand External
- Thread Length [AASA]
- 0.500 Inches Nominal External
- Fsc Application Data [ZZZV]
- Aircraft Hydraulic Vacuum Deicing Systems
DLA Procurement Analysis 5365-01-227-7227
Management Data 5365-01-227-7227
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- HS
- AIRCRAFT HYDRAULIC SYSTEMS AND COMPONENTS
- Price Validation Code:
- E
- The current standard price is an estimated price.
Estimated Price challenges are allowed but follow procedures in para 60.b. (3) of section L of this manual.
This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Similar Supply Items to 5365-01-227-7227
Freight Information 5365-01-227-7227
5365-01-227-7227 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 133300. A Sub NMFC of Z. It has a NMFC Description of MACHINERY/MACHINES NOI. 5365-01-227-7227 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 5365-01-227-7227 is rated as class 85 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 63220 which rates the freight between FCL and LCL. 5365-01-227-7227 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5365-01-227-7227 is not classified as a special type of cargo when transported by water. 5365-01-227-7227 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 5365-01-227-7227 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
