5365-01-171-7568
Magnetic Machine Thread Plug
5365011717568 011717568 4058T96P02 A-4757 10158679
A threaded machine thread plug with integral magnet in the body usually used in lubricating or hydraulic systems. View more Magnetic Machine Thread Plug
November 2023
15
Product Information 5365-01-171-7568

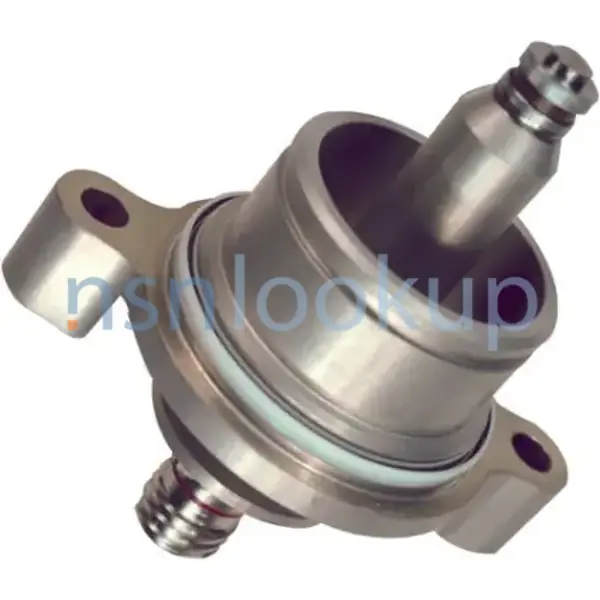

Chip Detector
Used on Boeing F/A-18E/F “Super Hornet” Strike Fighter
Eaton’s chip detector is a sensor that detects ferrous wear particles in the F/A-18 engine lube oil system.
Marketplace 5365-01-171-7568
Request a Quotation from participating marketplace vendors
Related Documents 5365-01-171-7568 1+ Documents (More...)
Marketplace 5365-01-171-7568 Need Help?
RQST NE Updated Every Day 5365-01-171-7568 RQST Updated Every Day 5365-01-171-7568 RQST NE Related
Restrictions 5365-01-171-7568
5365-01-171-7568 is a Magnetic Machine Thread Plug that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. This item has been confirmed as a Critical Munitions List Item or a Sensitive Commerce Control List Item and cannot be in the possession of any party anywhere in the World who is not an authorized NATO Government. Any other possessor of this item should mutilate it now as possession violates international and local laws. This item is a US Munitions List Item and must be mutilated to scrap. This item is not suspected to be hazardous. This item does not contain a precious metal.
End Users 5365-01-171-7568
- Finland (WF01)
- Effective Date:
- 1 Dec 2009
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 2003
Approved Sources 5365-01-171-7568
- Part Number
- Manufacturer
- Status
- 4058T96P02
- Manufacturer
- 99207 - General Electric Company (Active)
- Source Control
- Source Control
- A-4757
- 97484 - Eaton Aerospace Llc (Active)
- Primary Buy
- Primary Buy
- 10158679
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 5365-01-171-7568
- Characteristic
- Specifications
- FIIG
- Specifications
- A208A0
- End Item Identification [AGAV]
- Engine Model F-104
- Criticality Code Justification [CRTL]
- Agav
DLA Procurement Analysis 5365-01-171-7568
NATO Stock Numbers Related to 5365-01-171-7568
Freight Information 5365-01-171-7568
5365-01-171-7568 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 095850. A Sub NMFC of X. It has a NMFC Description of MAGNETS NOI MAGNETIZED IN BBL/BX. 5365-01-171-7568 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. 5365-01-171-7568 is rated as class 77.5 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 50170 which rates the freight between FCL and LCL. 5365-01-171-7568 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 5365-01-171-7568 is classified as a Magnetic Material when transported by water. 5365-01-171-7568 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 5365-01-171-7568
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- Validated Correction
- Storage Environment
- Heated General Purpose – Heated 40 F and above
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- 3.0" H x 2.0" W x 2.0" L
- --
- --
- --
- Any Suitable Process
- 3.0" H x 2.0" W x 2.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- 50
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
